Grade

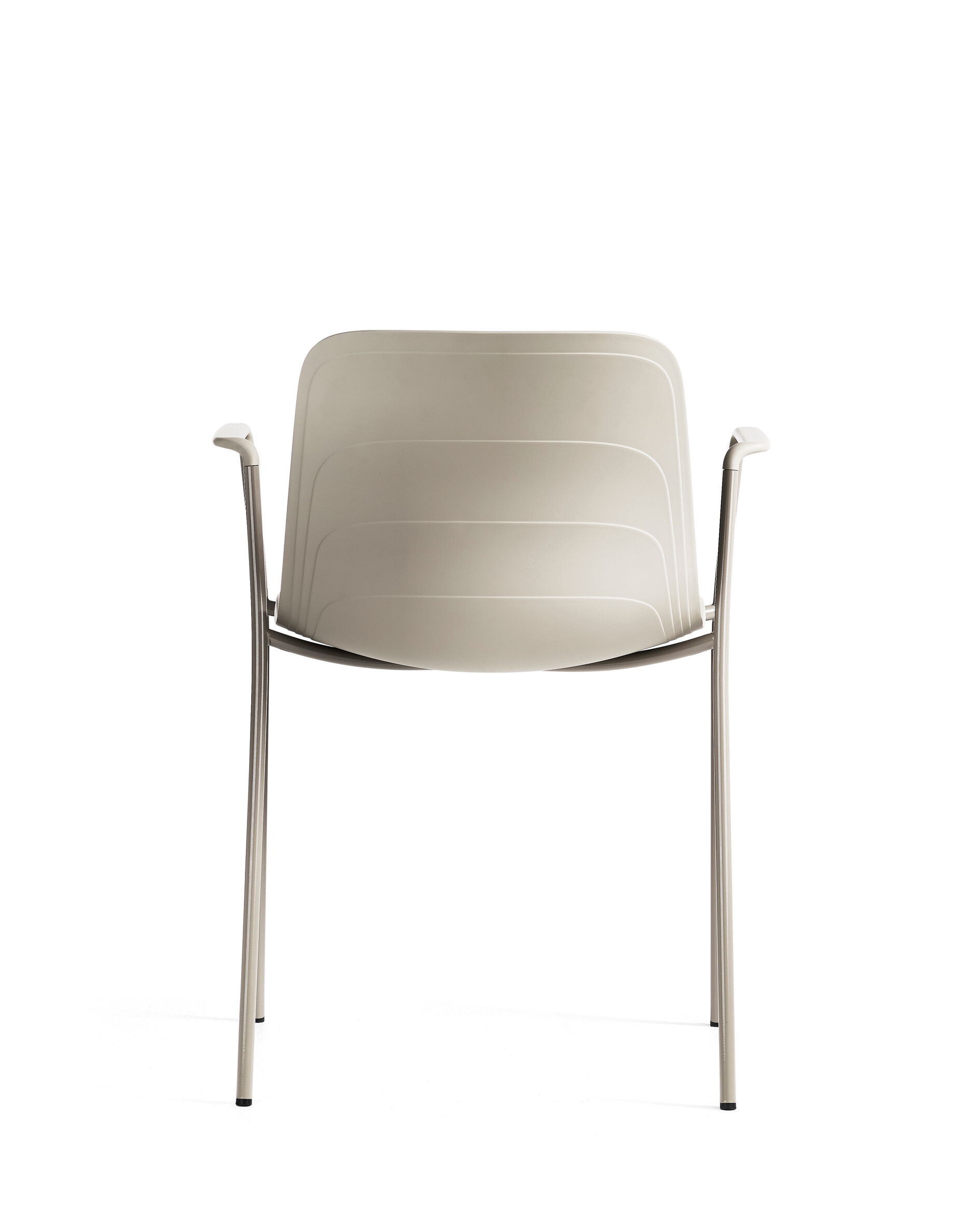

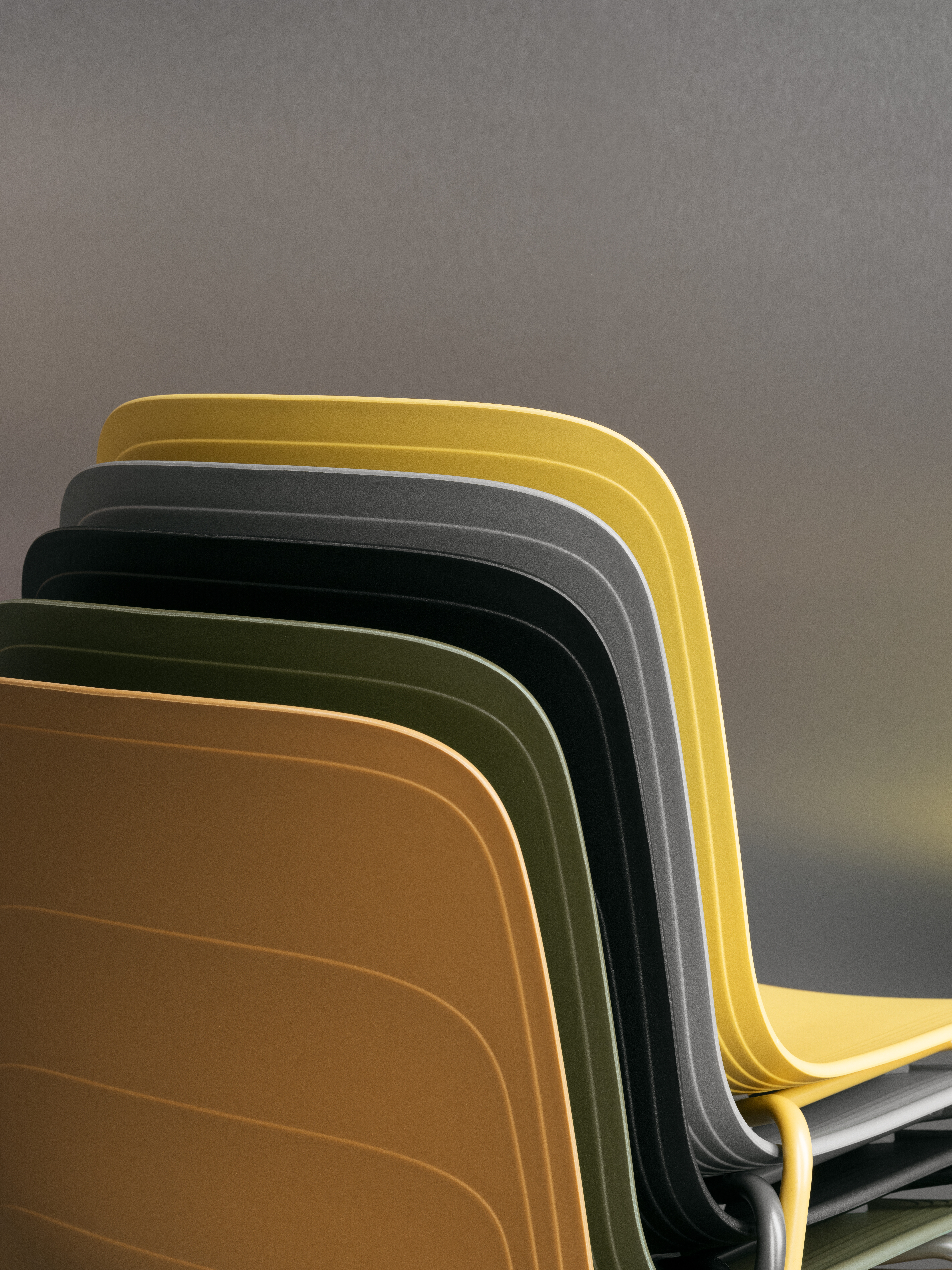

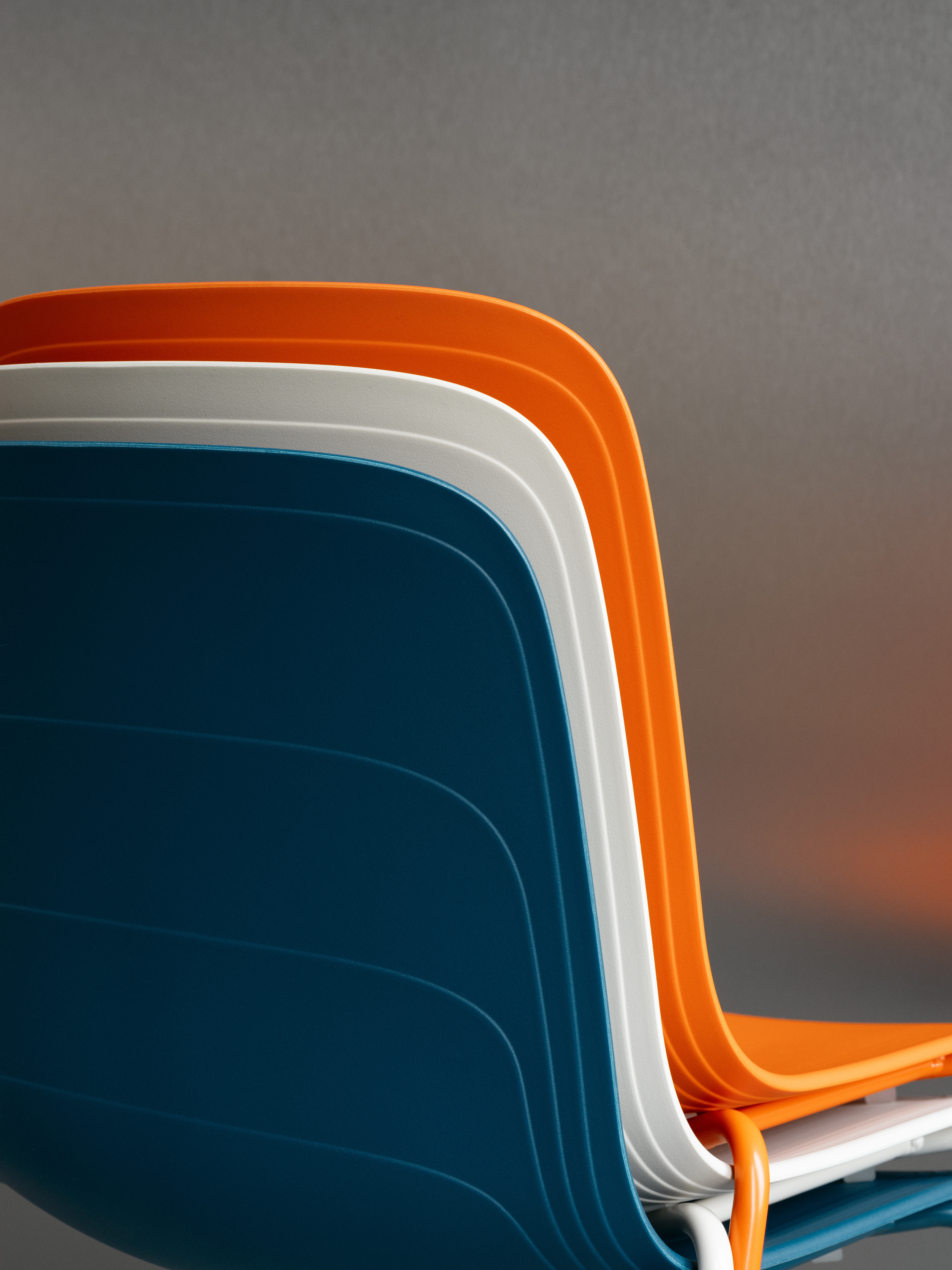

Grade brings a new level of design sophistication to the plastic stacking shell chair category with its subtly reliefed, recyclable, polypropylene shell and choice of materials and color schemes. Five levels or “grades” of relief are molded into the back of Grade, providing a visual rhythm to the chair’s form.

Variants

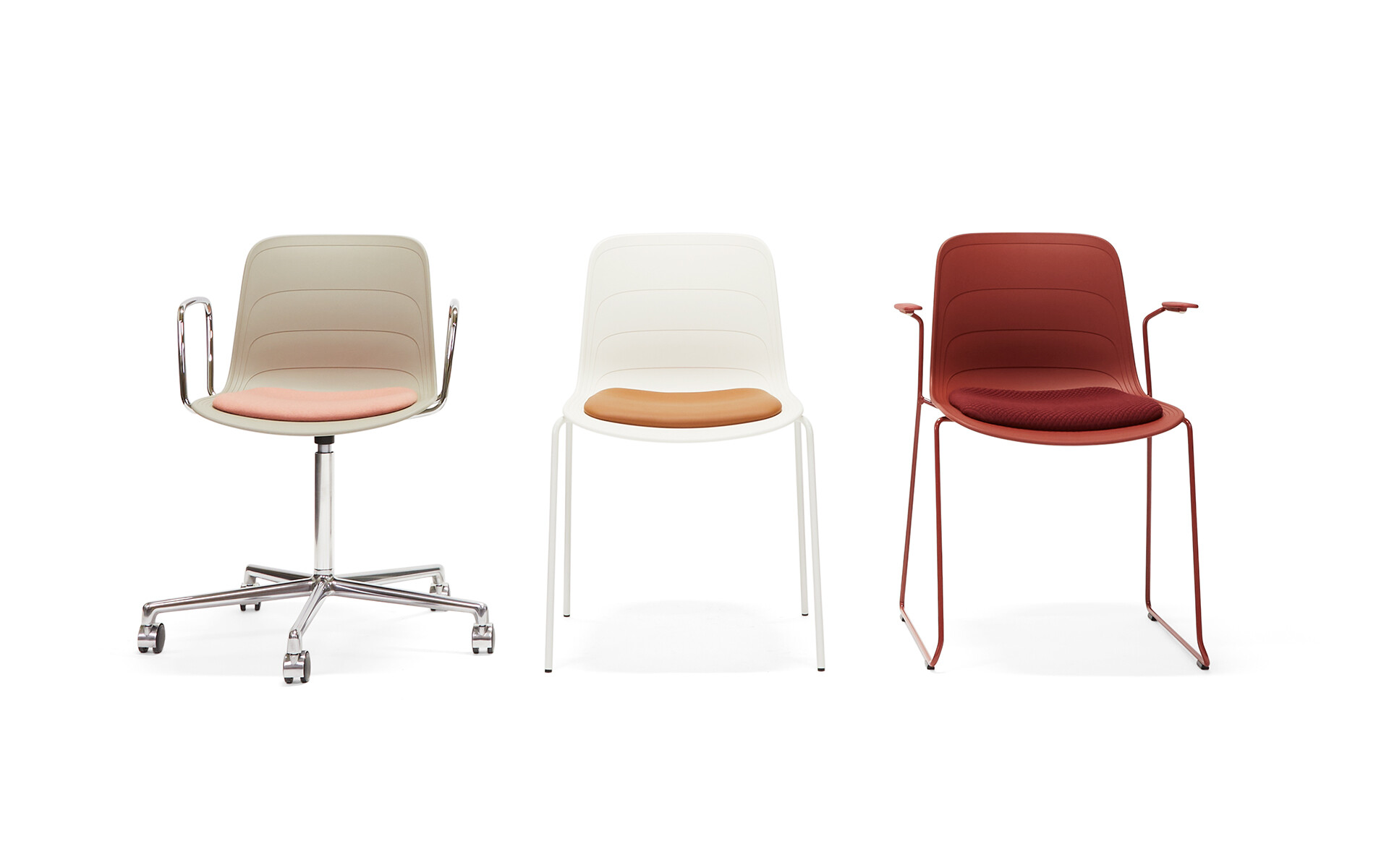

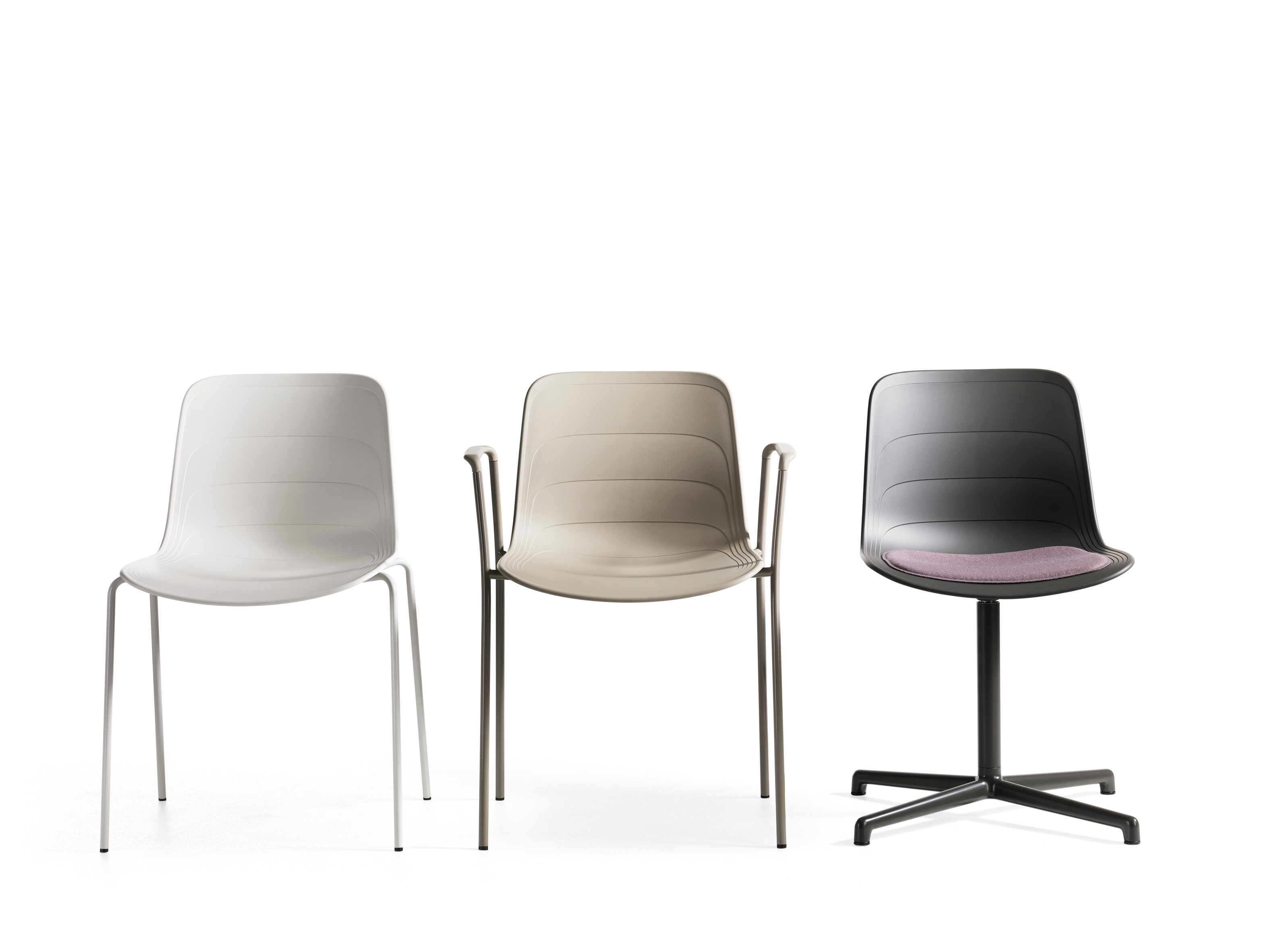

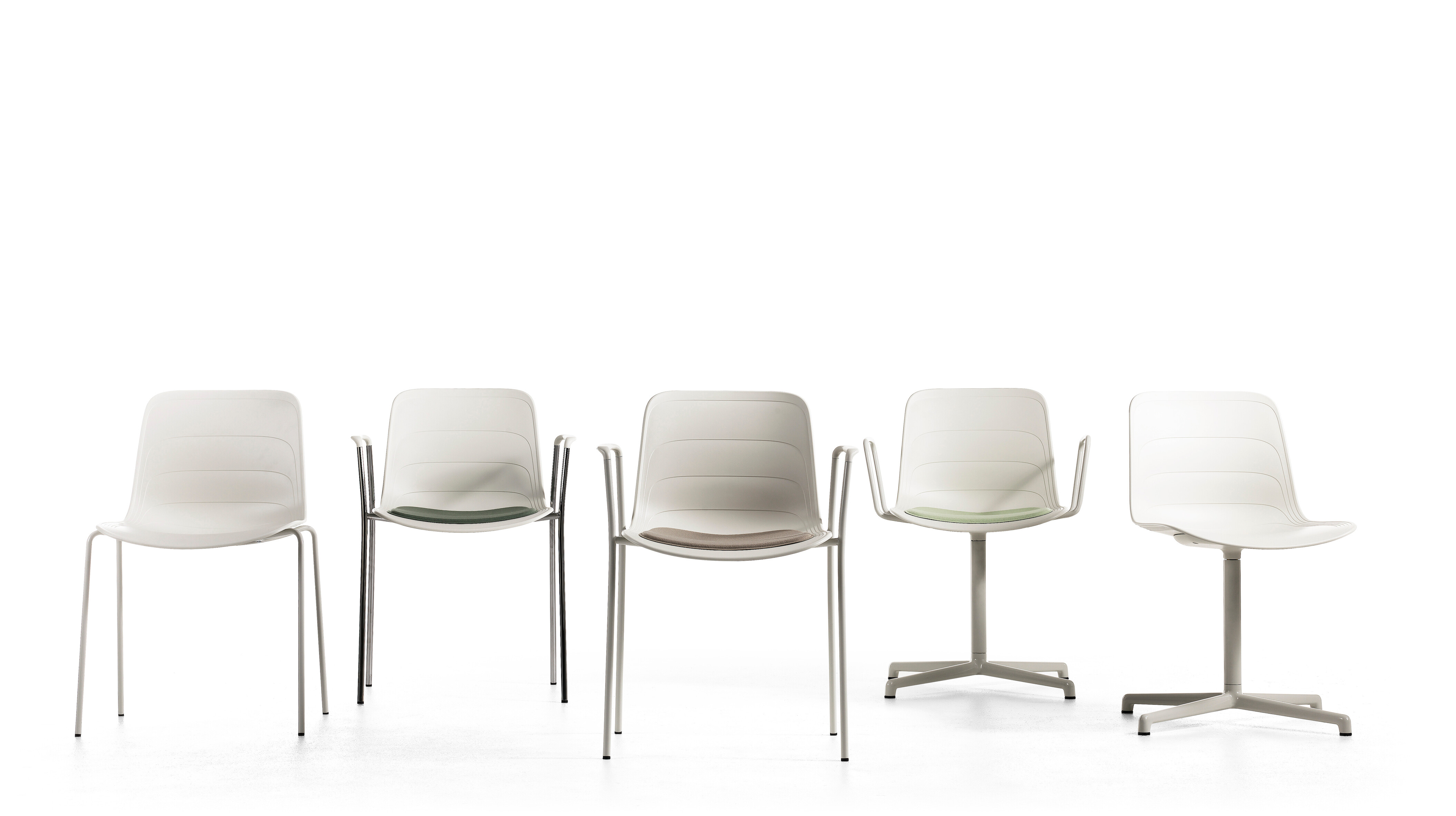

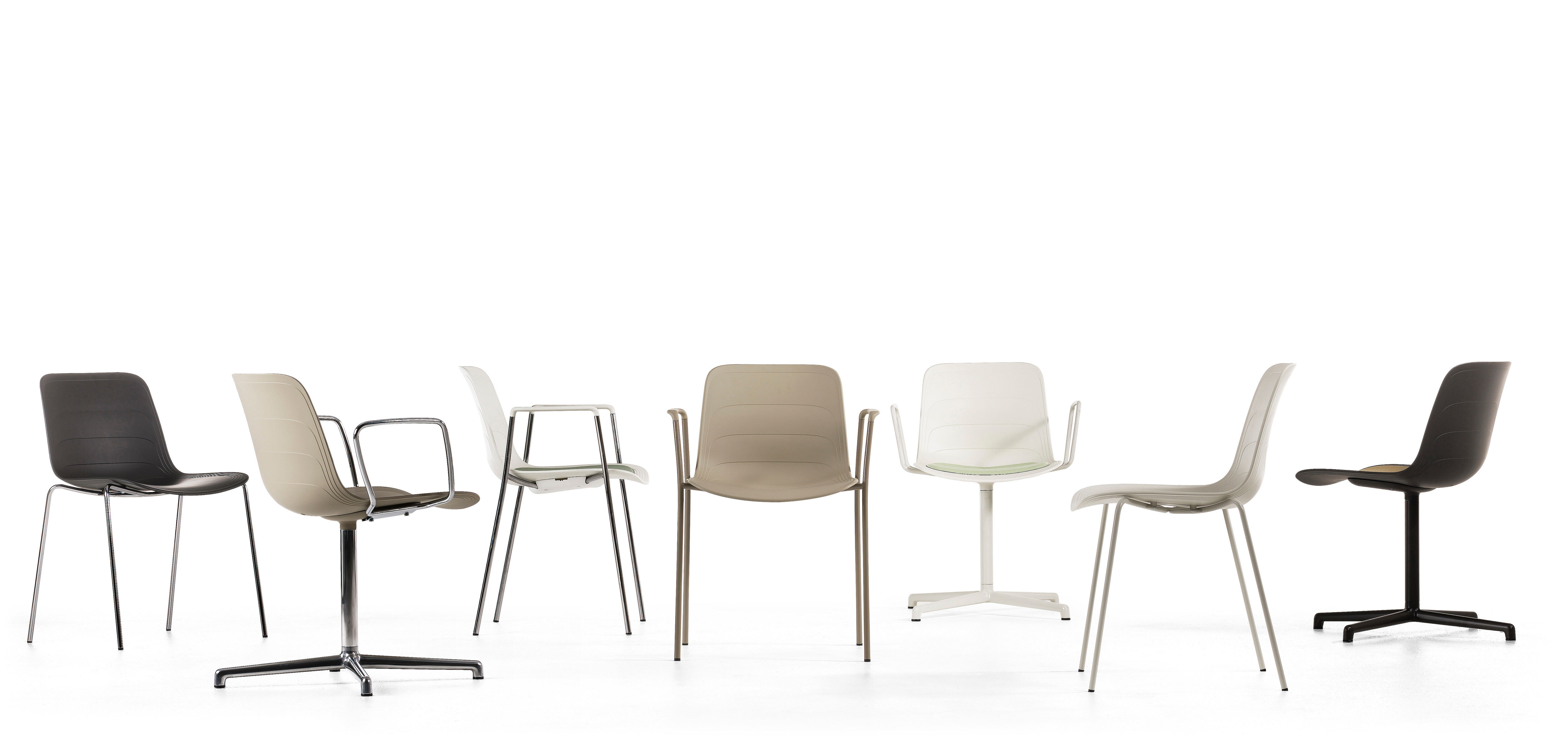

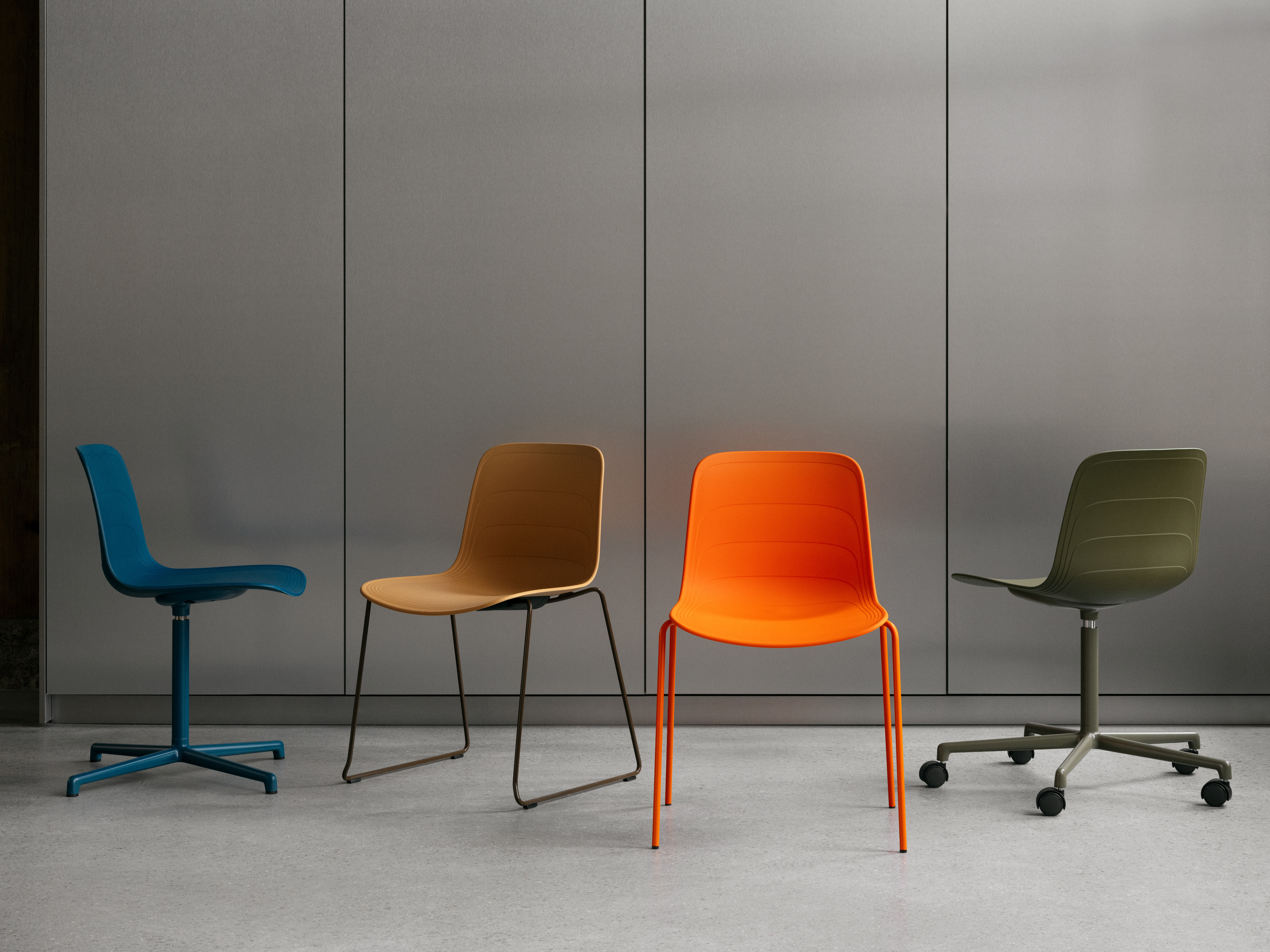

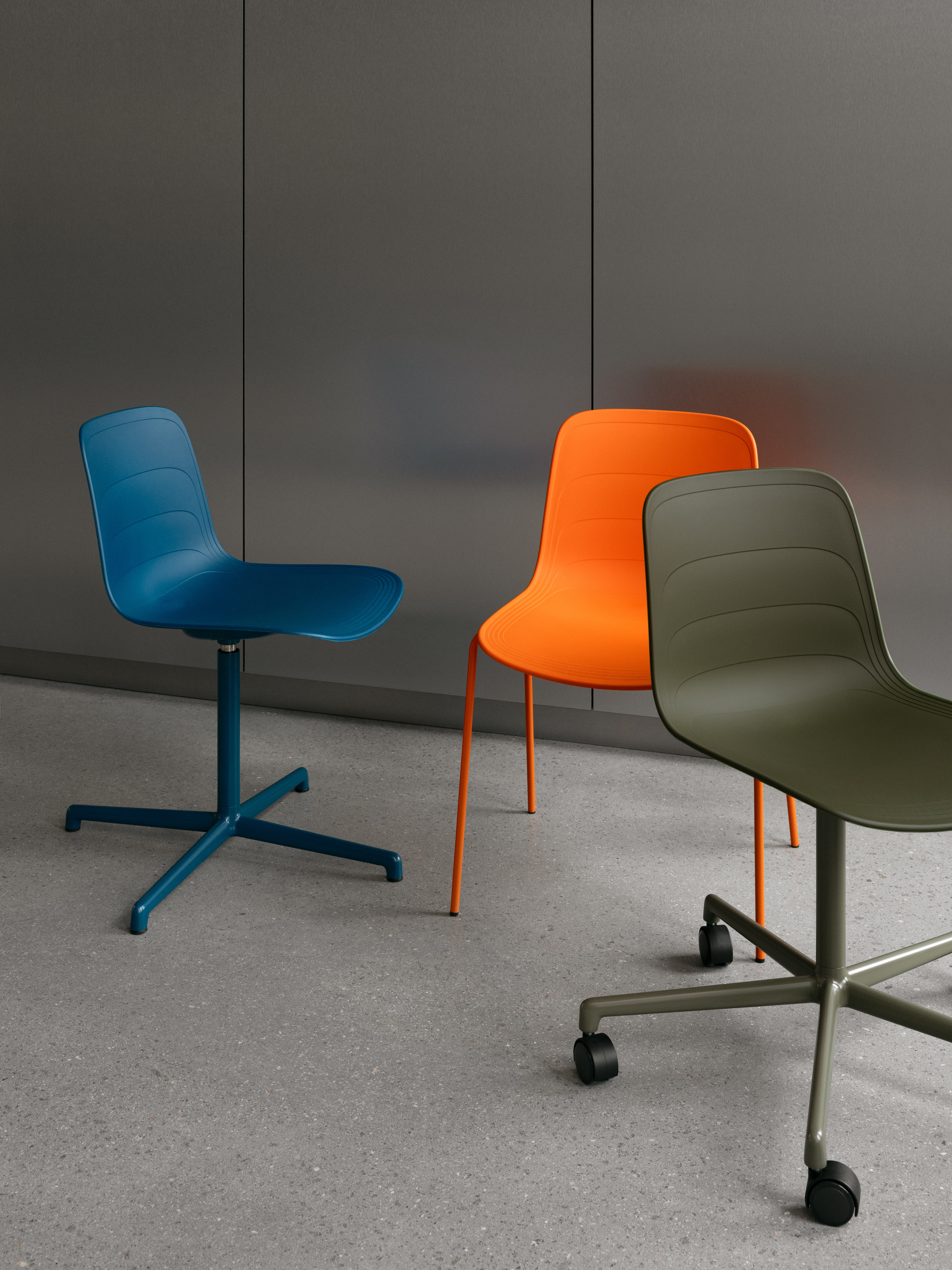

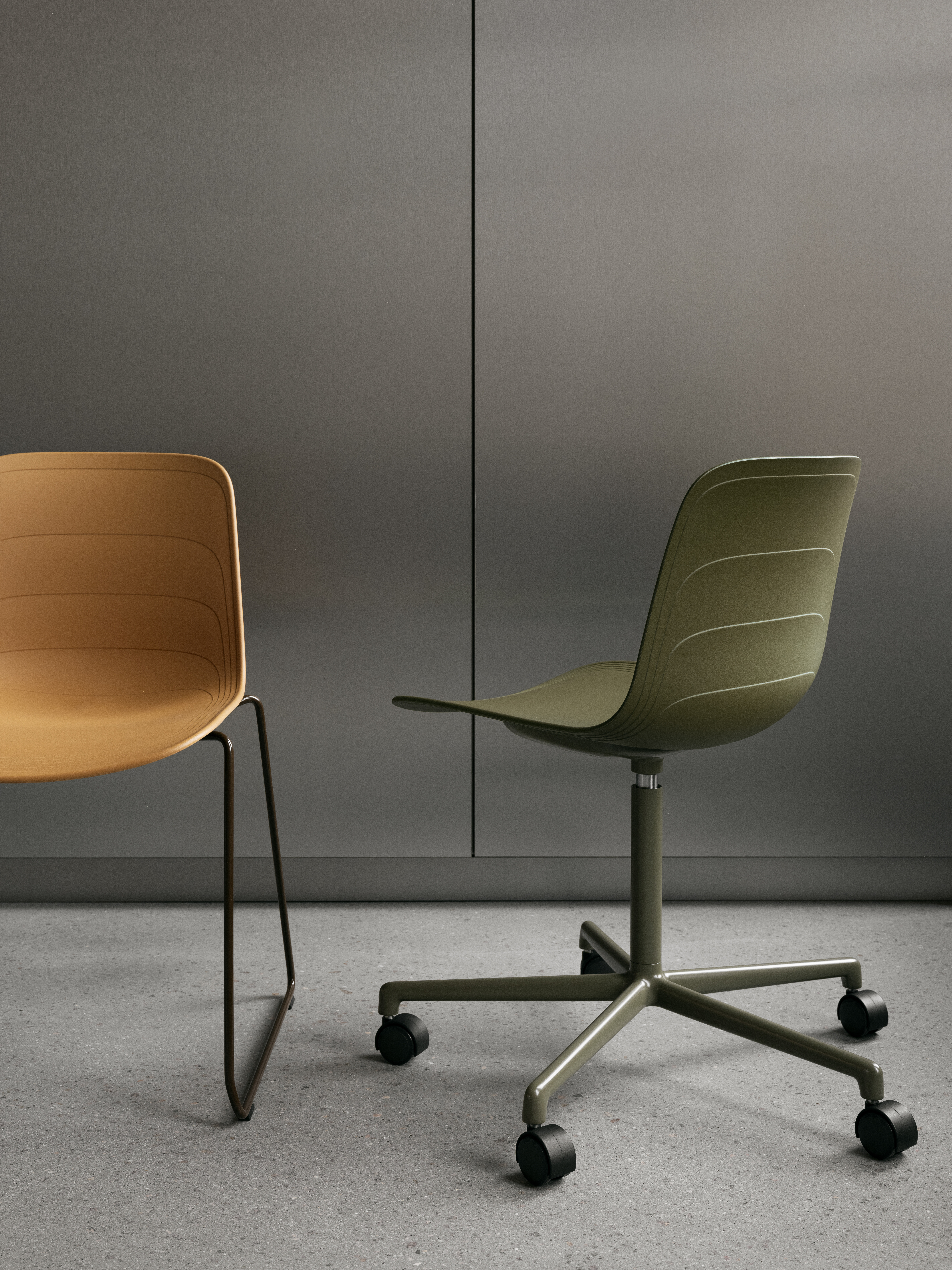

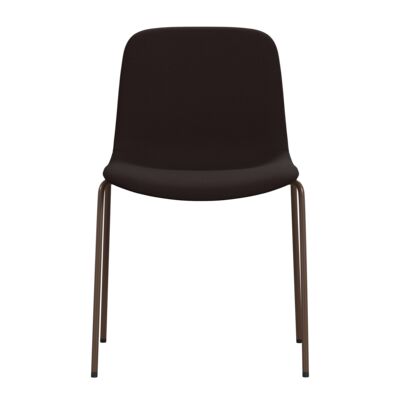

Grade chair and armchair comes with a seat shell in 5 different colors, and has a steel frame in chrome or powder coat matching the shell color. In addition, Grade is also available with a sled base, a 4- or 5-feet swivel base alternatively with wooden legs. The seat shell is offered with upholstered seat or fully upholstered.

Some pictures may show products in a non-standard size, powder coat or fabric which can attract additional costs.

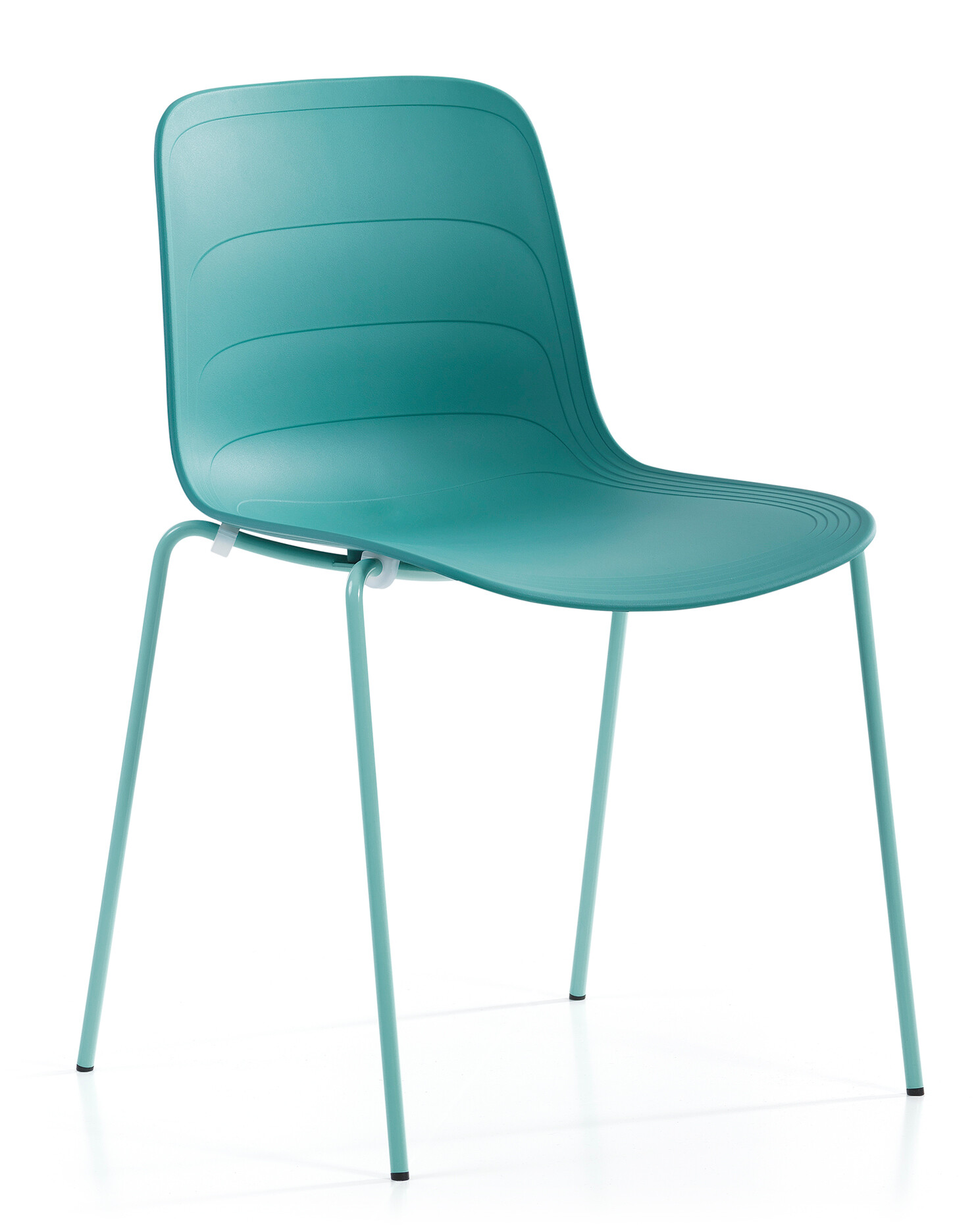

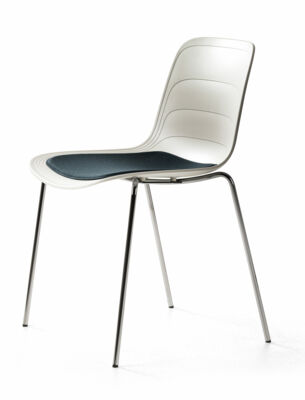

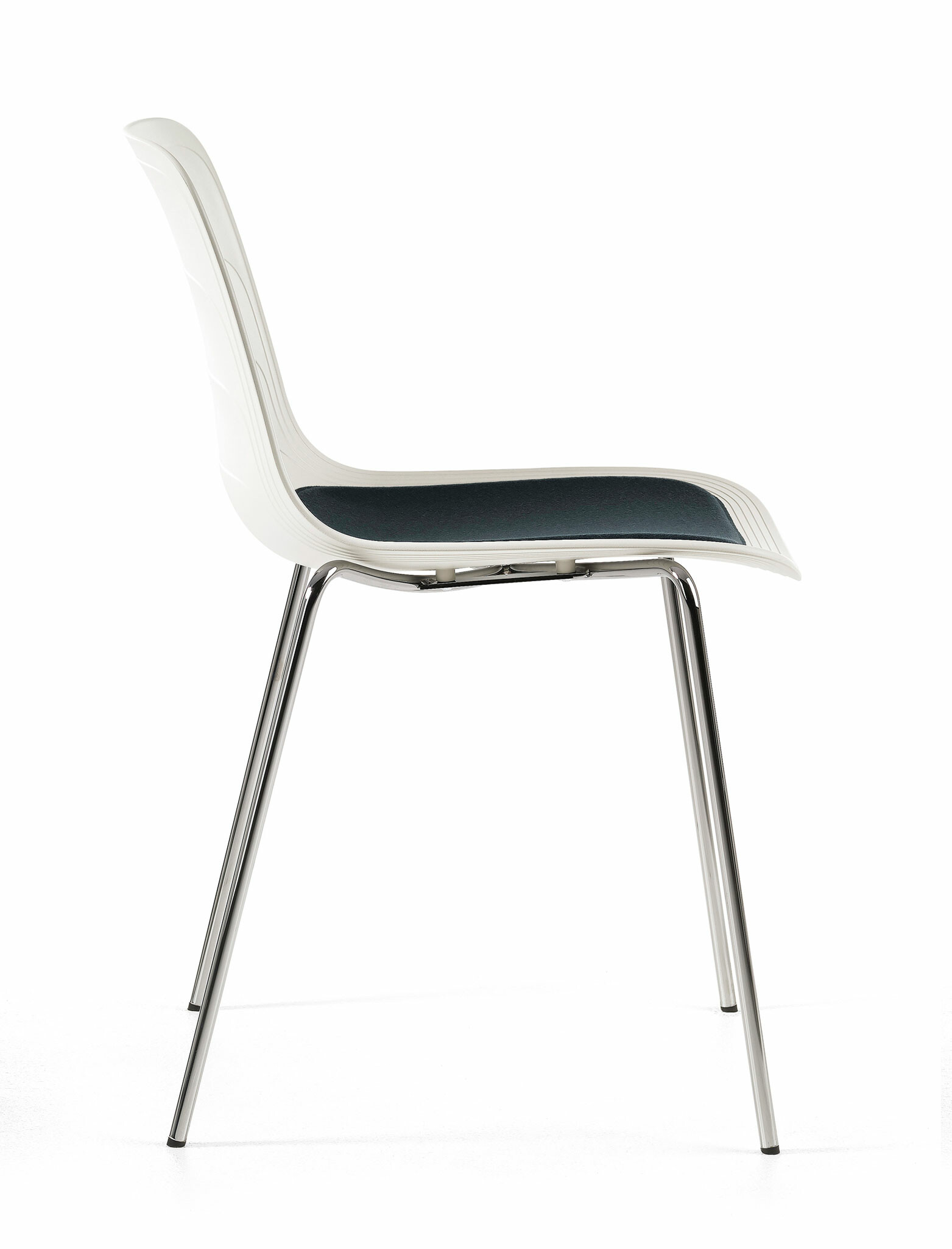

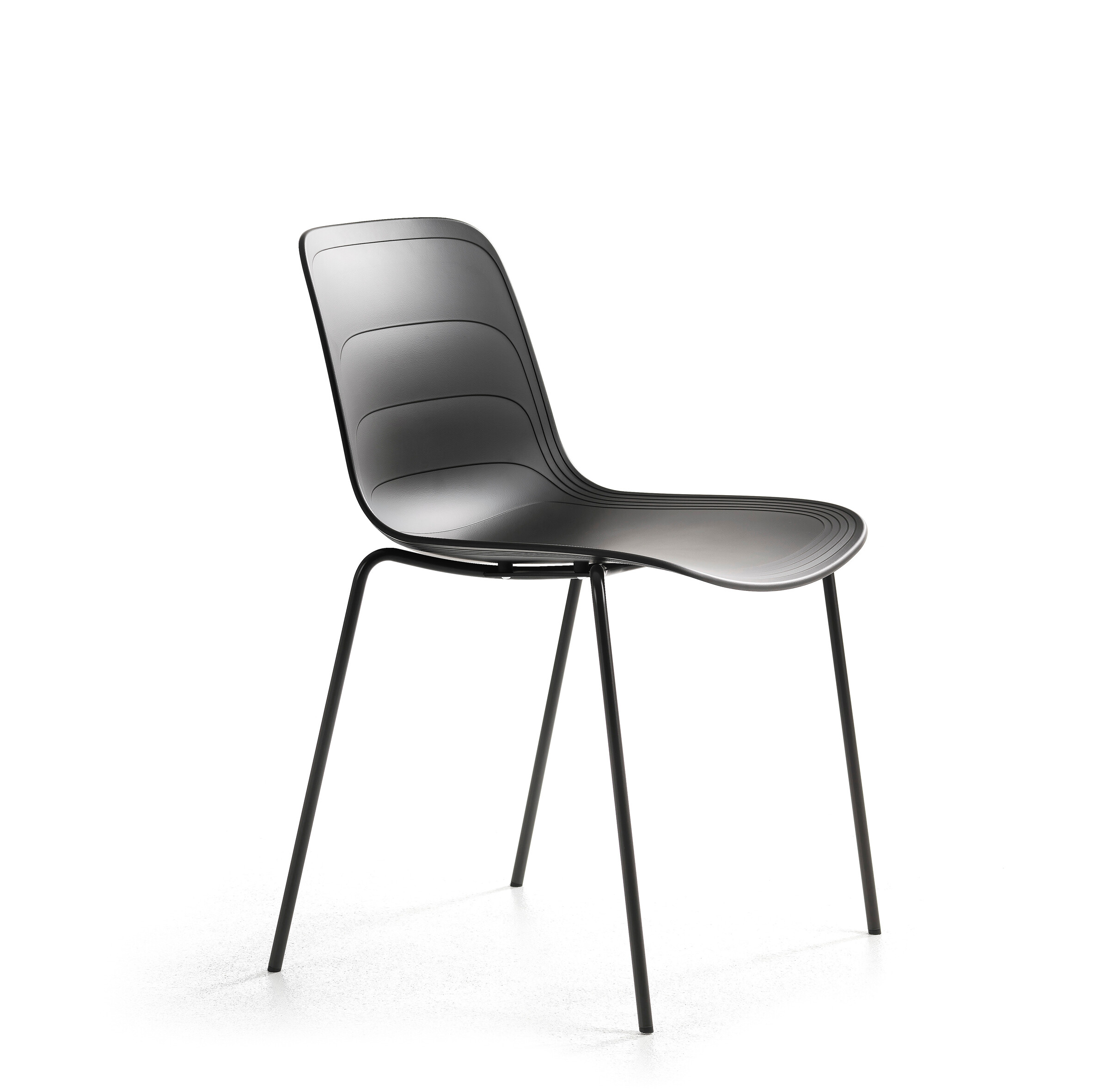

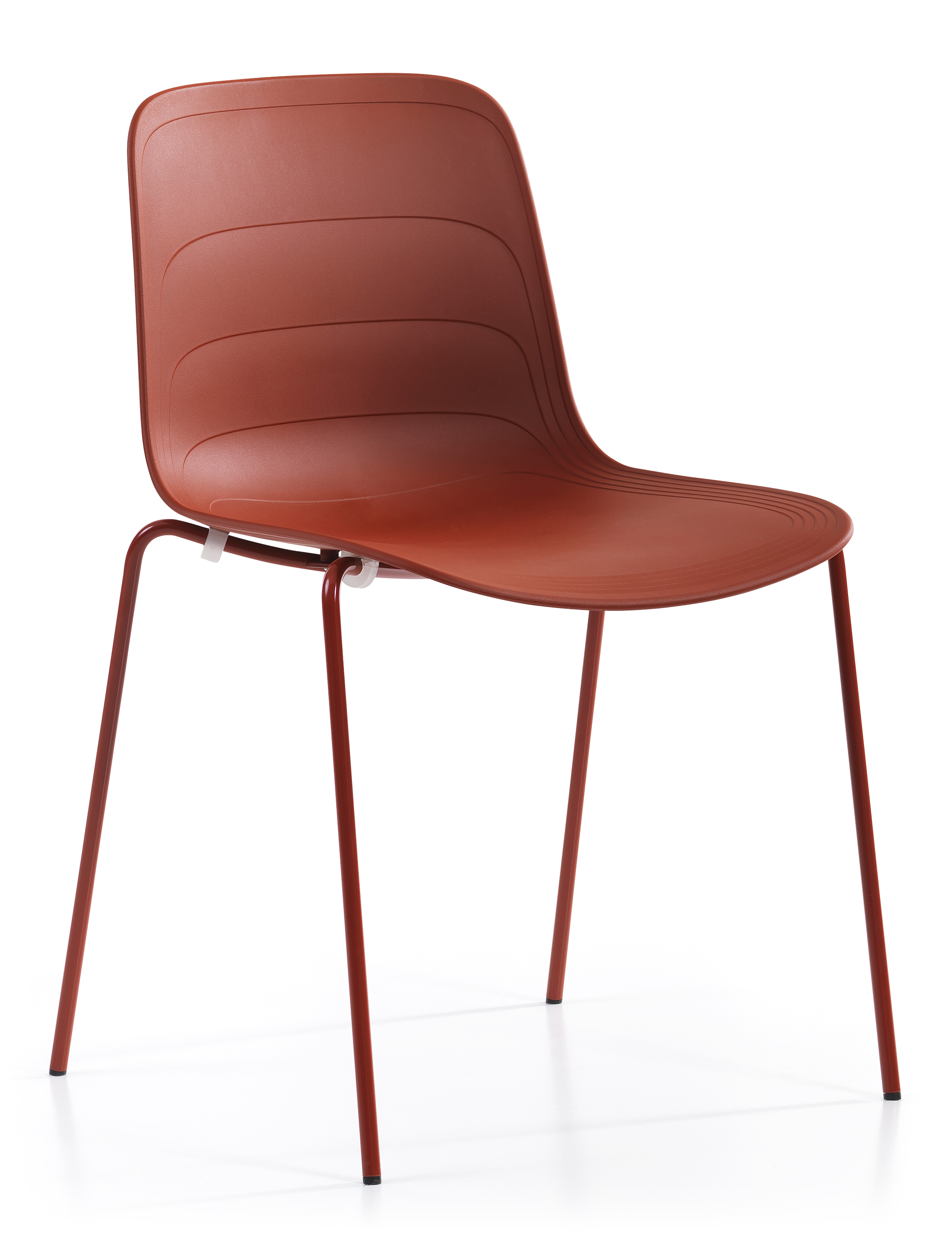

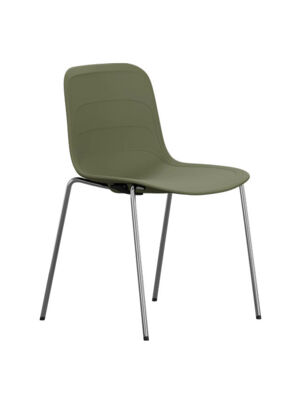

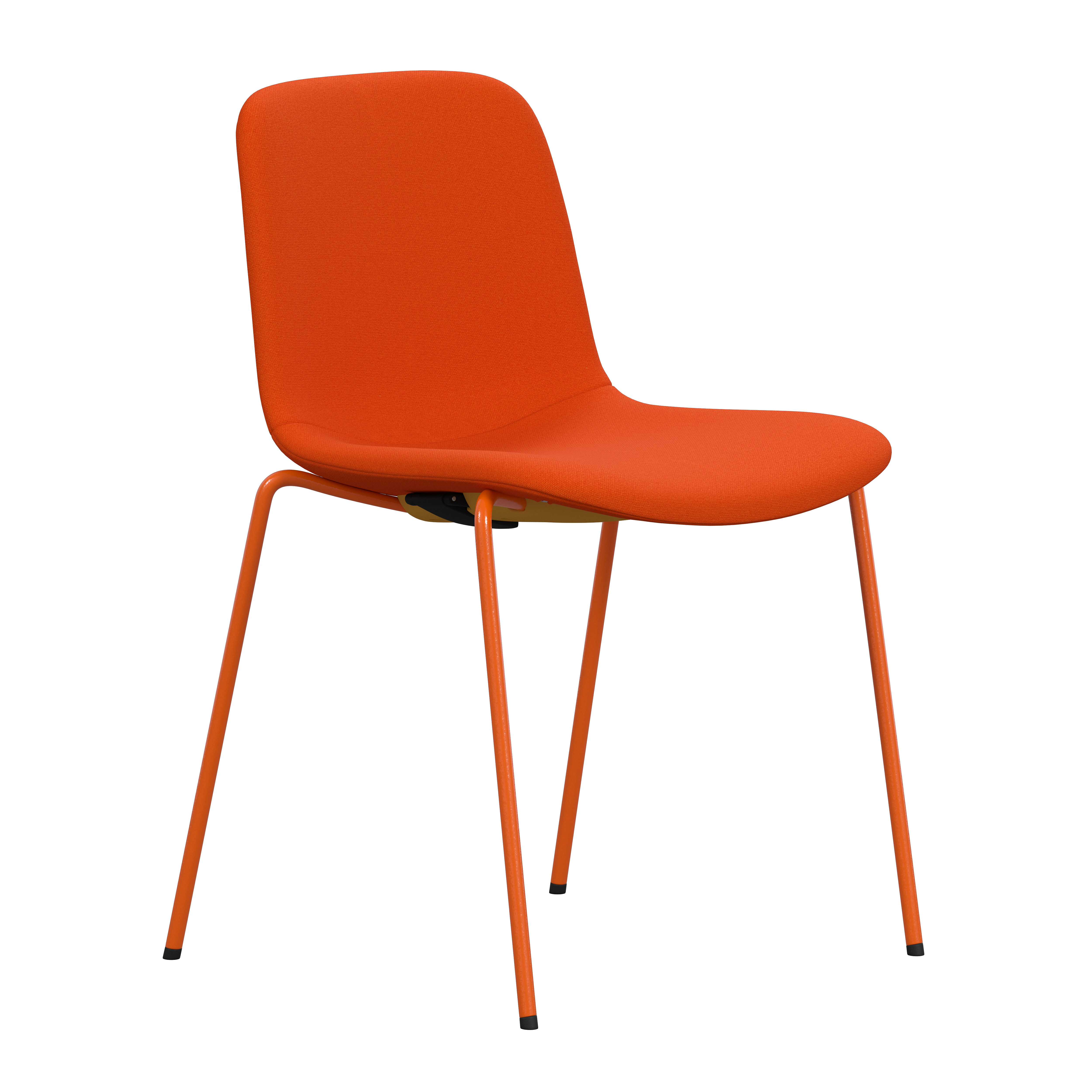

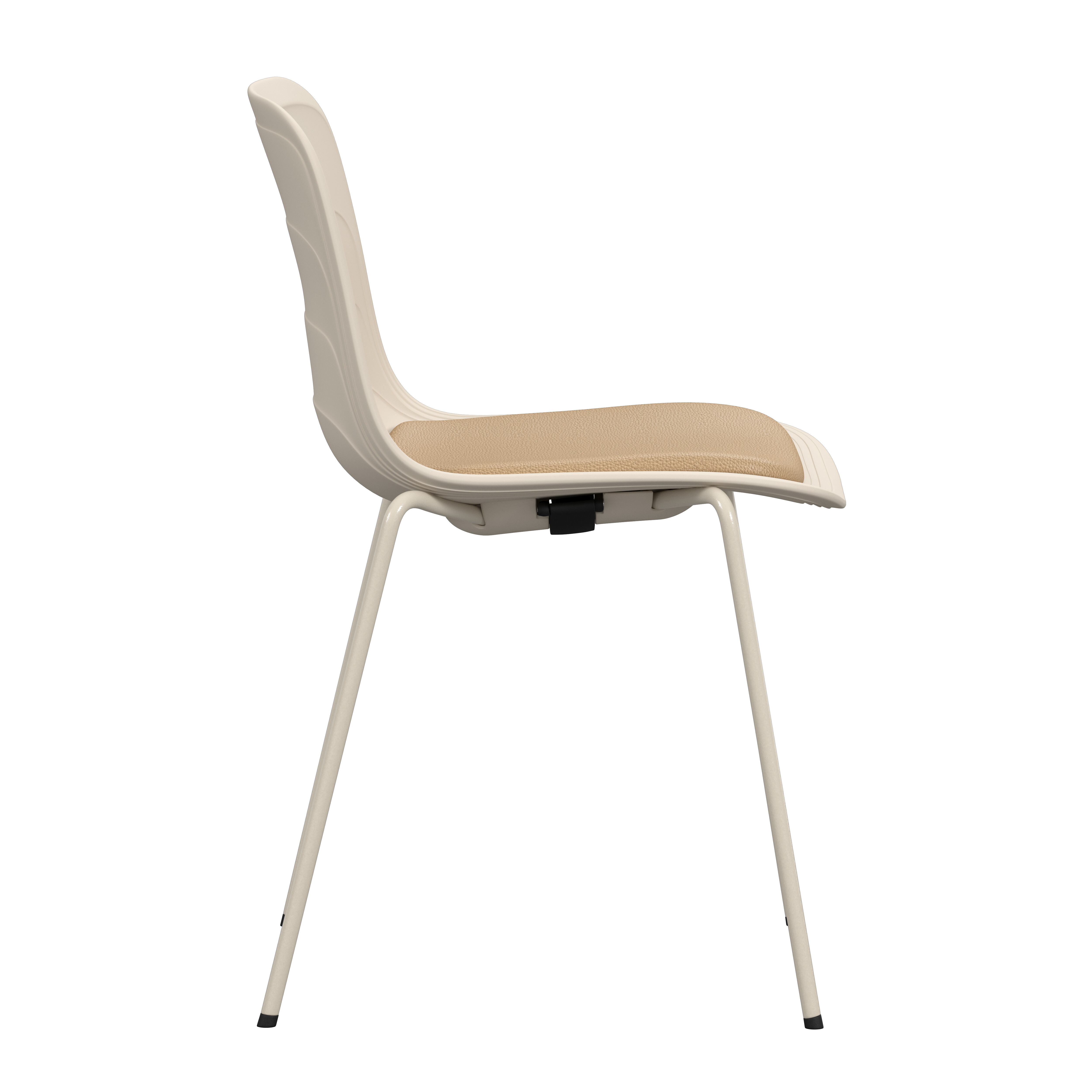

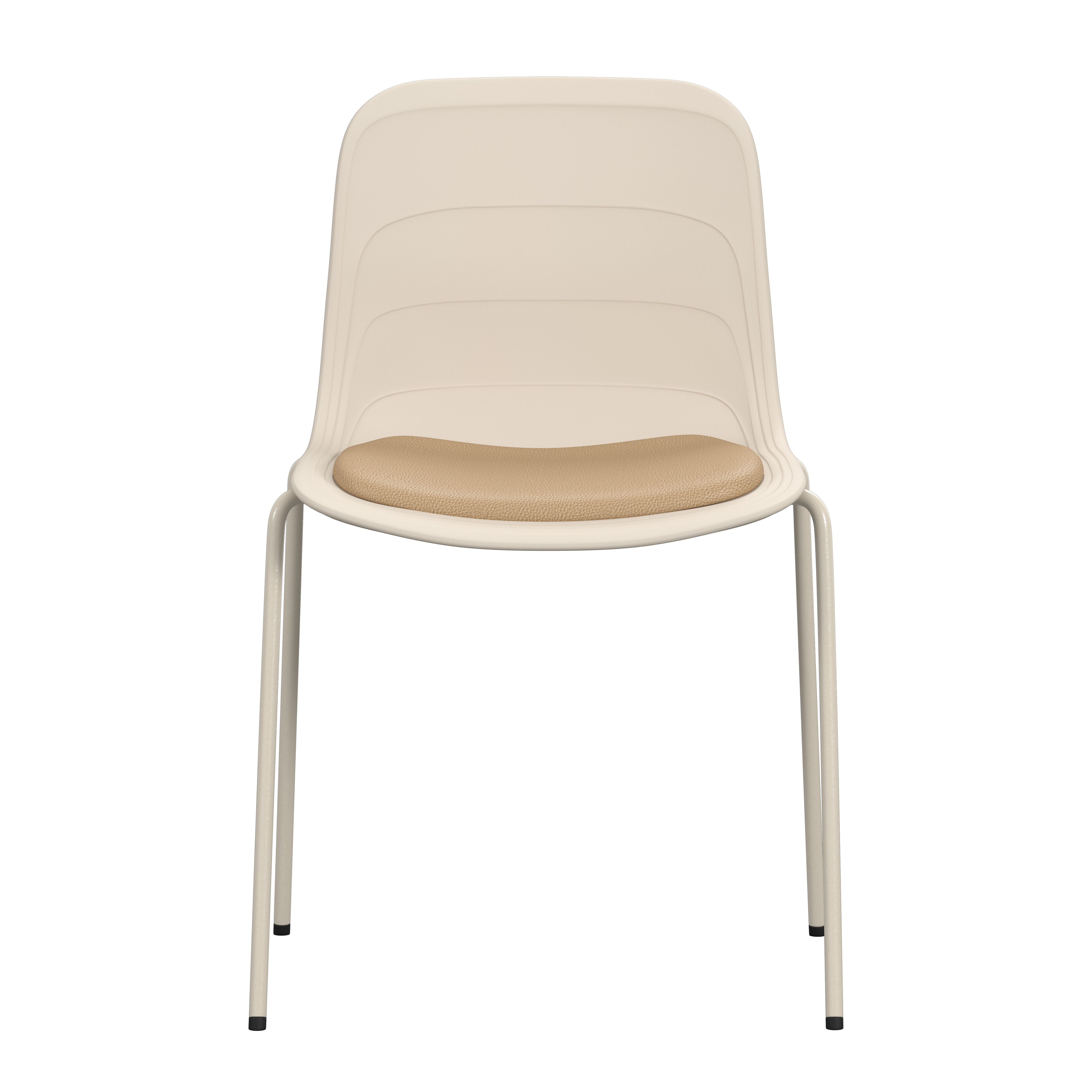

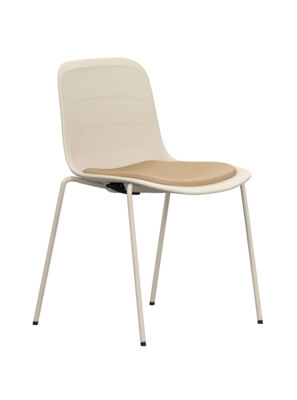

Grade – Chair 4 legsGrade – Chair 4 legs

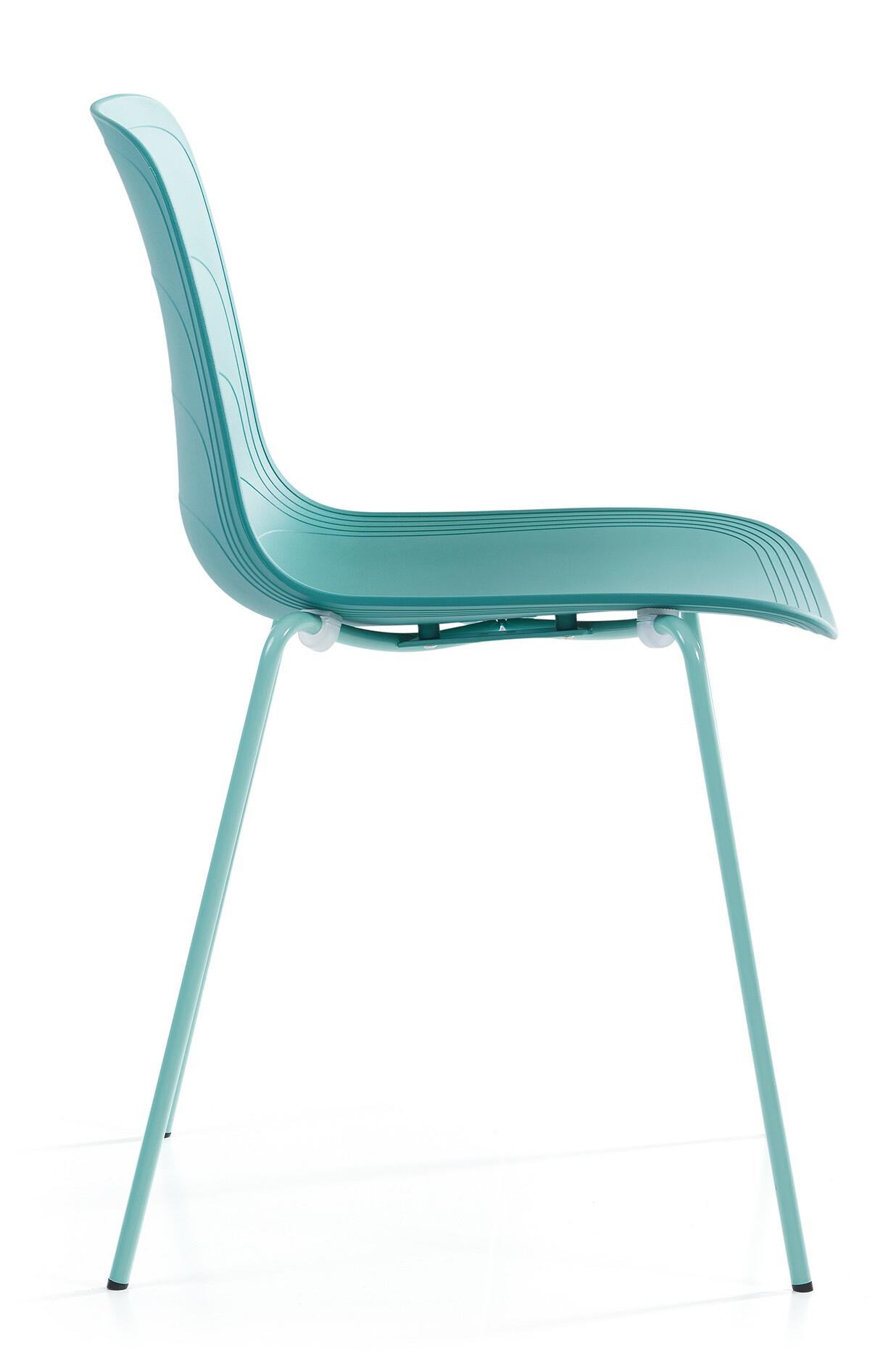

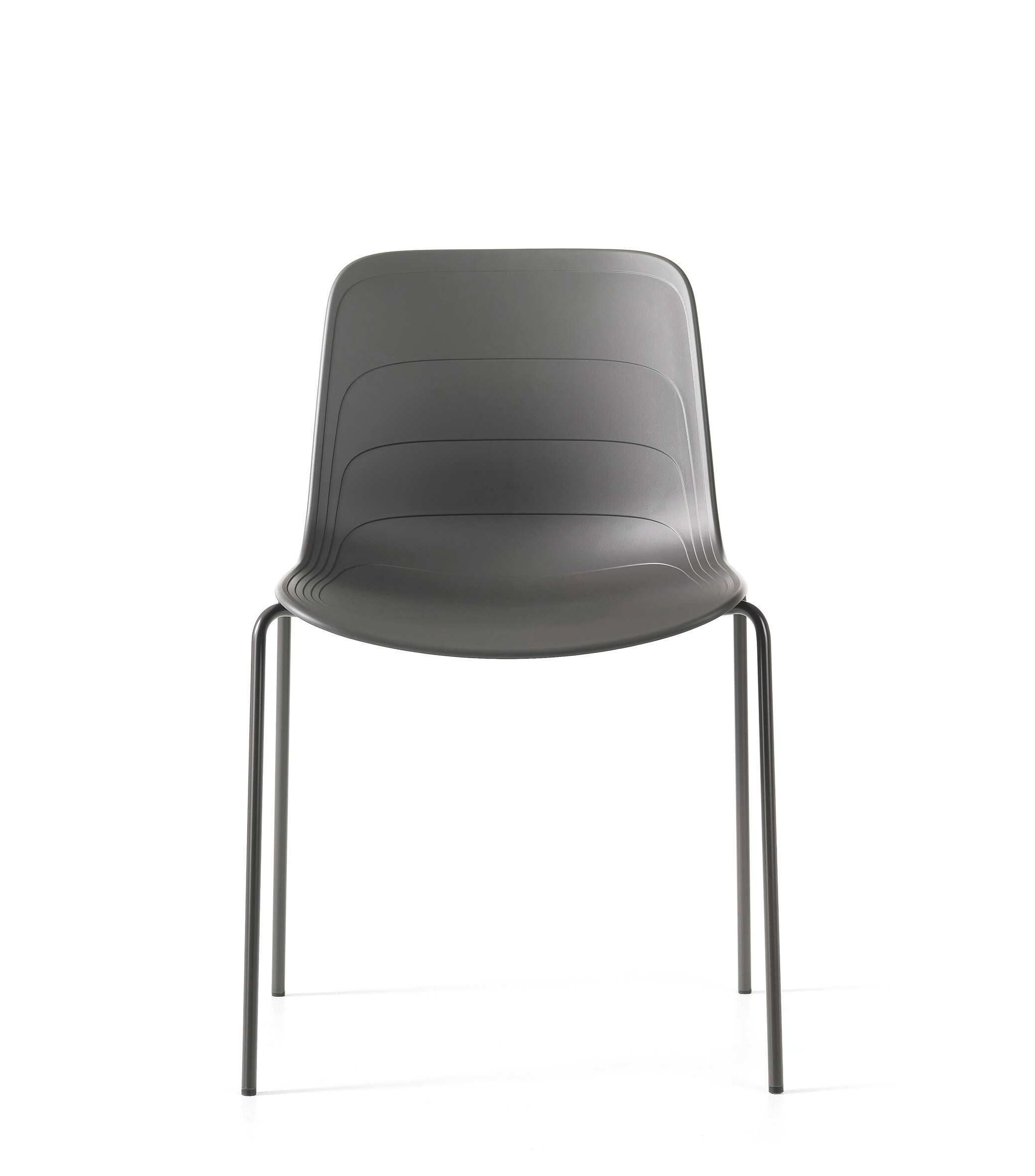

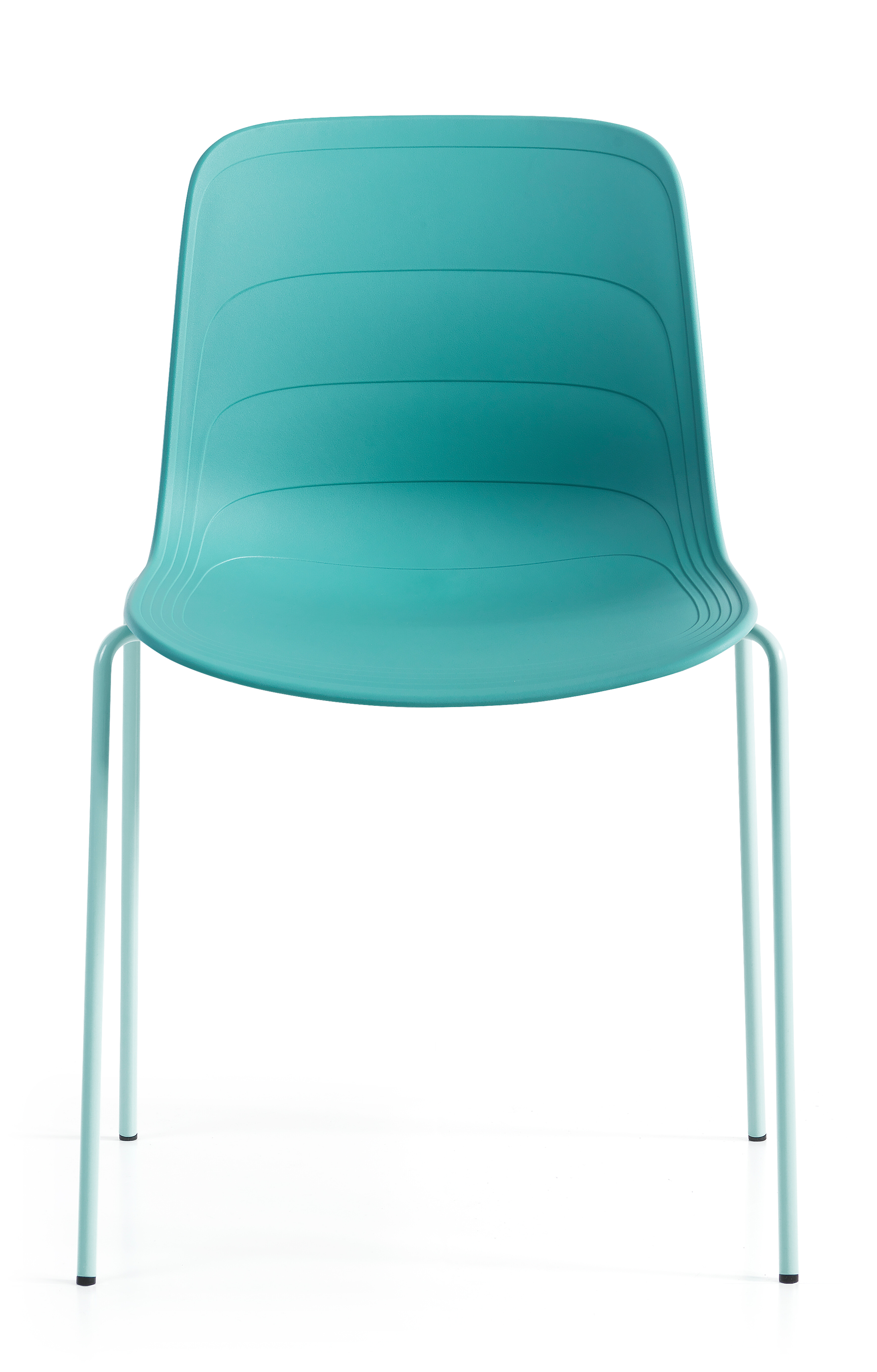

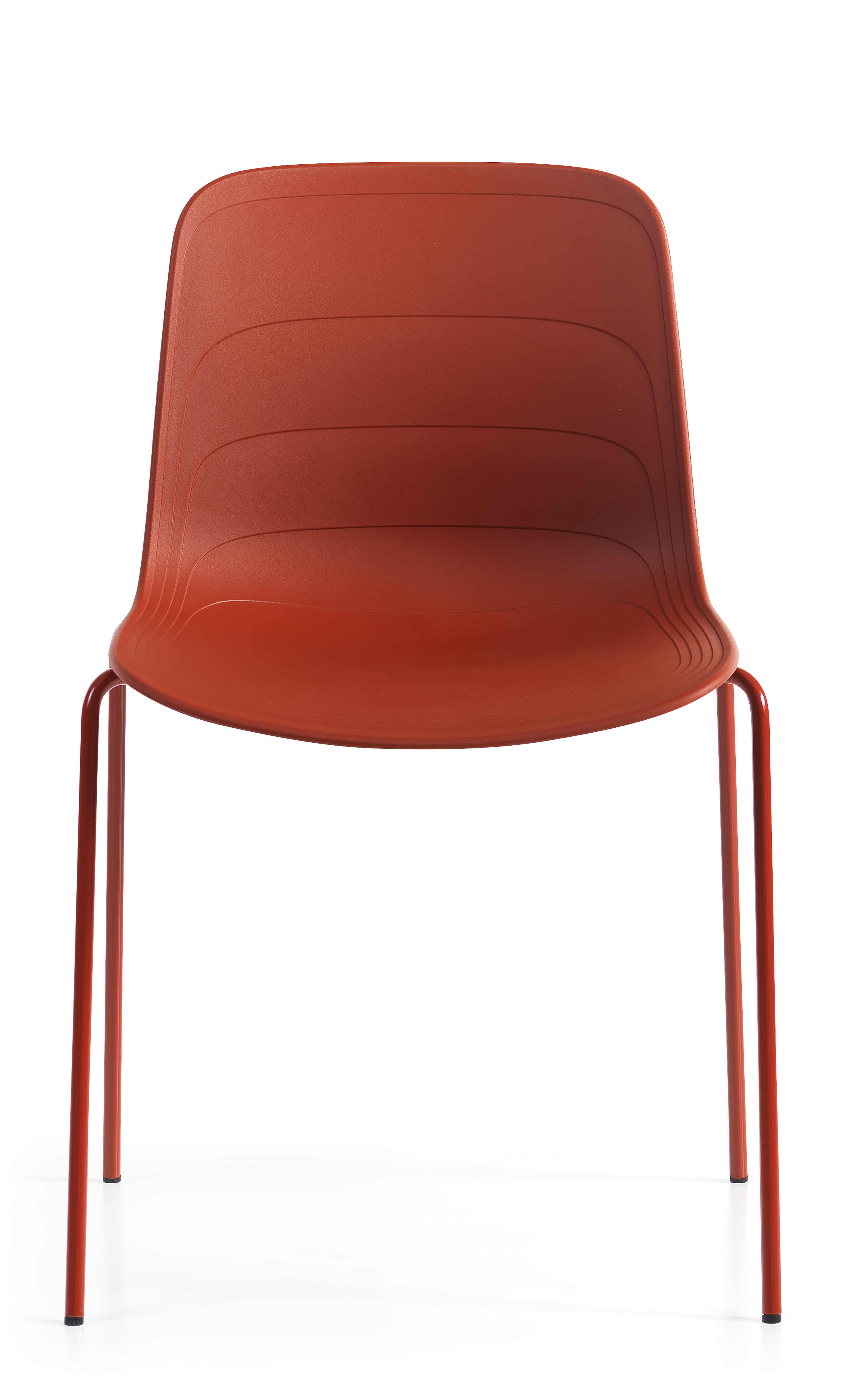

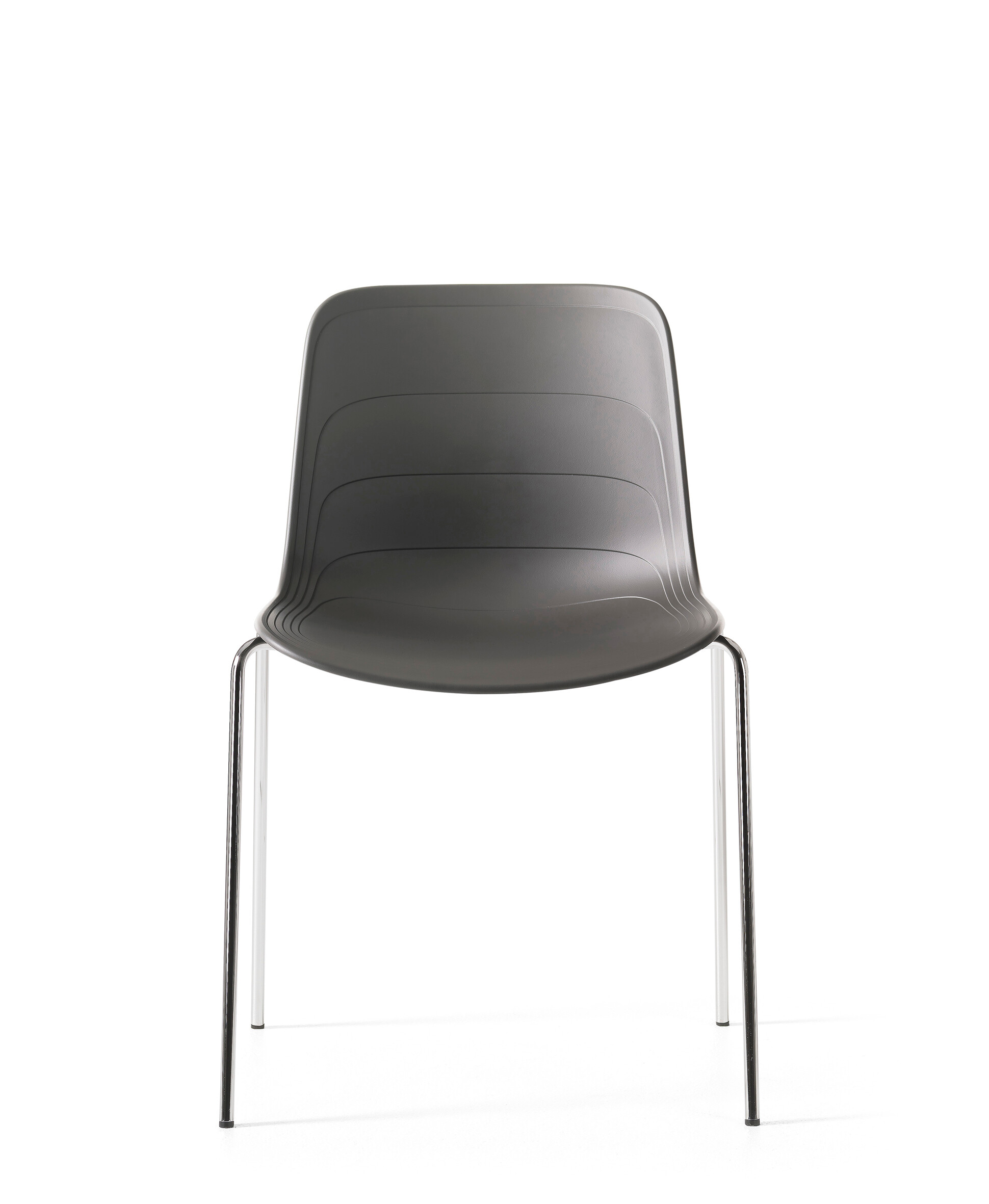

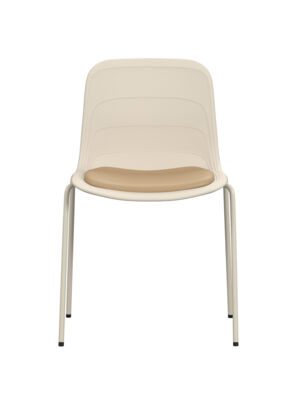

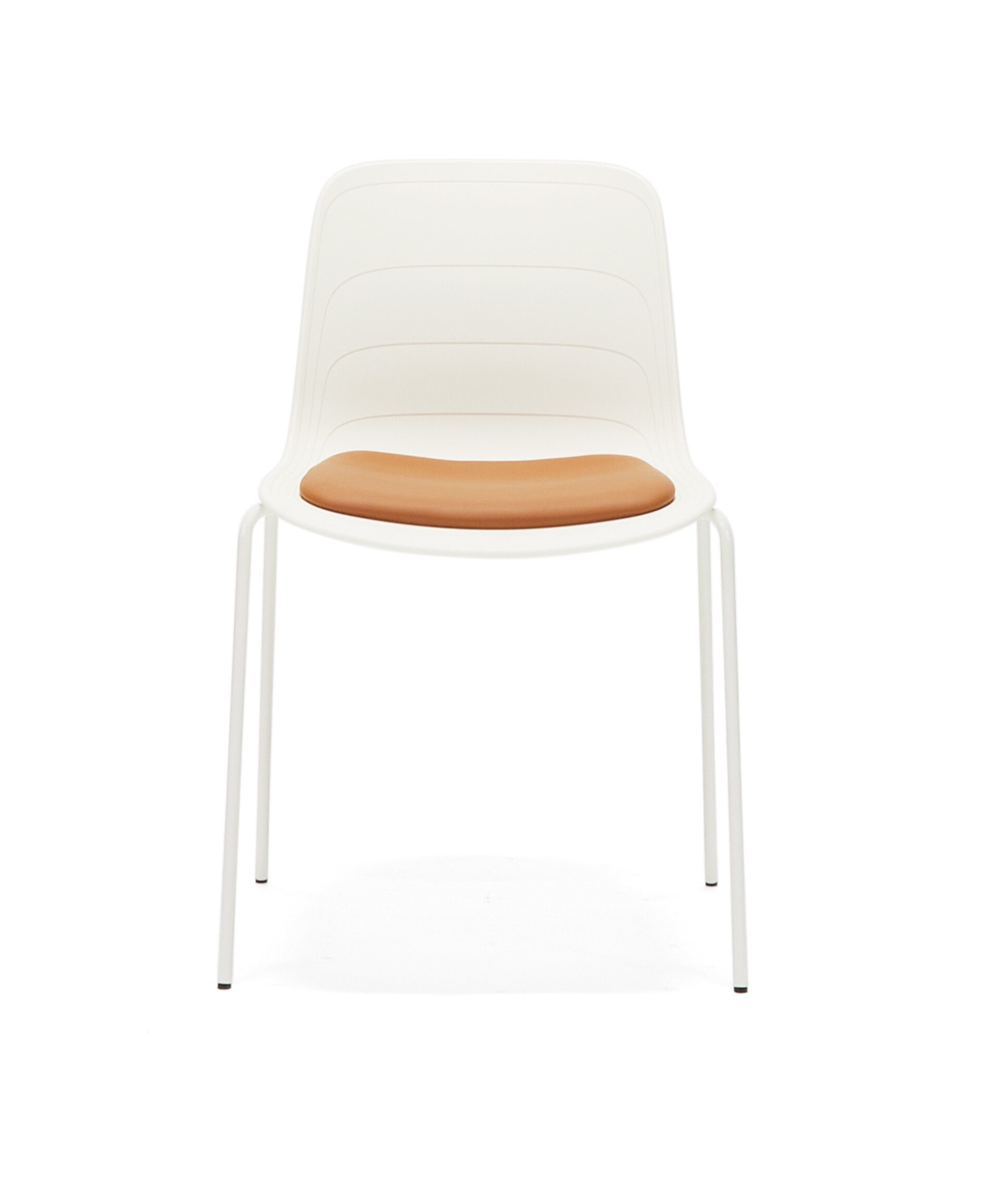

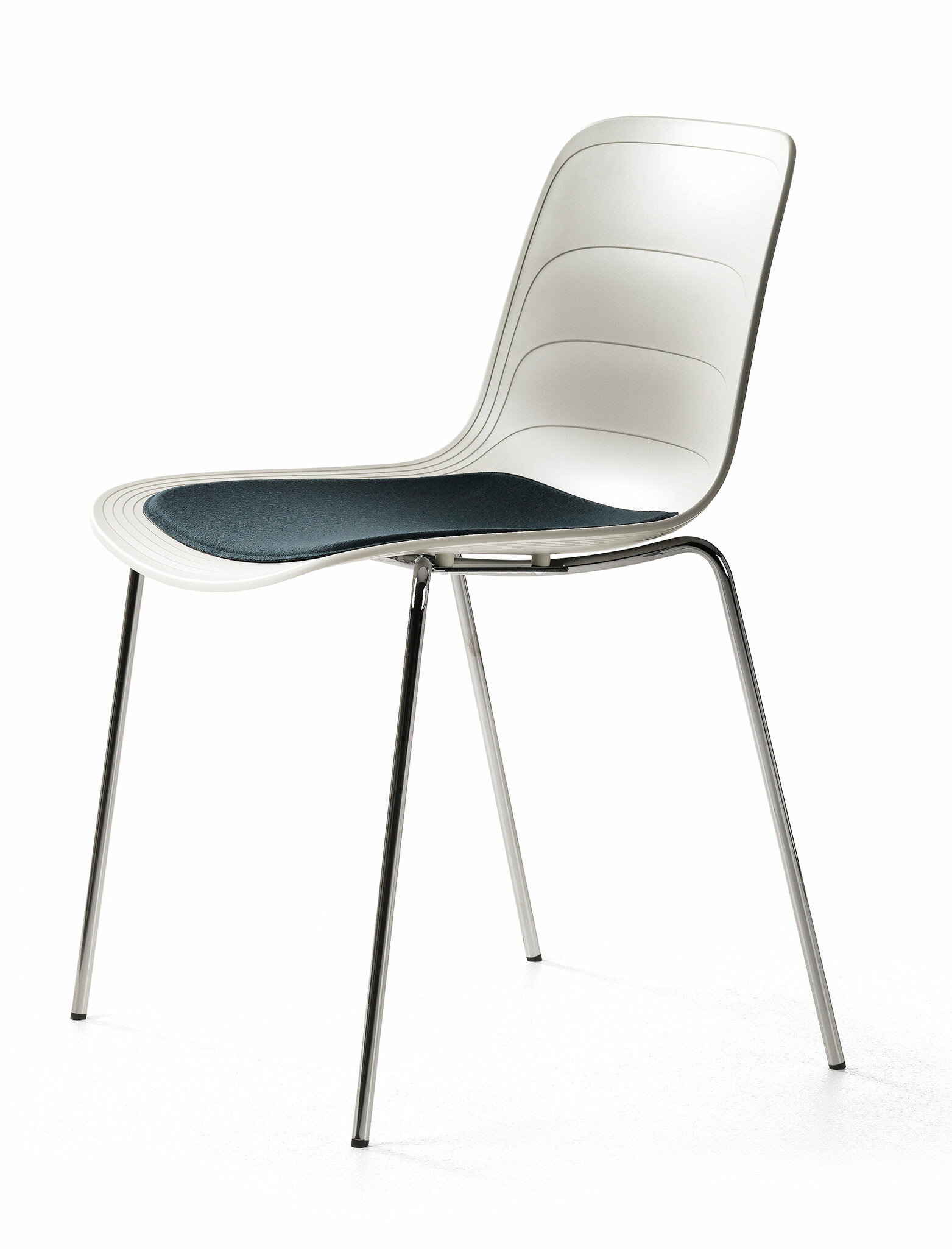

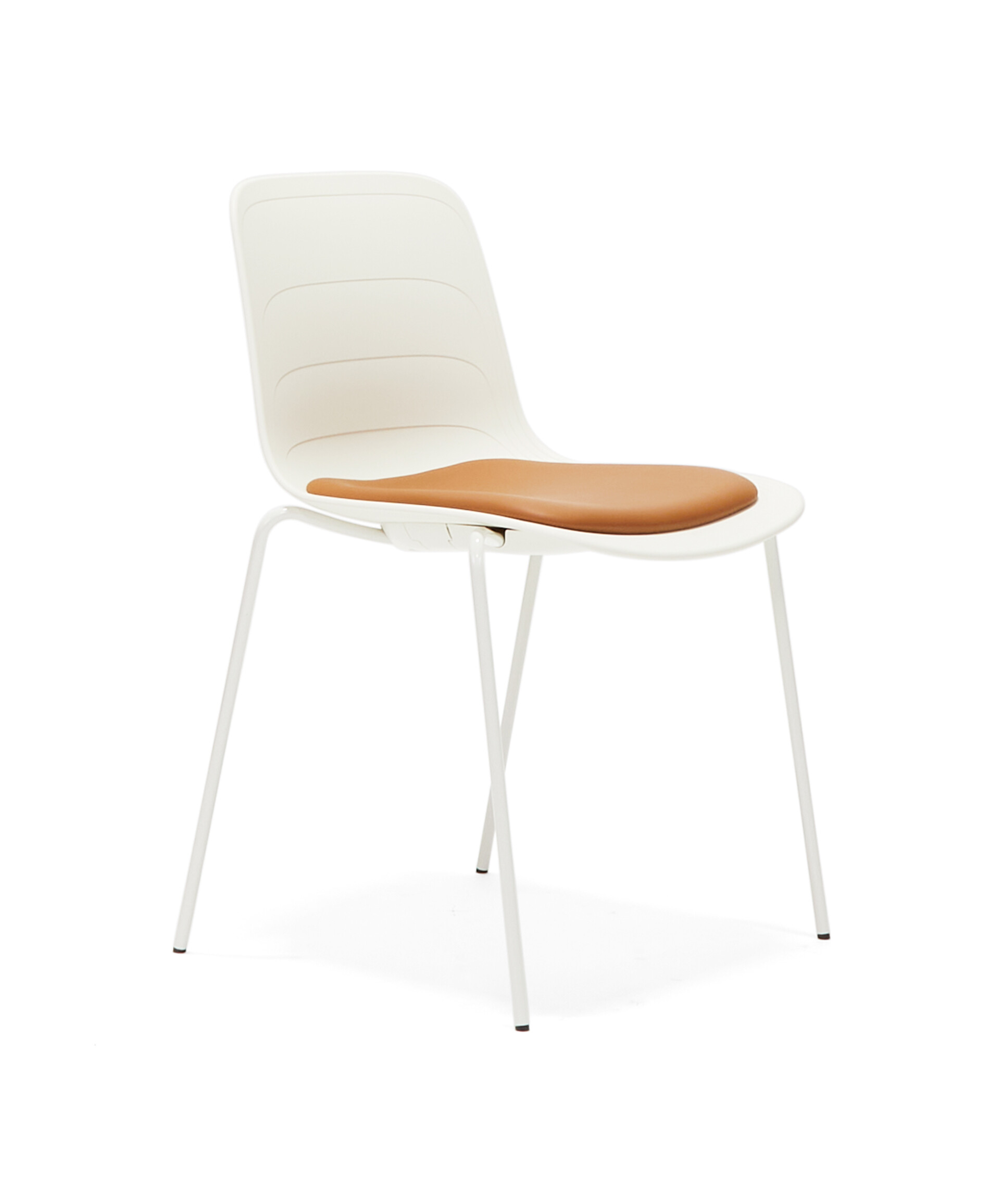

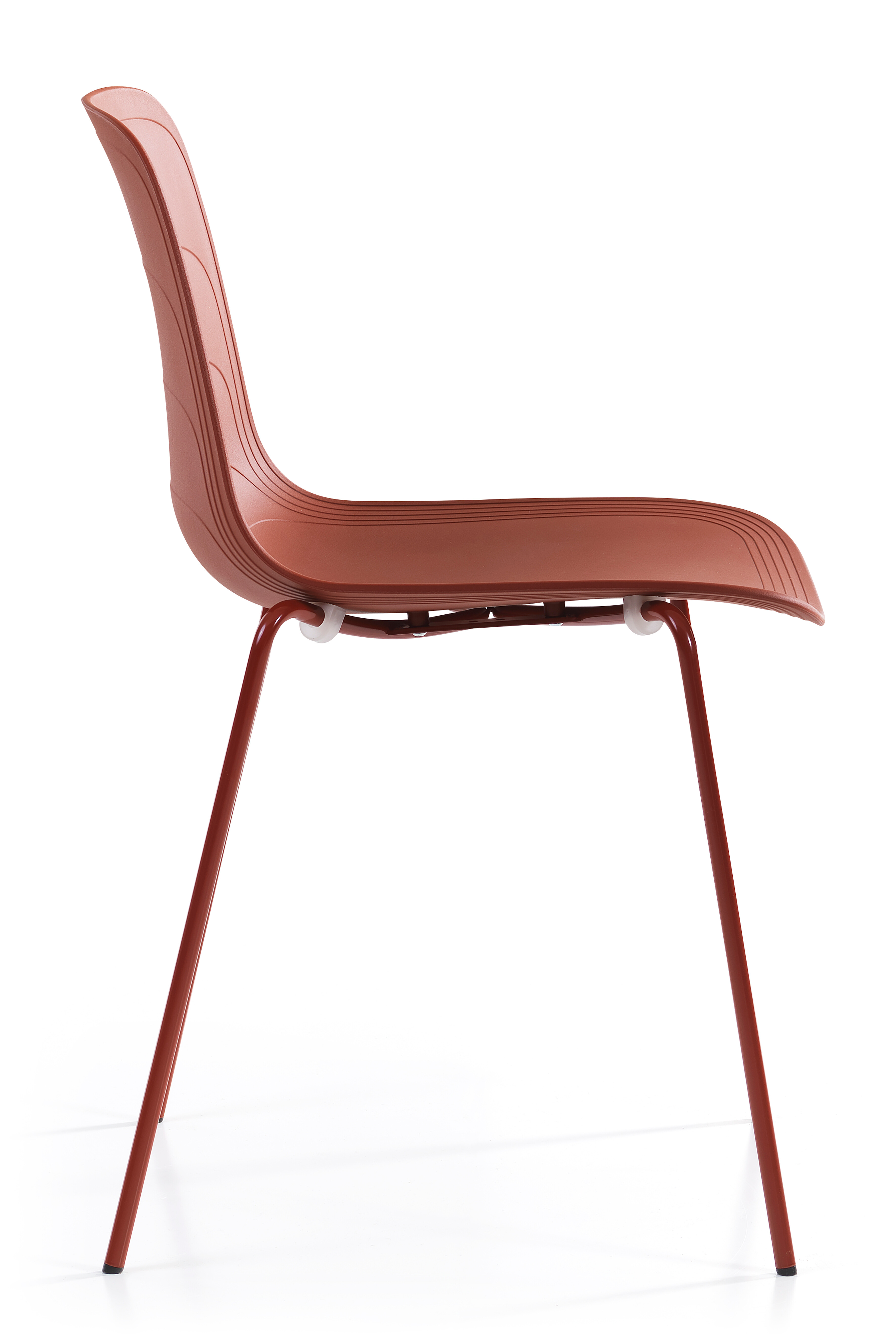

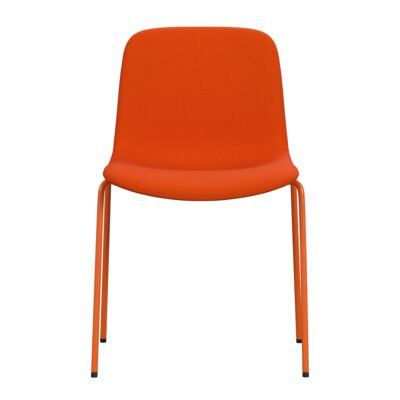

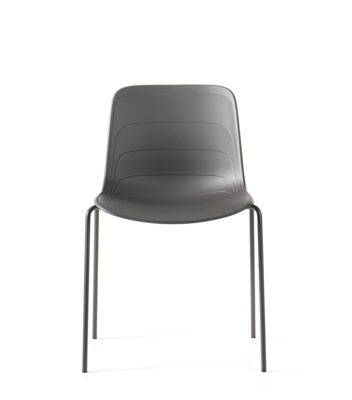

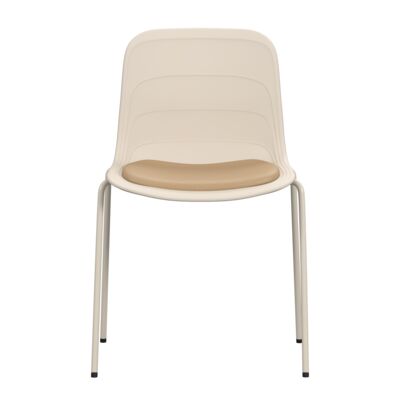

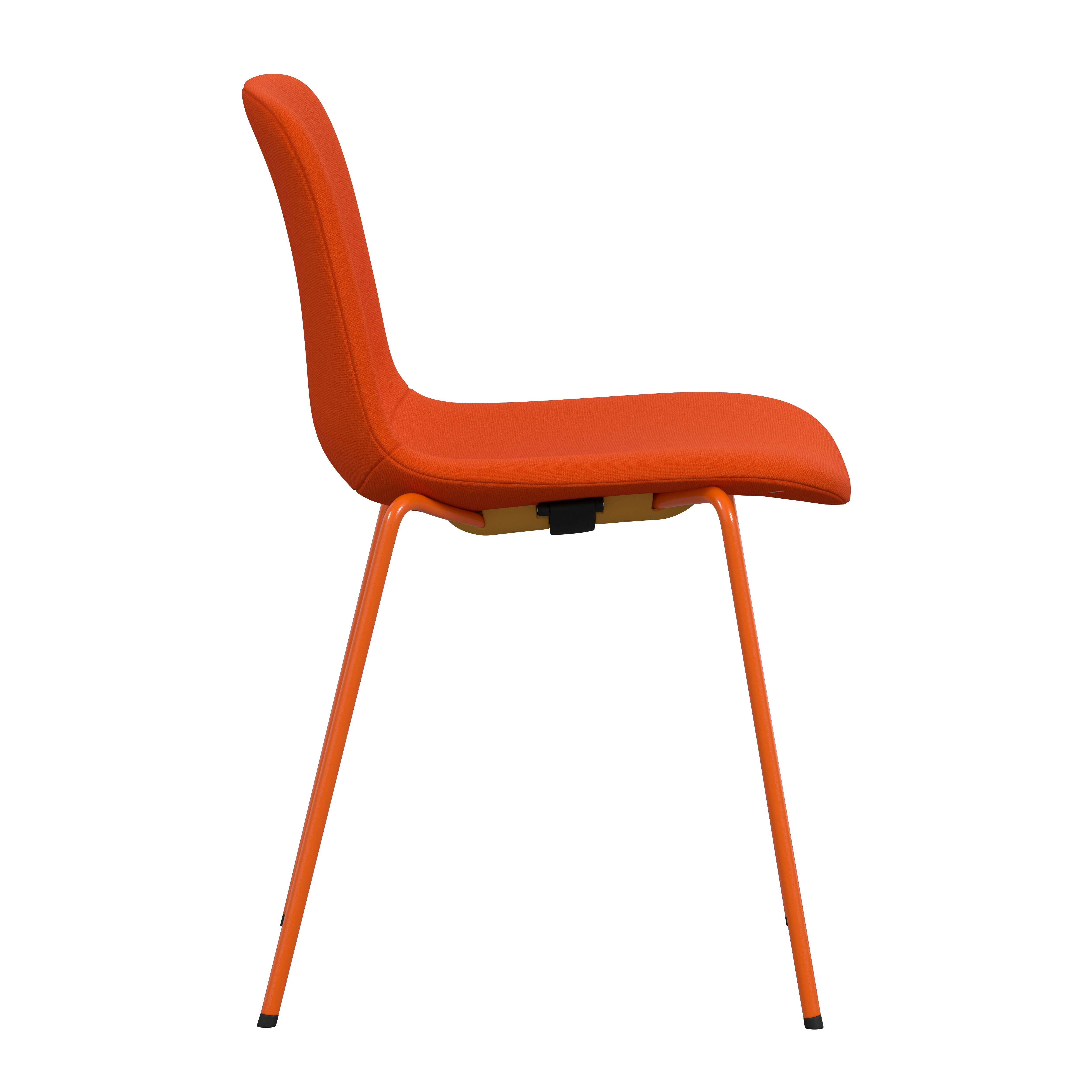

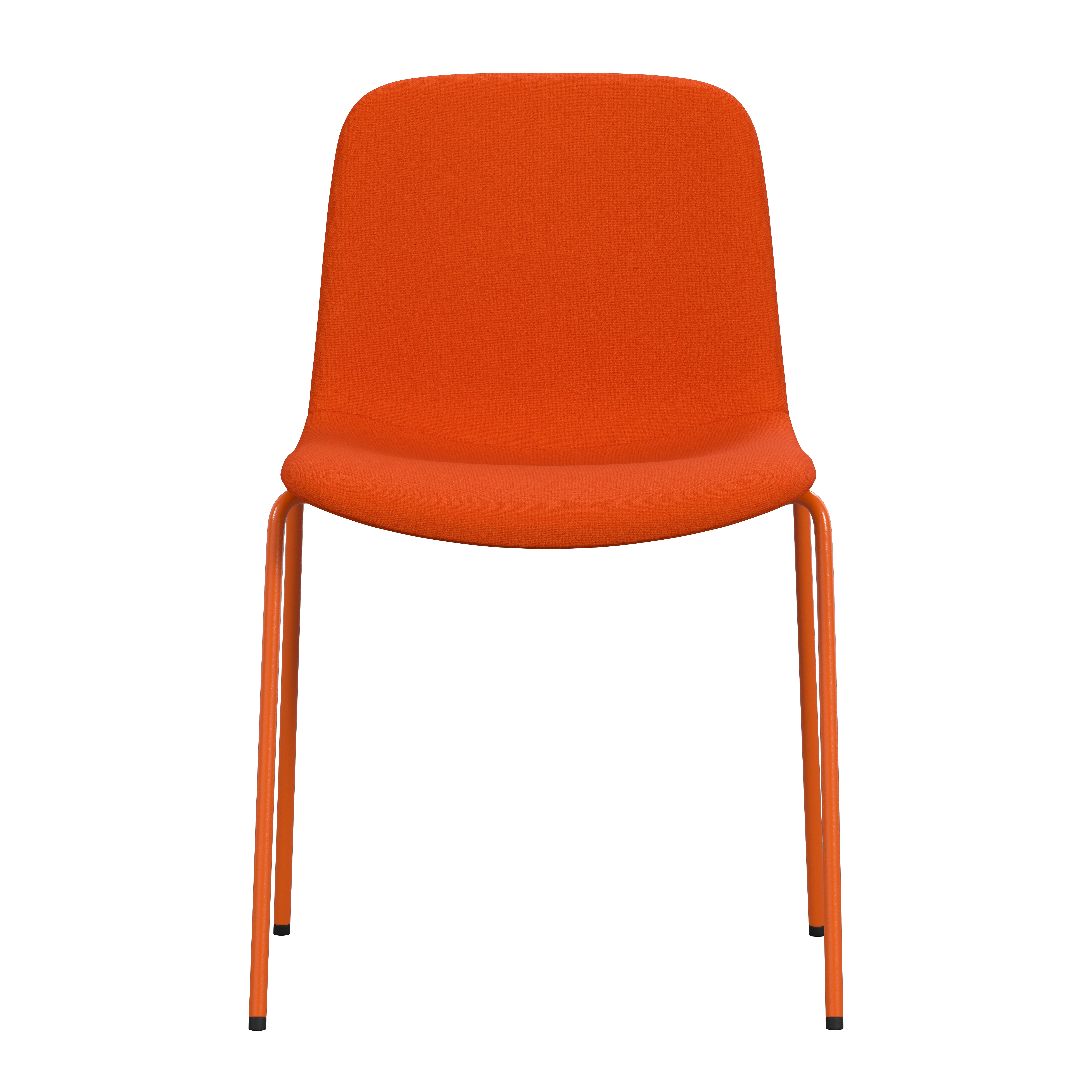

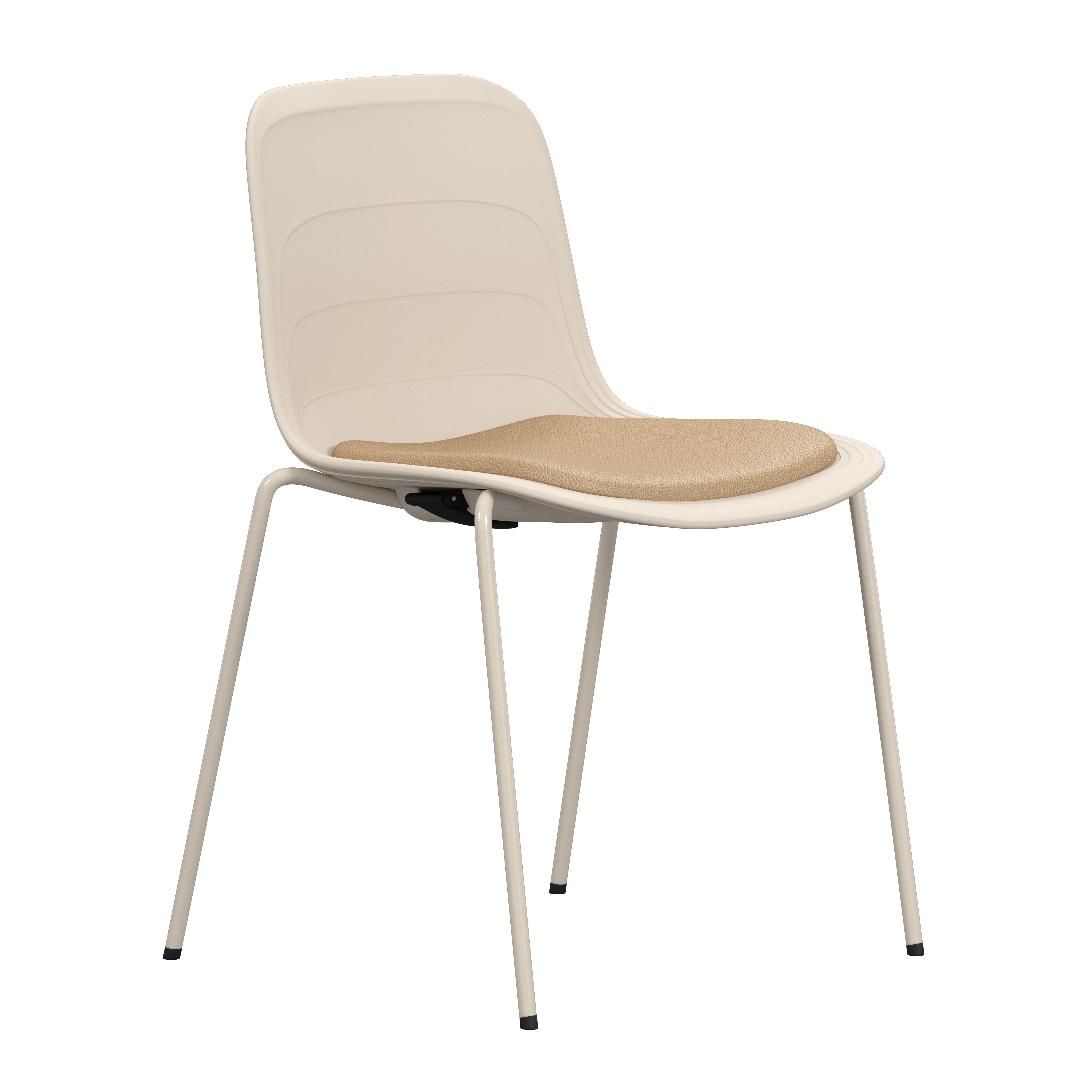

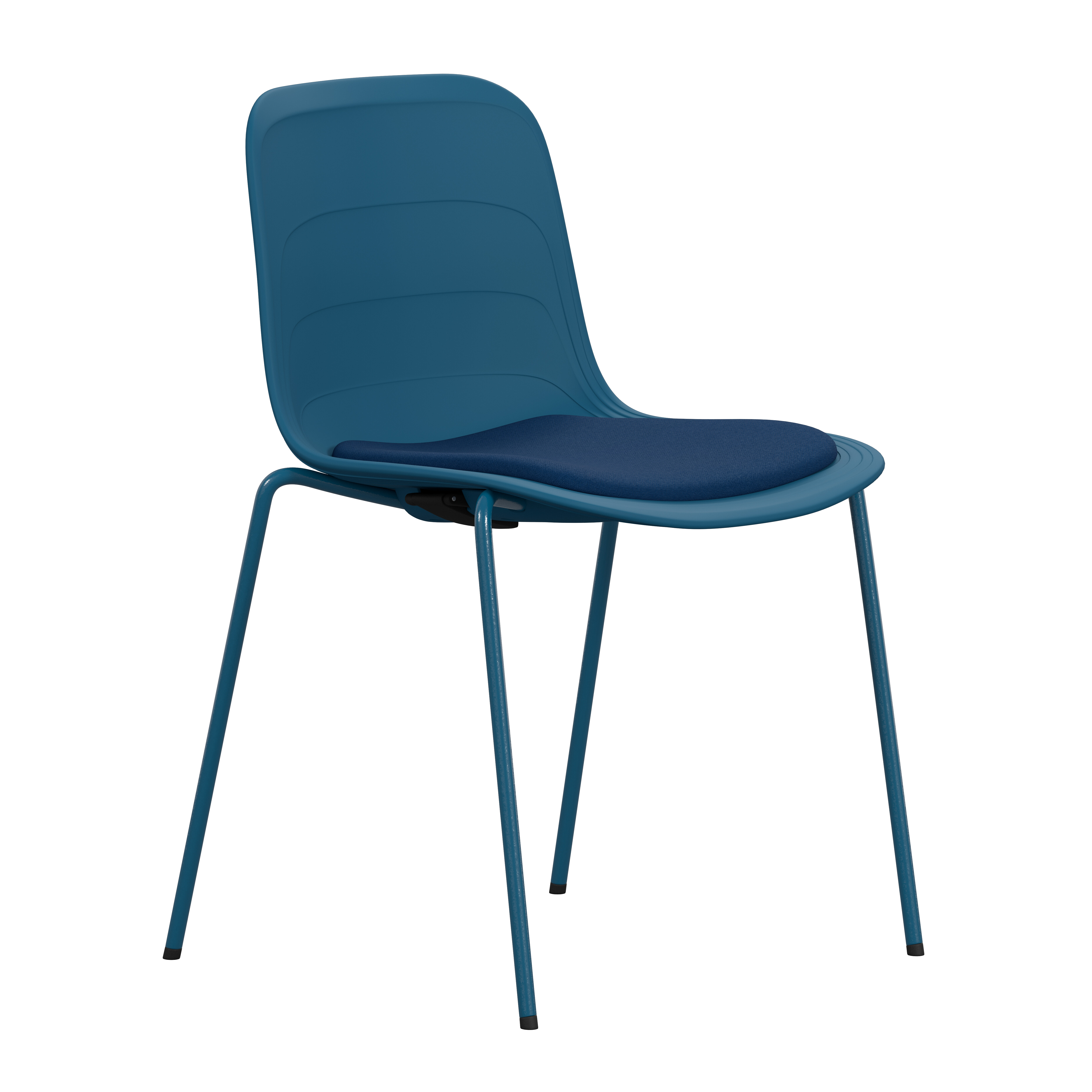

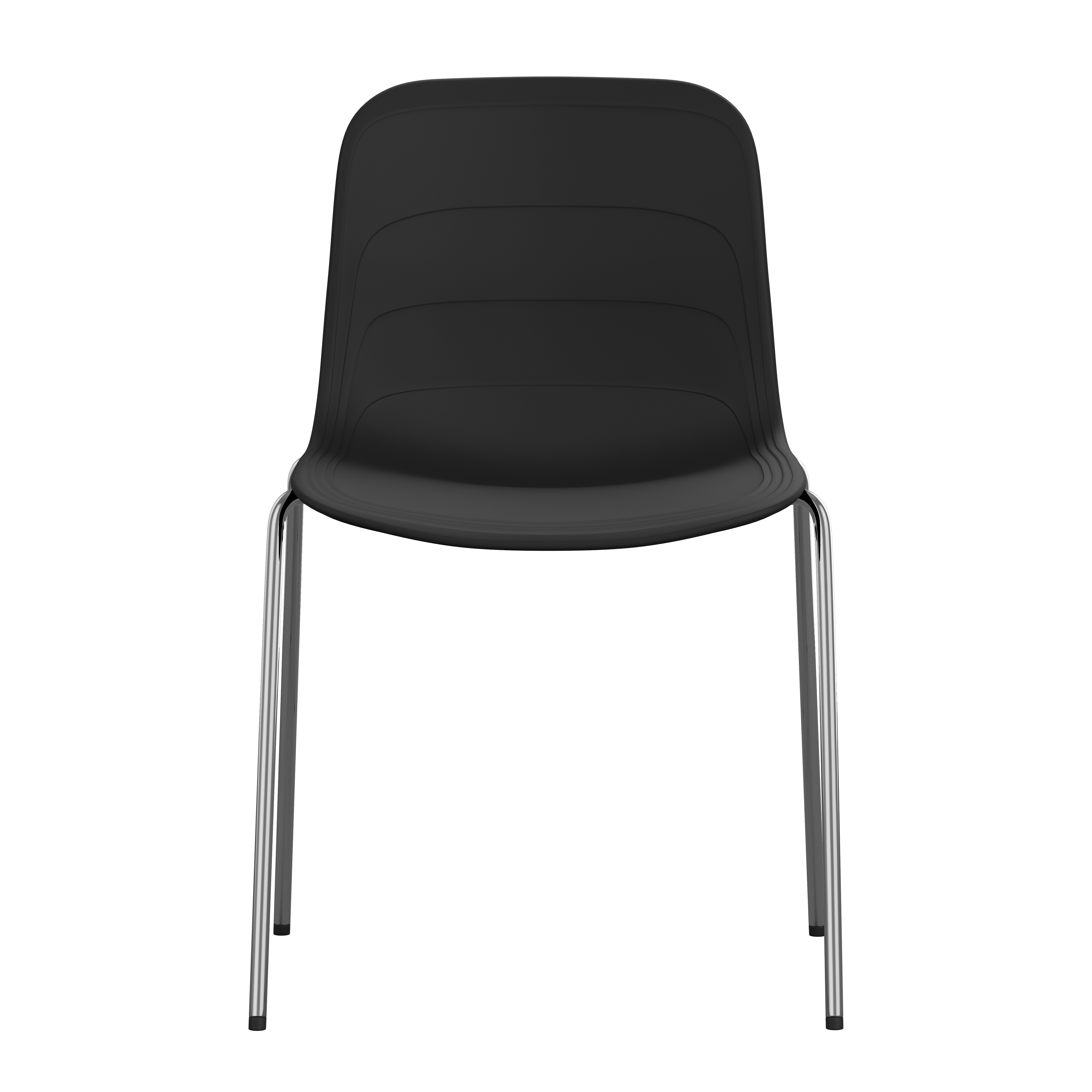

Chair 4 legs

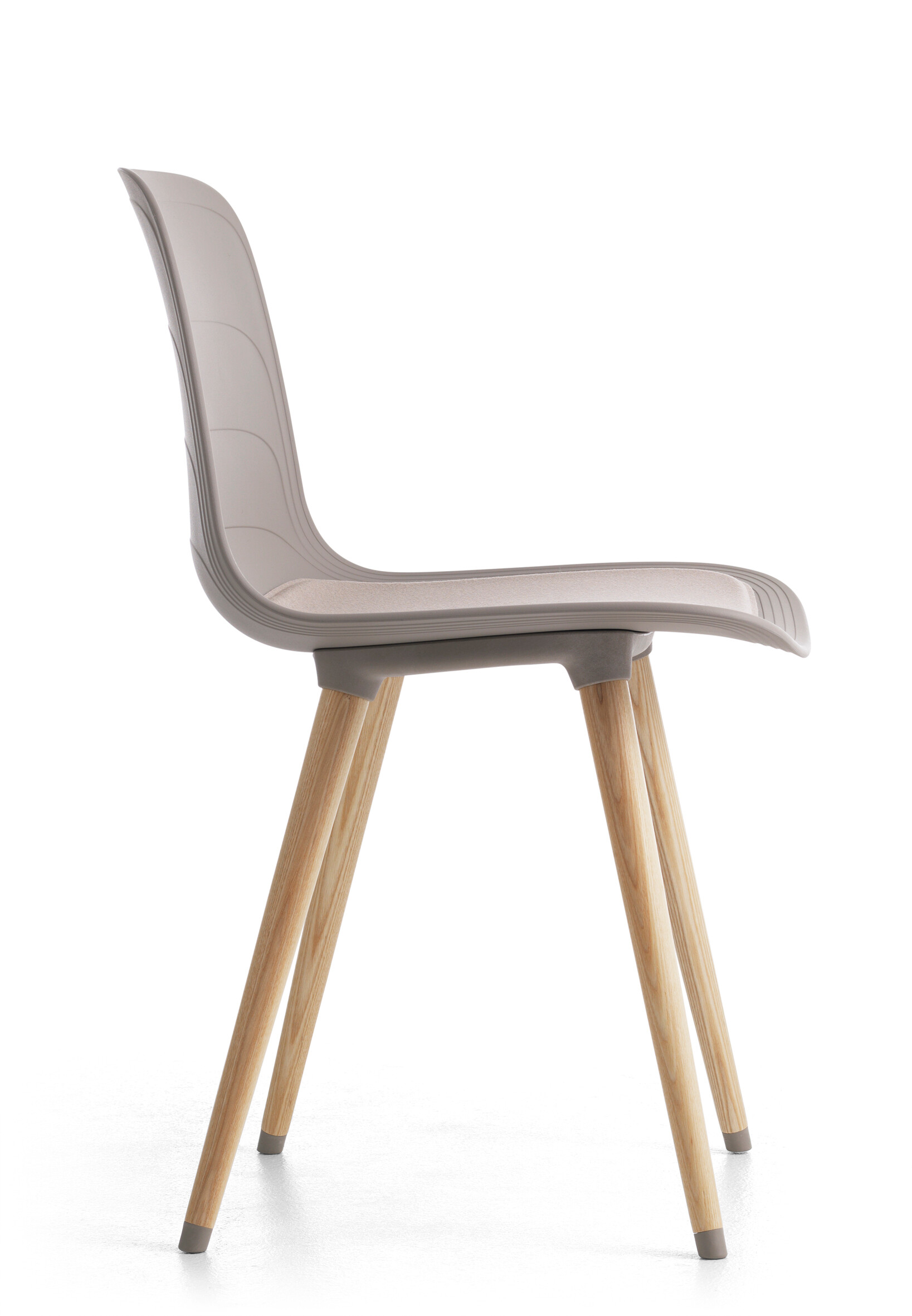

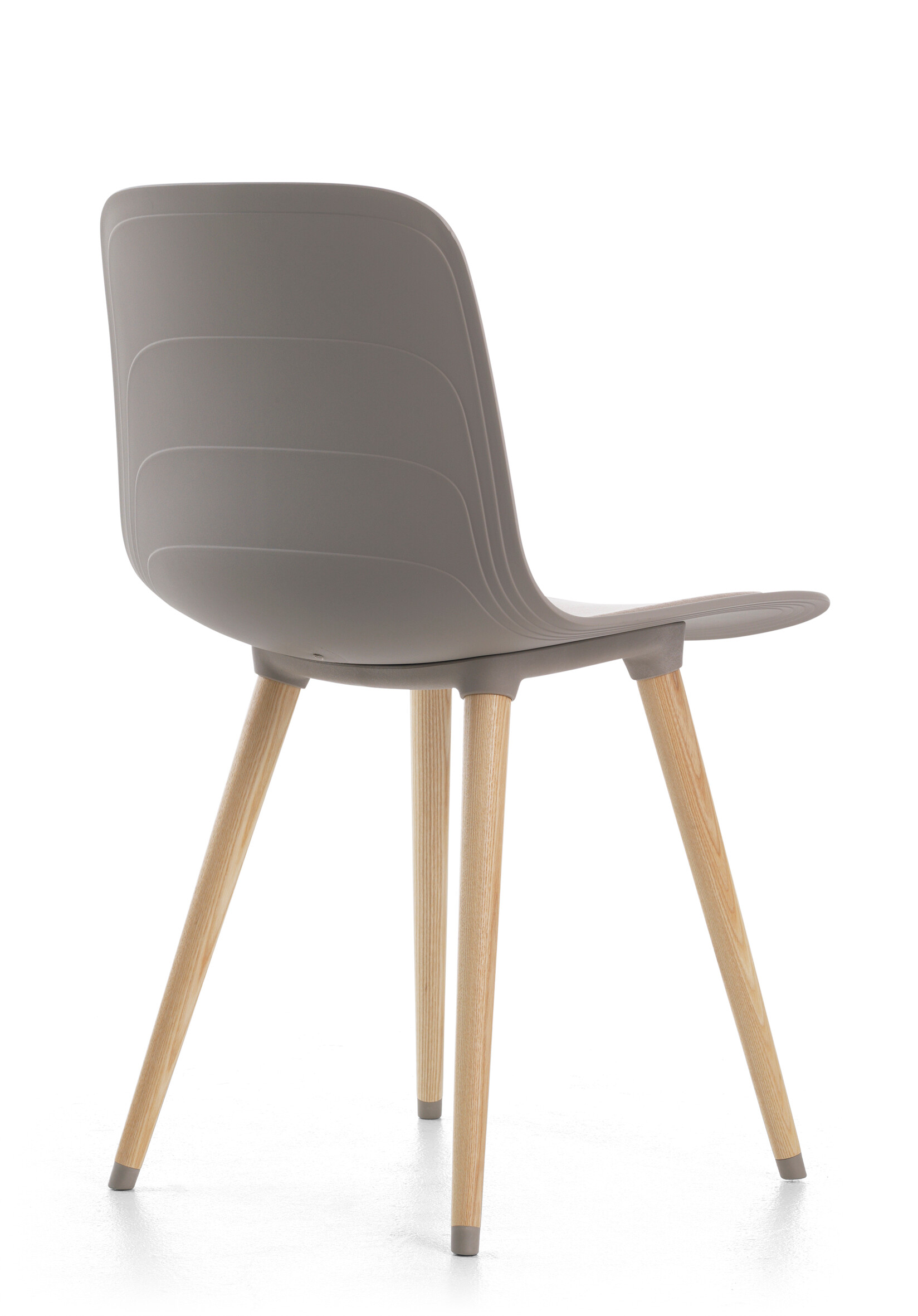

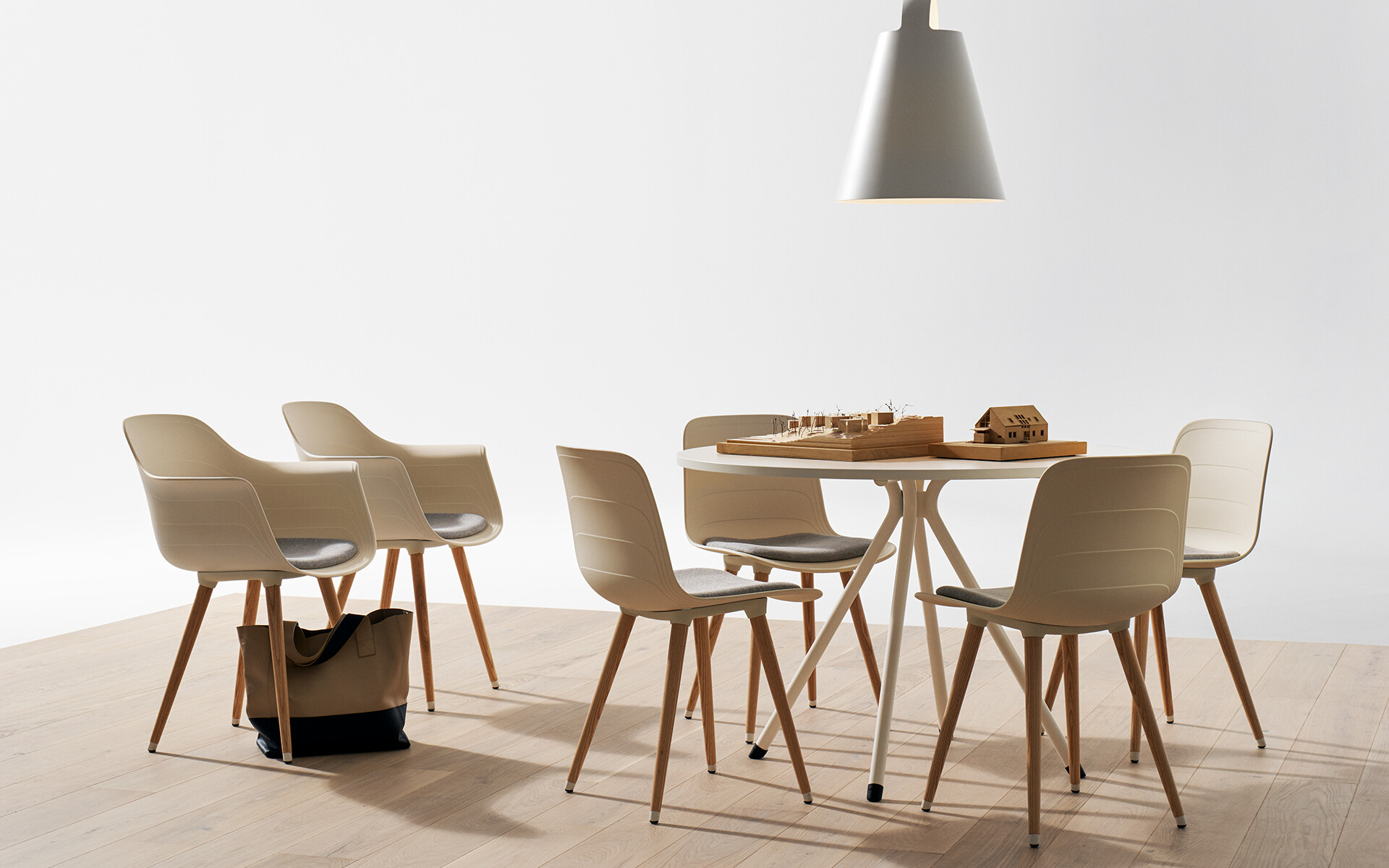

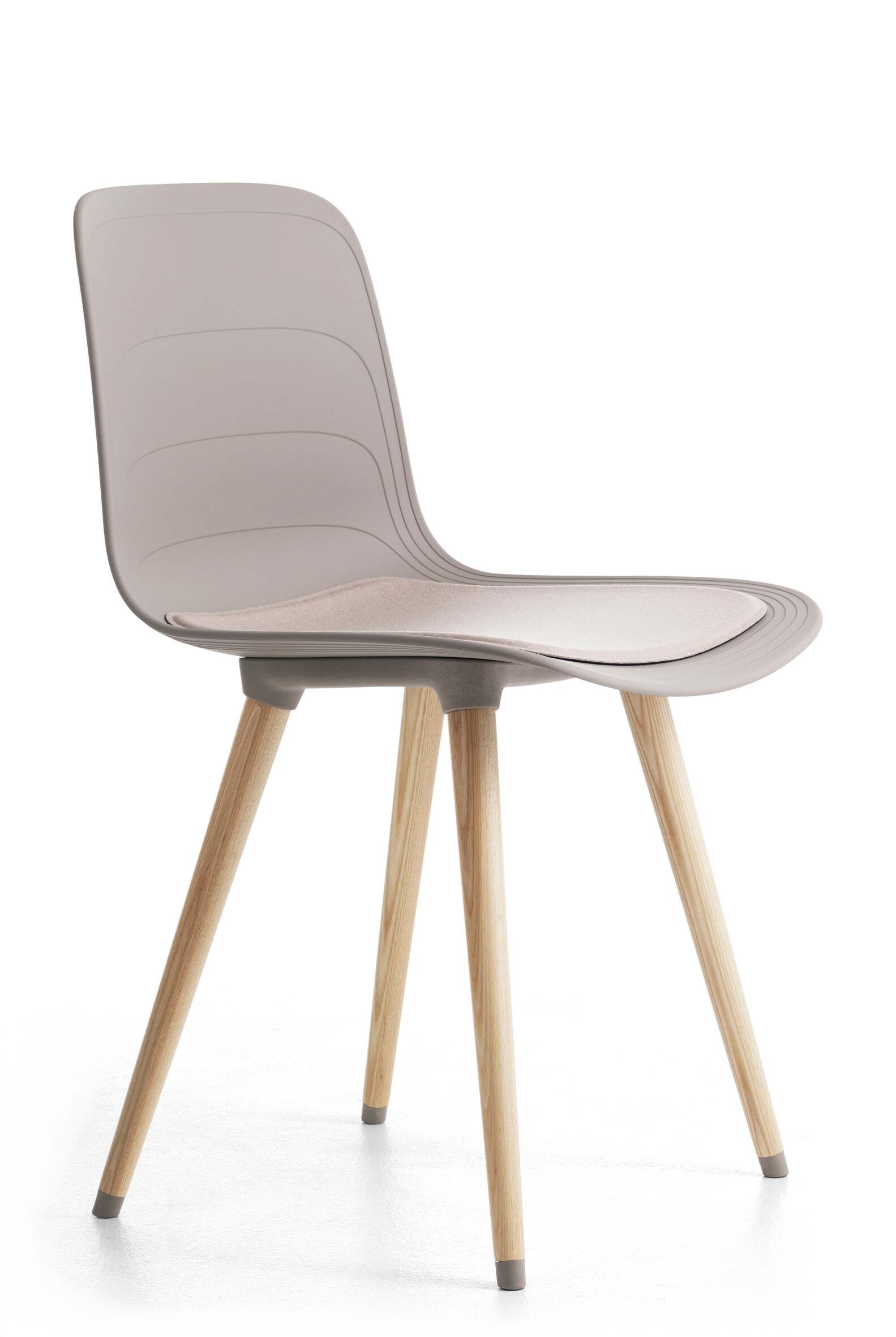

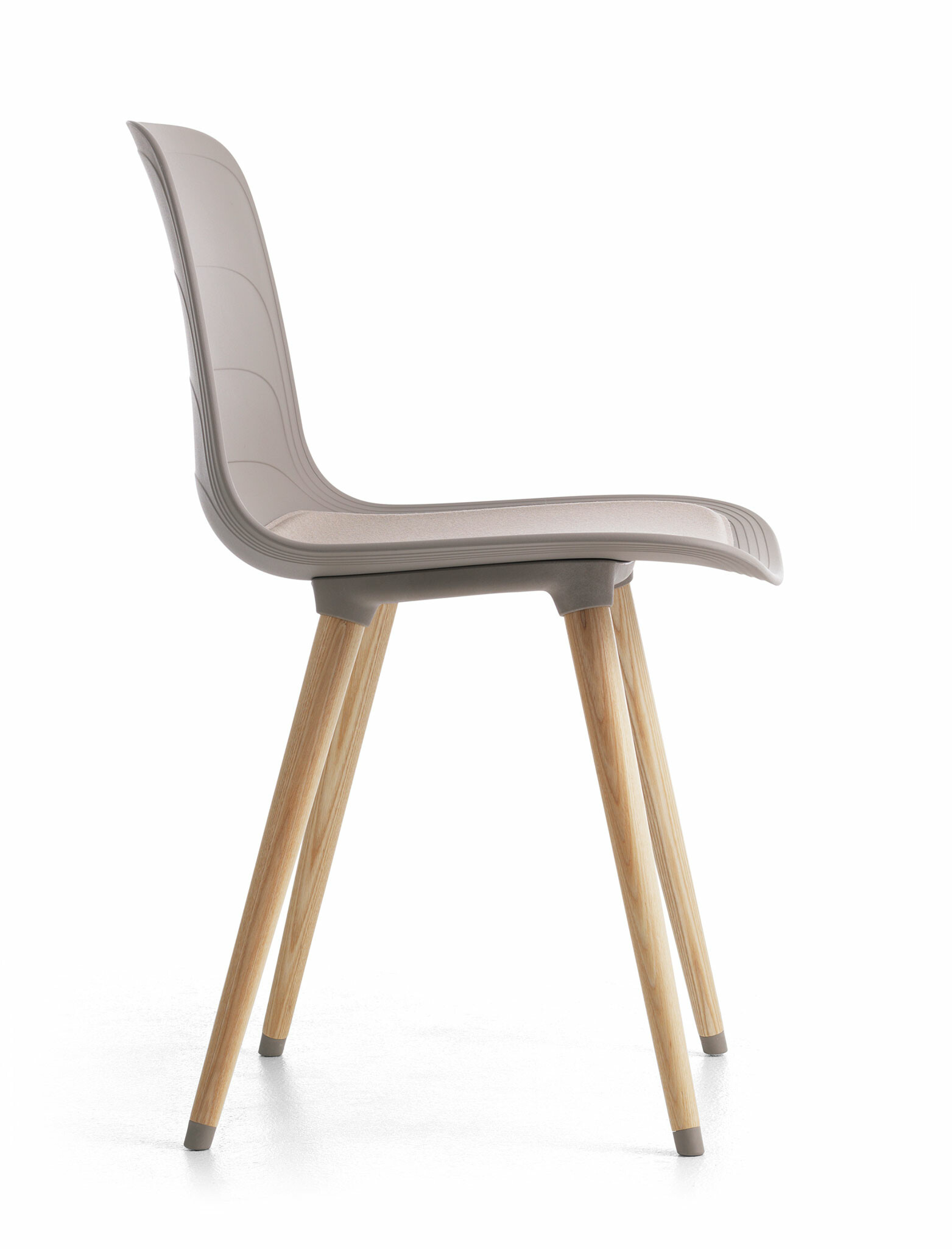

Grade – Chair wooden frameGrade – Chair wooden frame

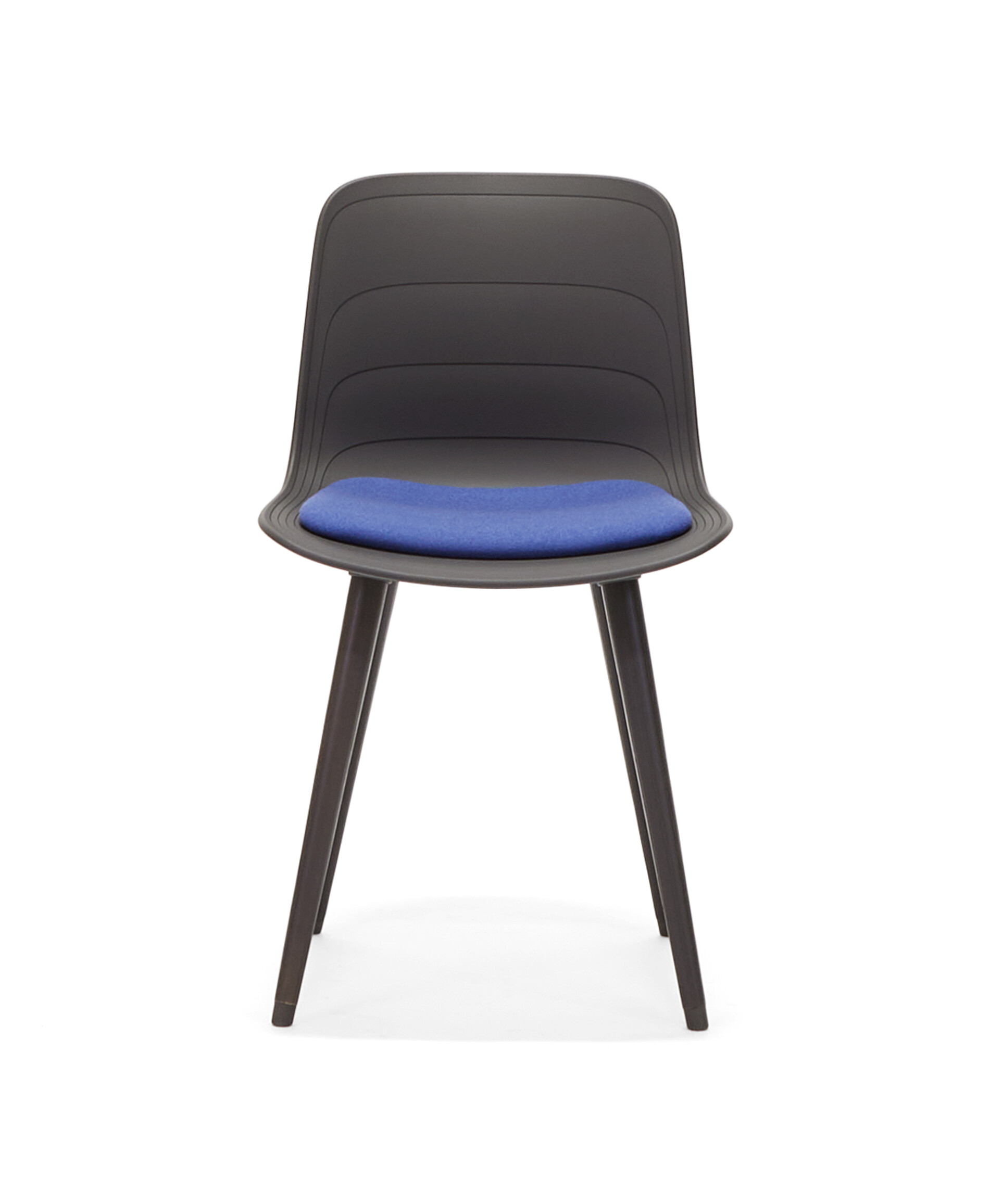

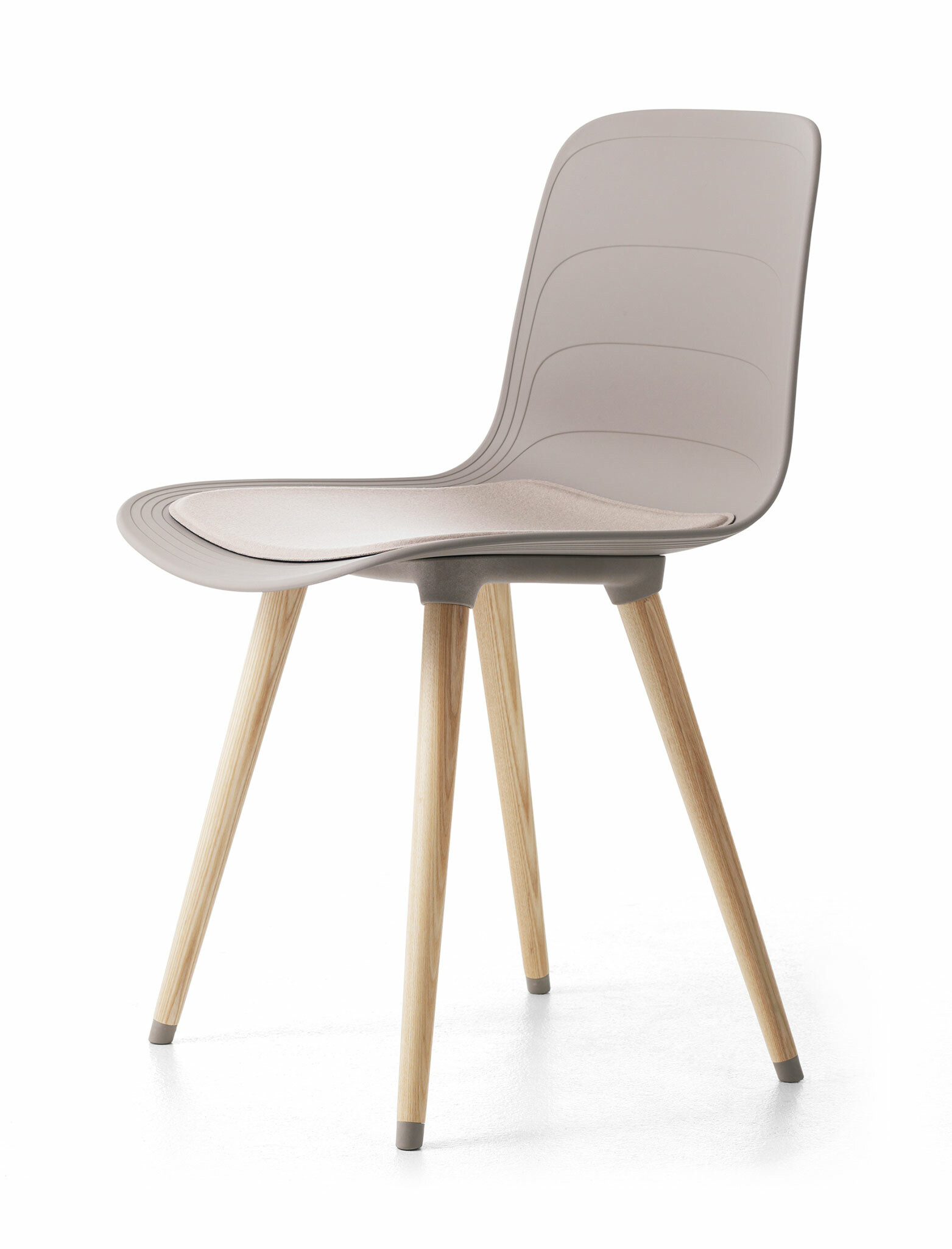

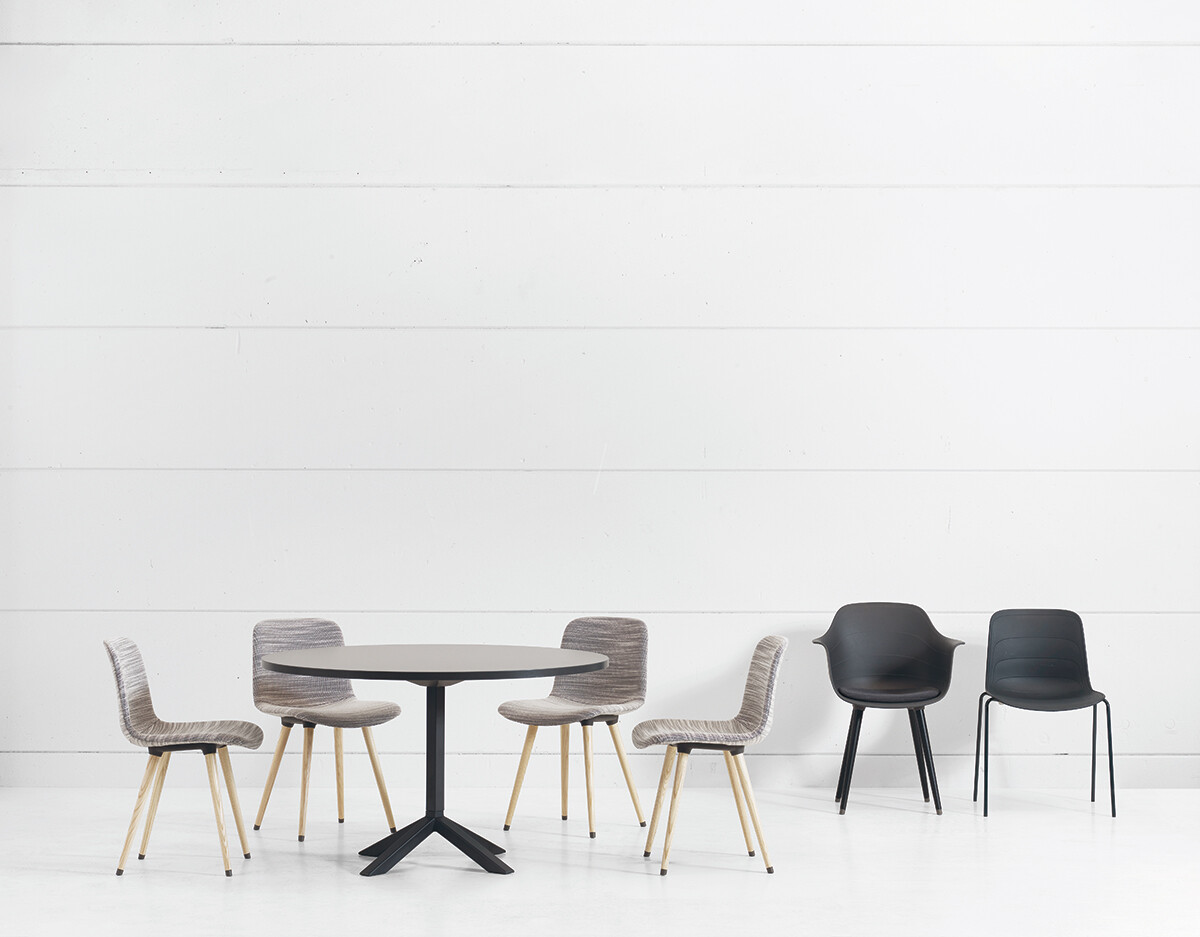

Chair wooden frame

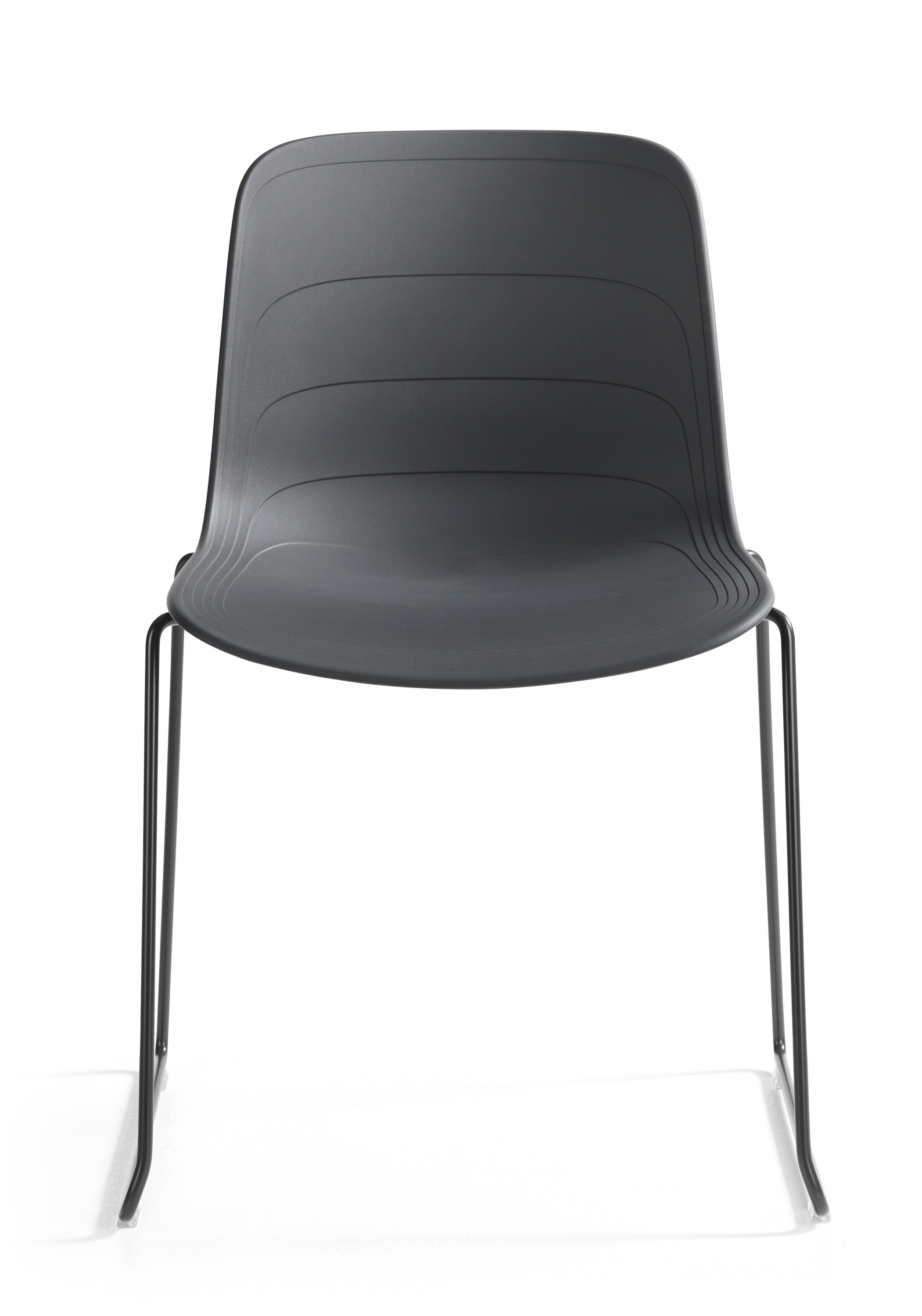

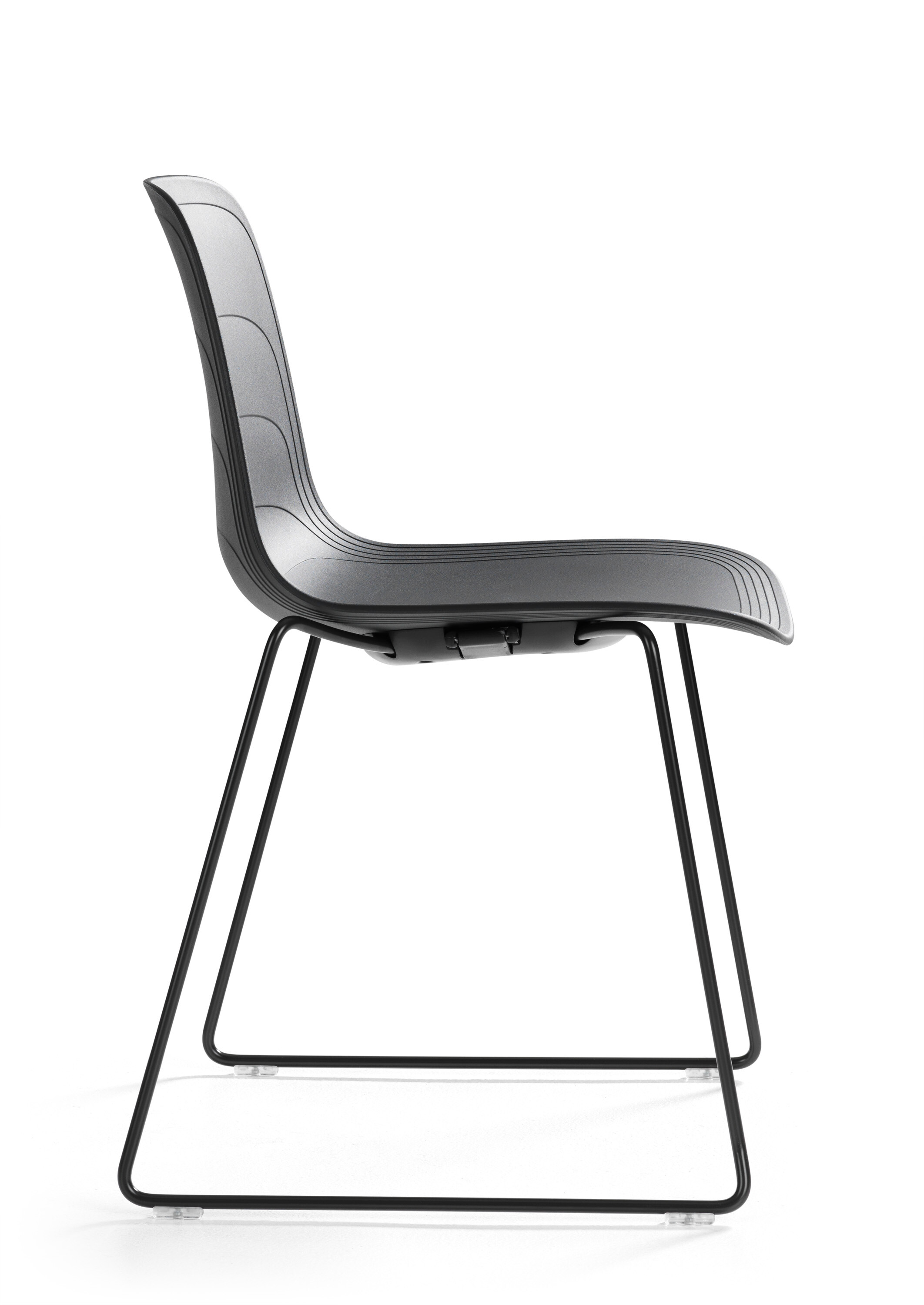

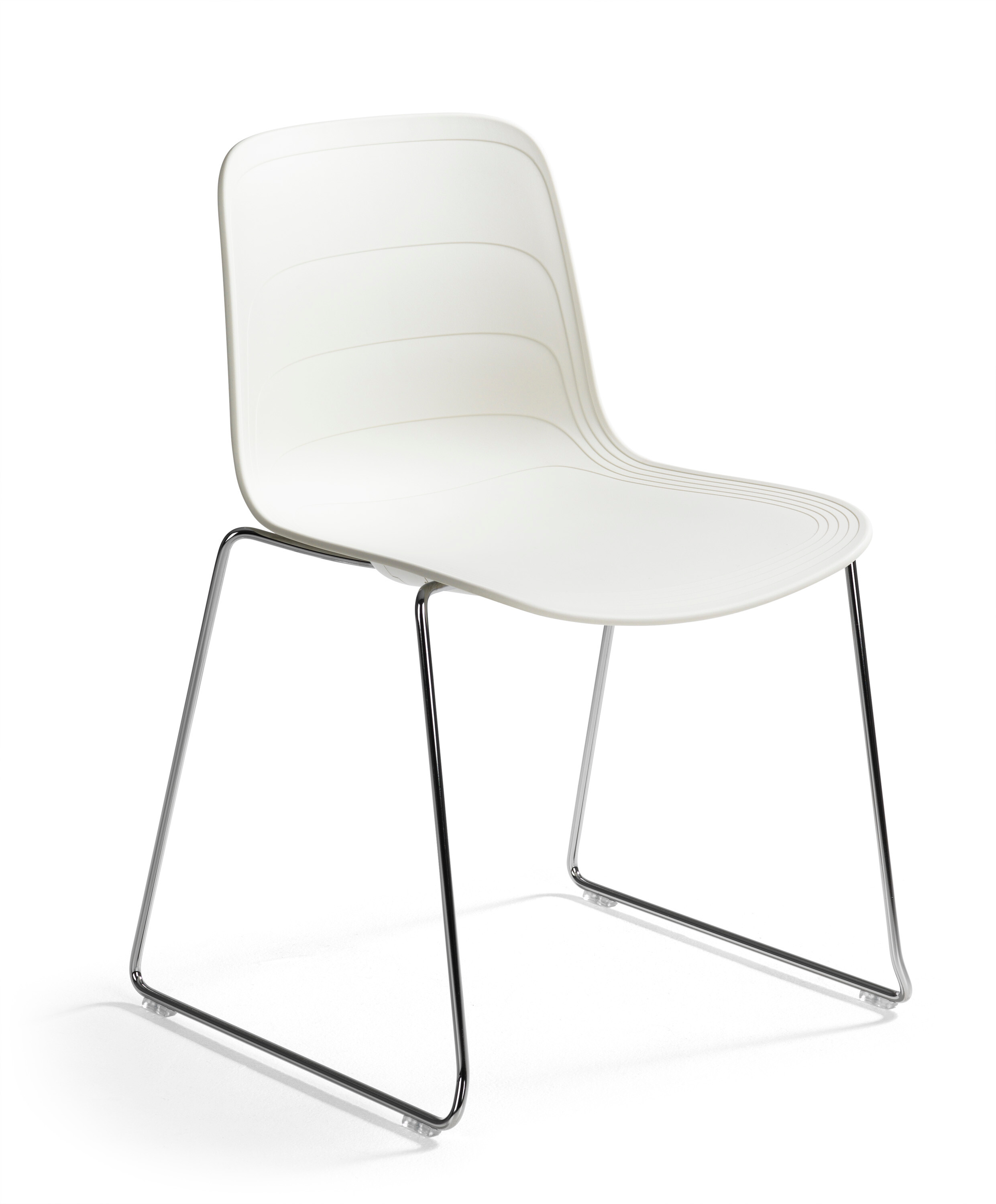

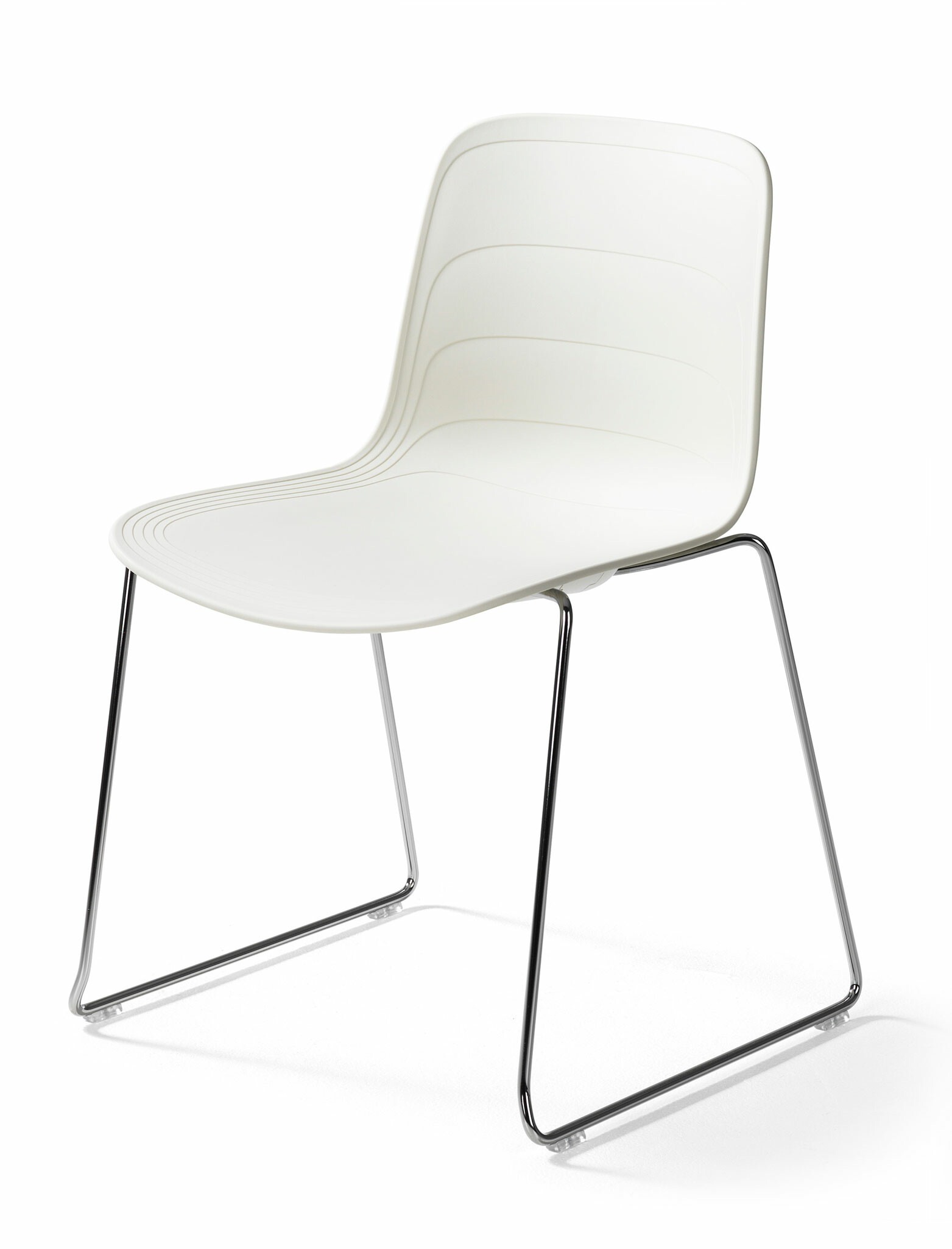

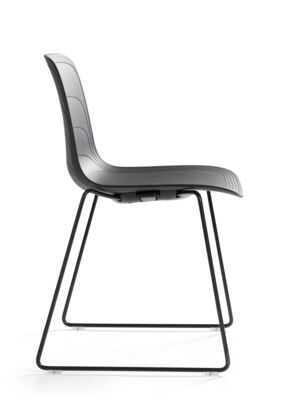

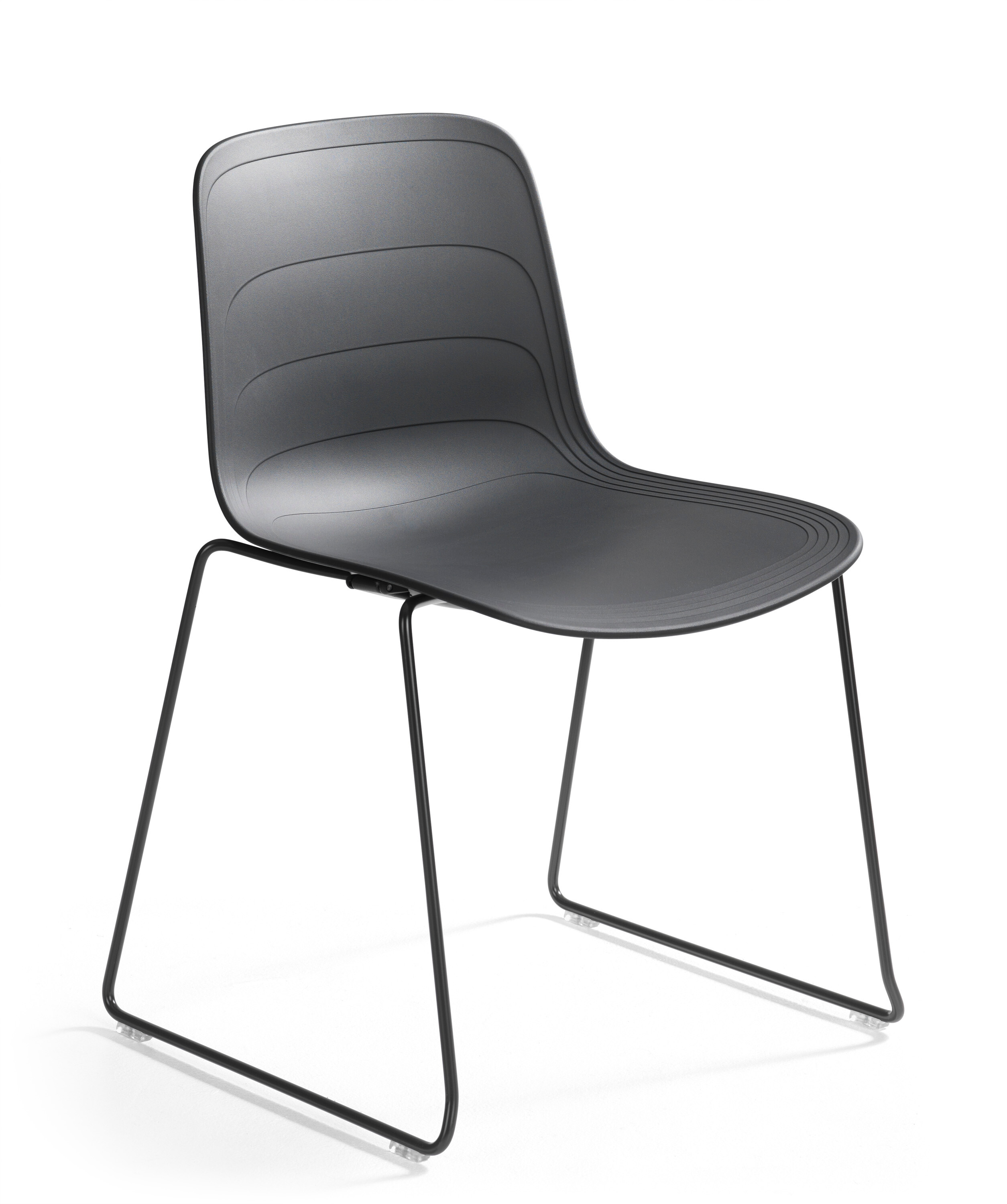

Grade – Chair sled baseGrade – Chair sled base

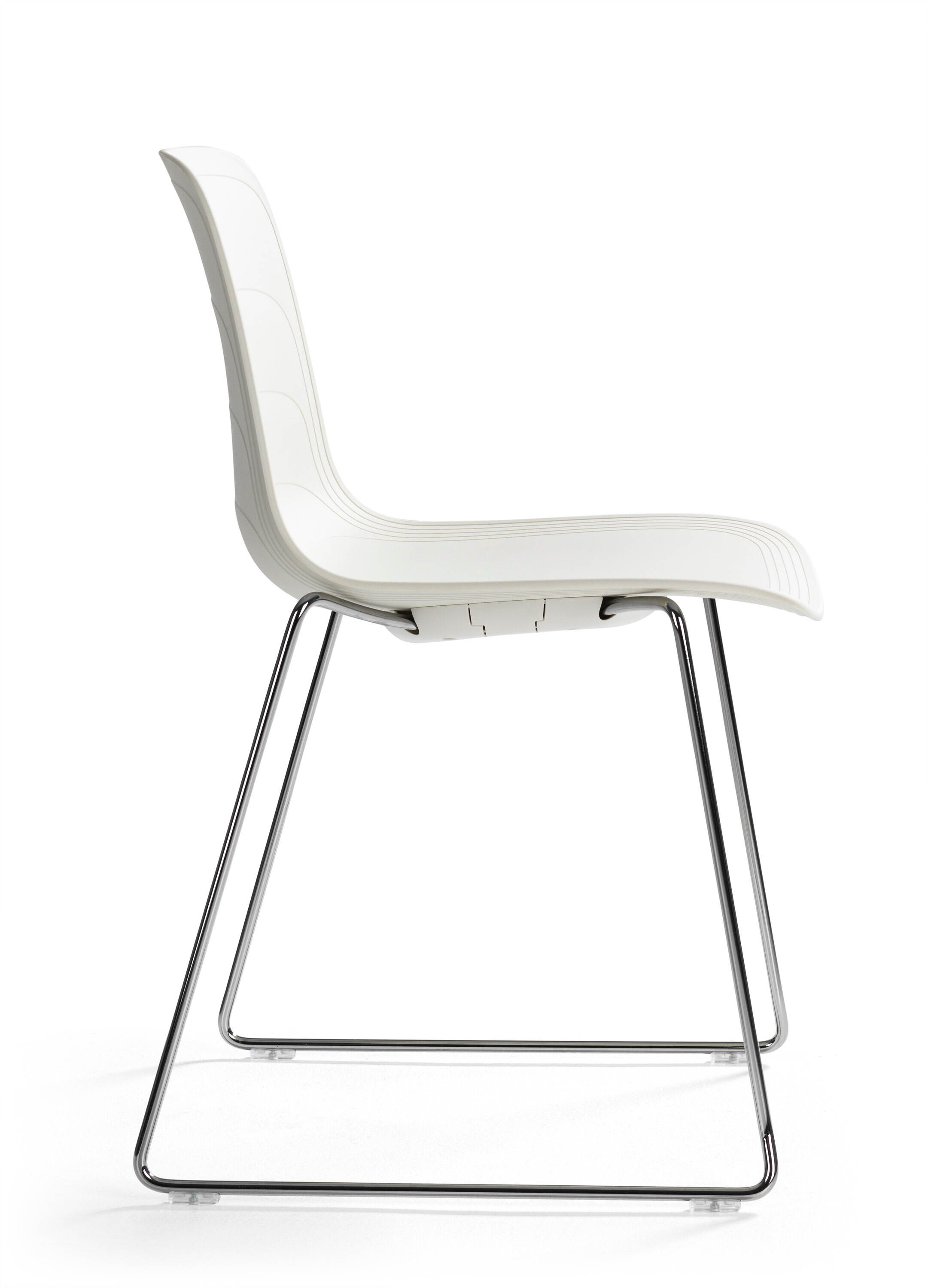

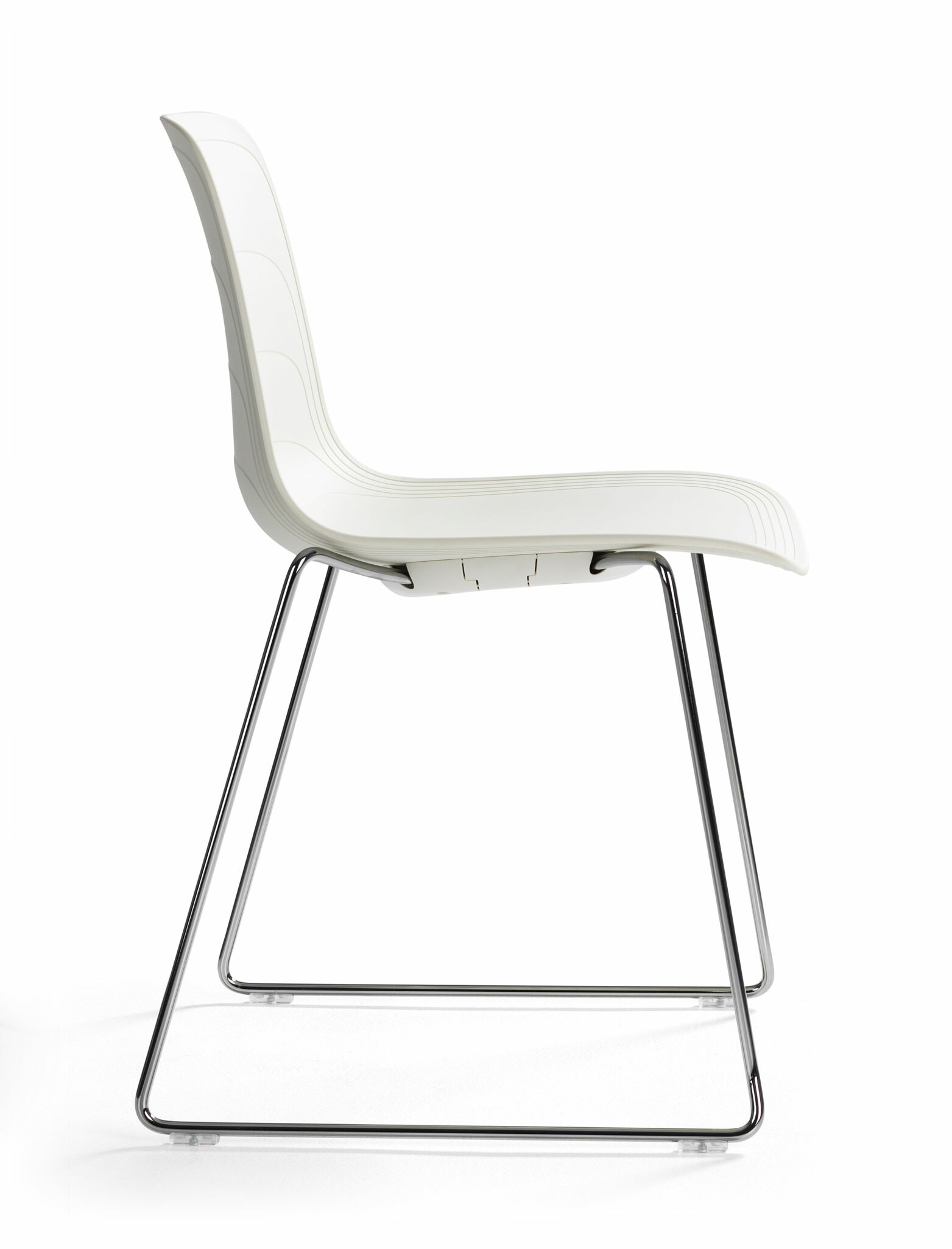

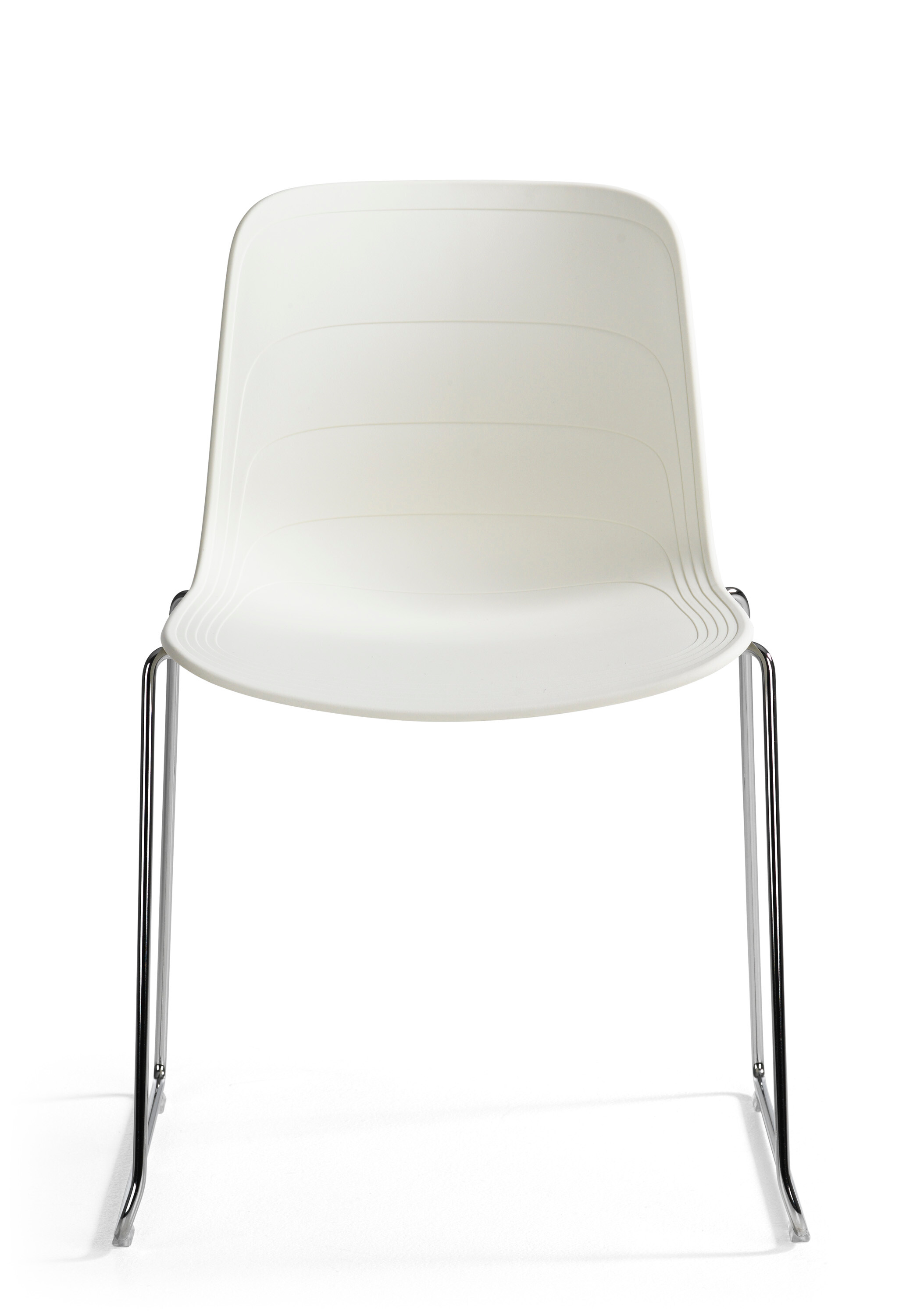

Chair sled base

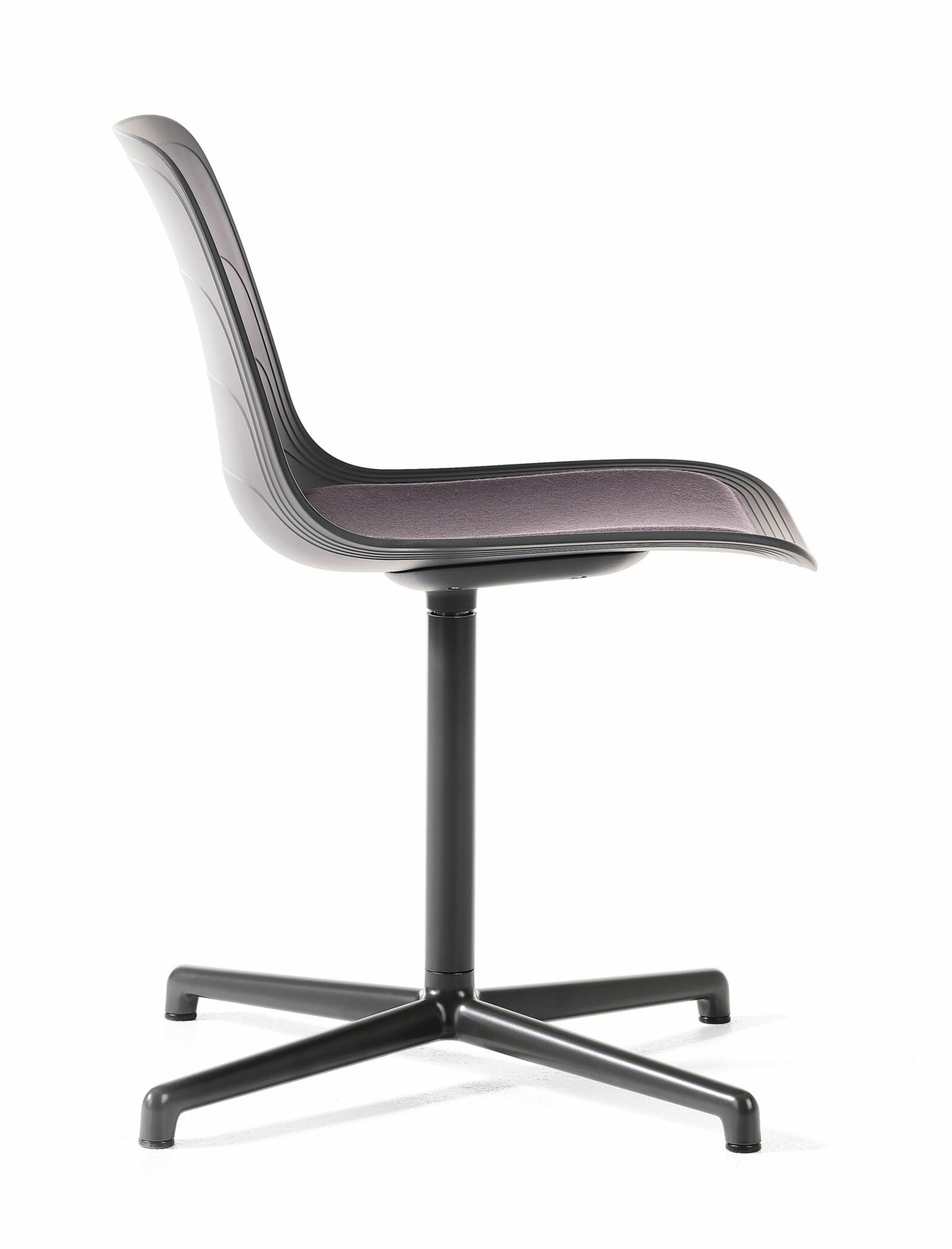

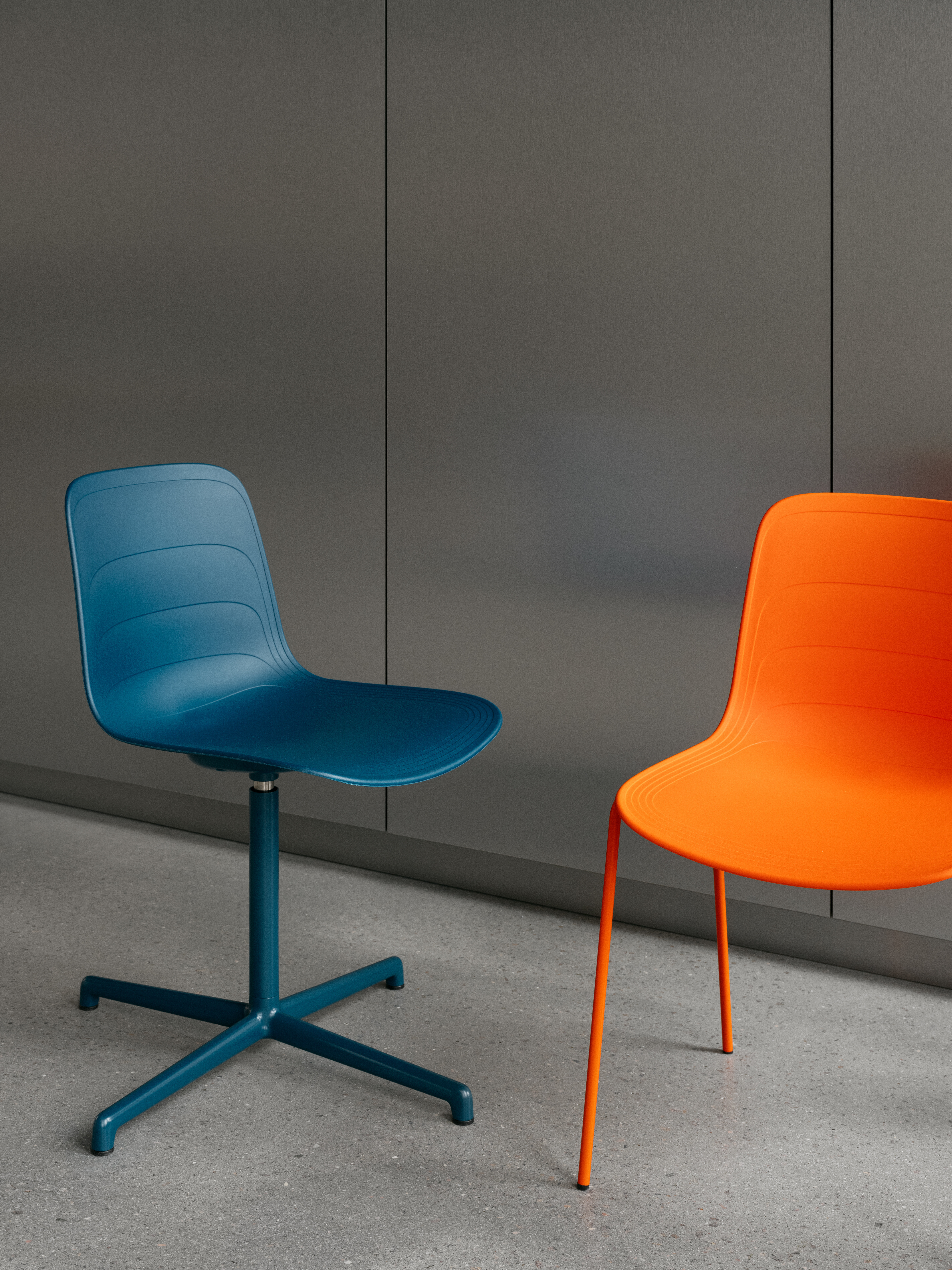

Grade – Chair swivelbaseGrade – Chair swivelbase

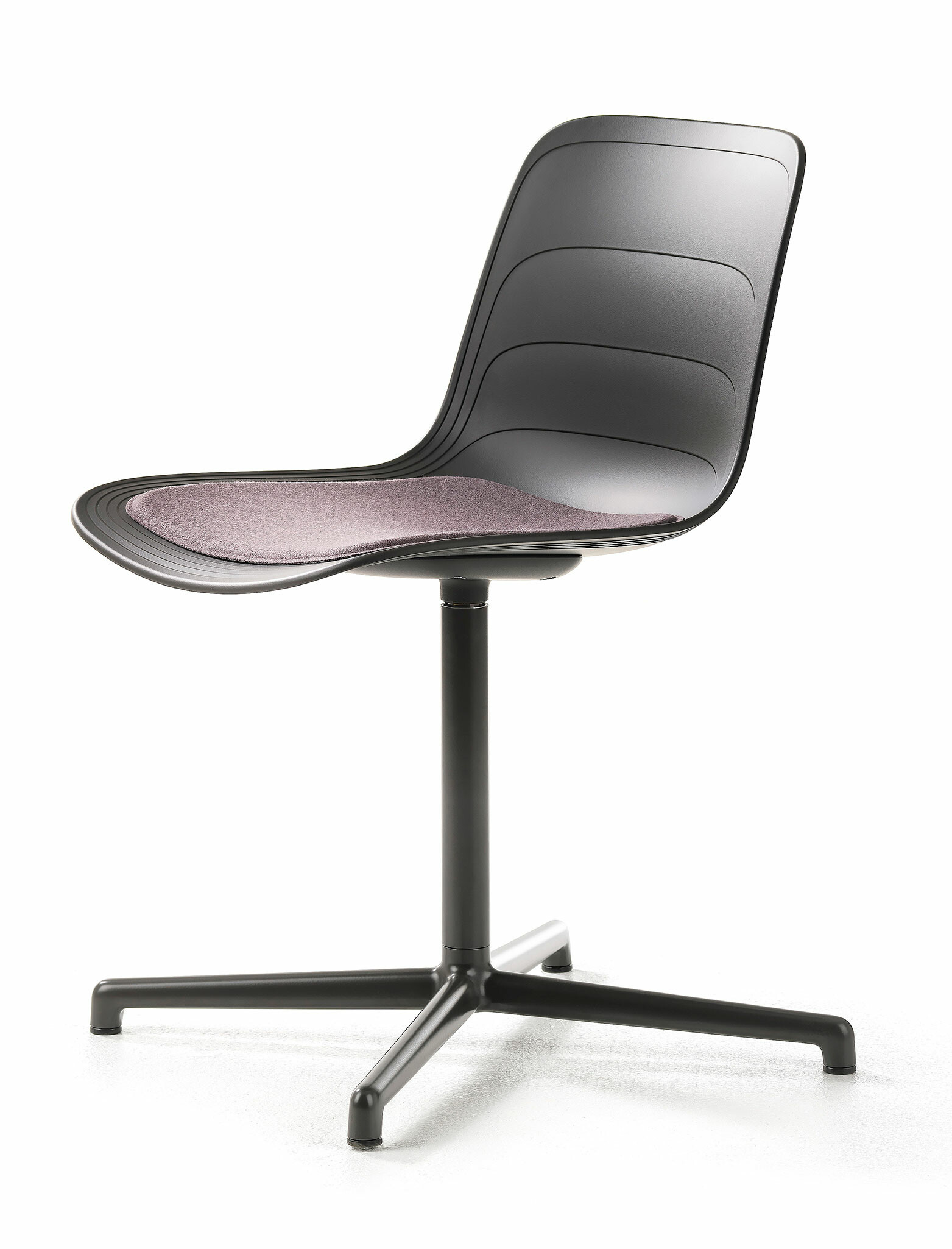

Chair swivelbase

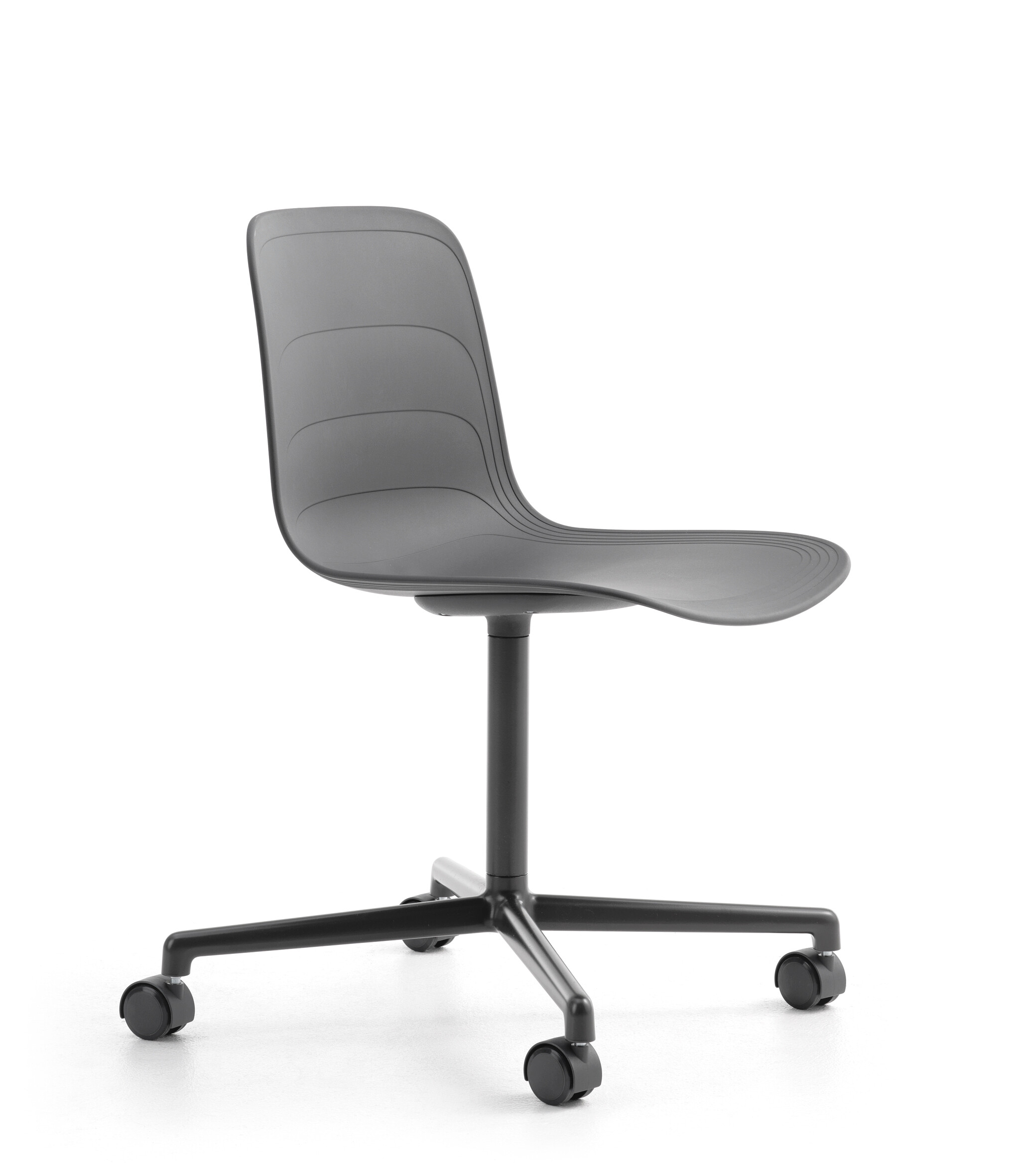

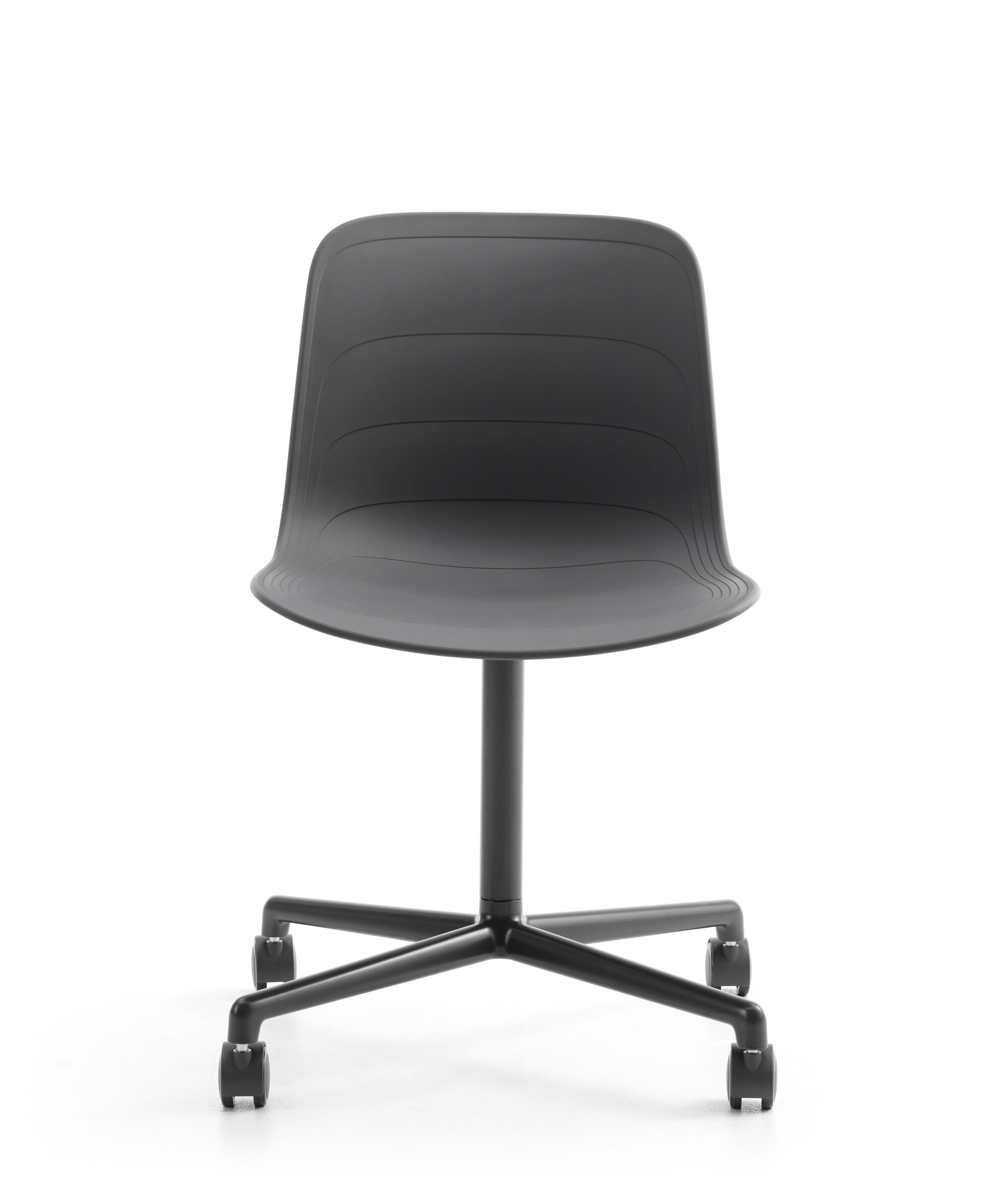

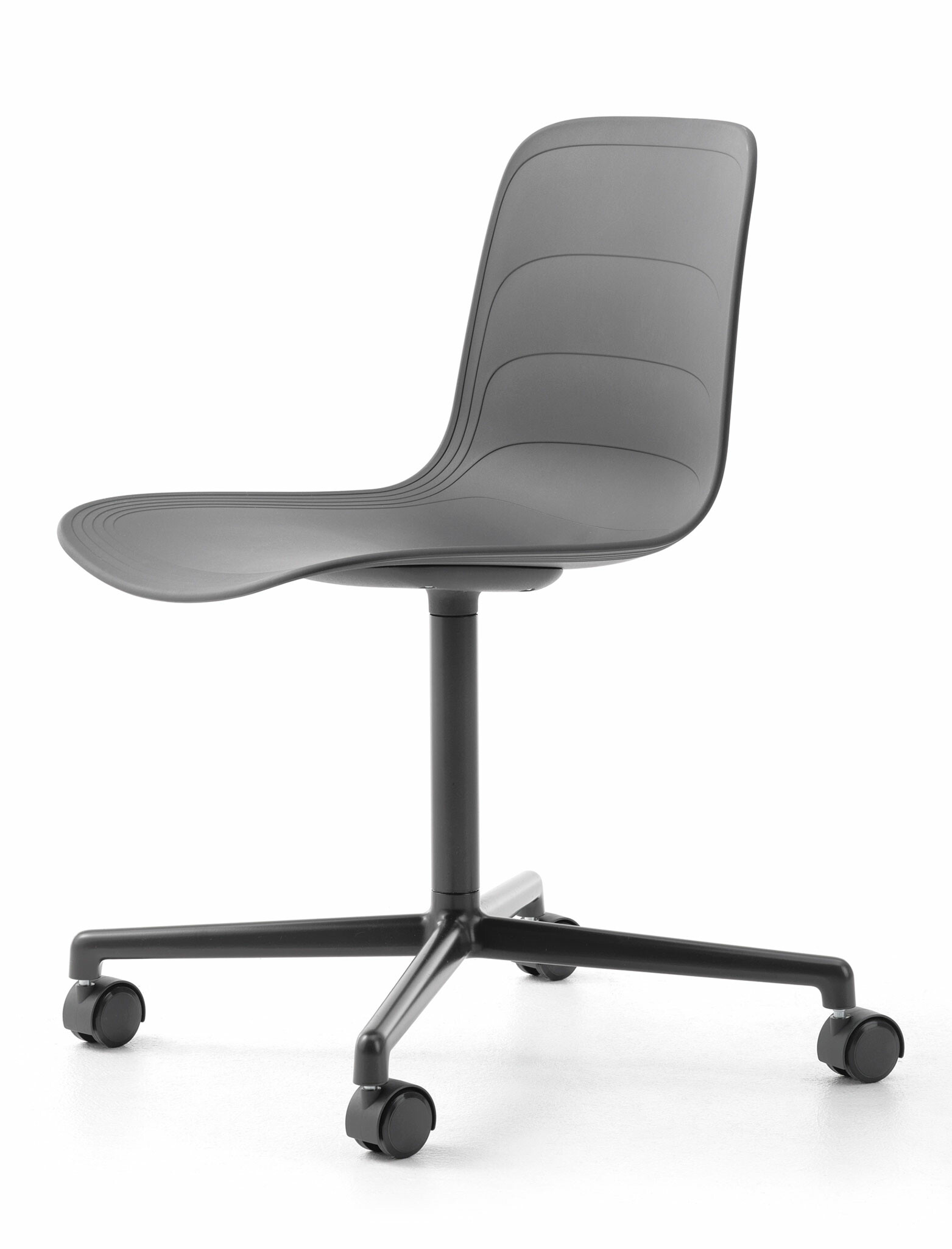

Grade – Chair swivelbase castersGrade – Chair swivelbase casters

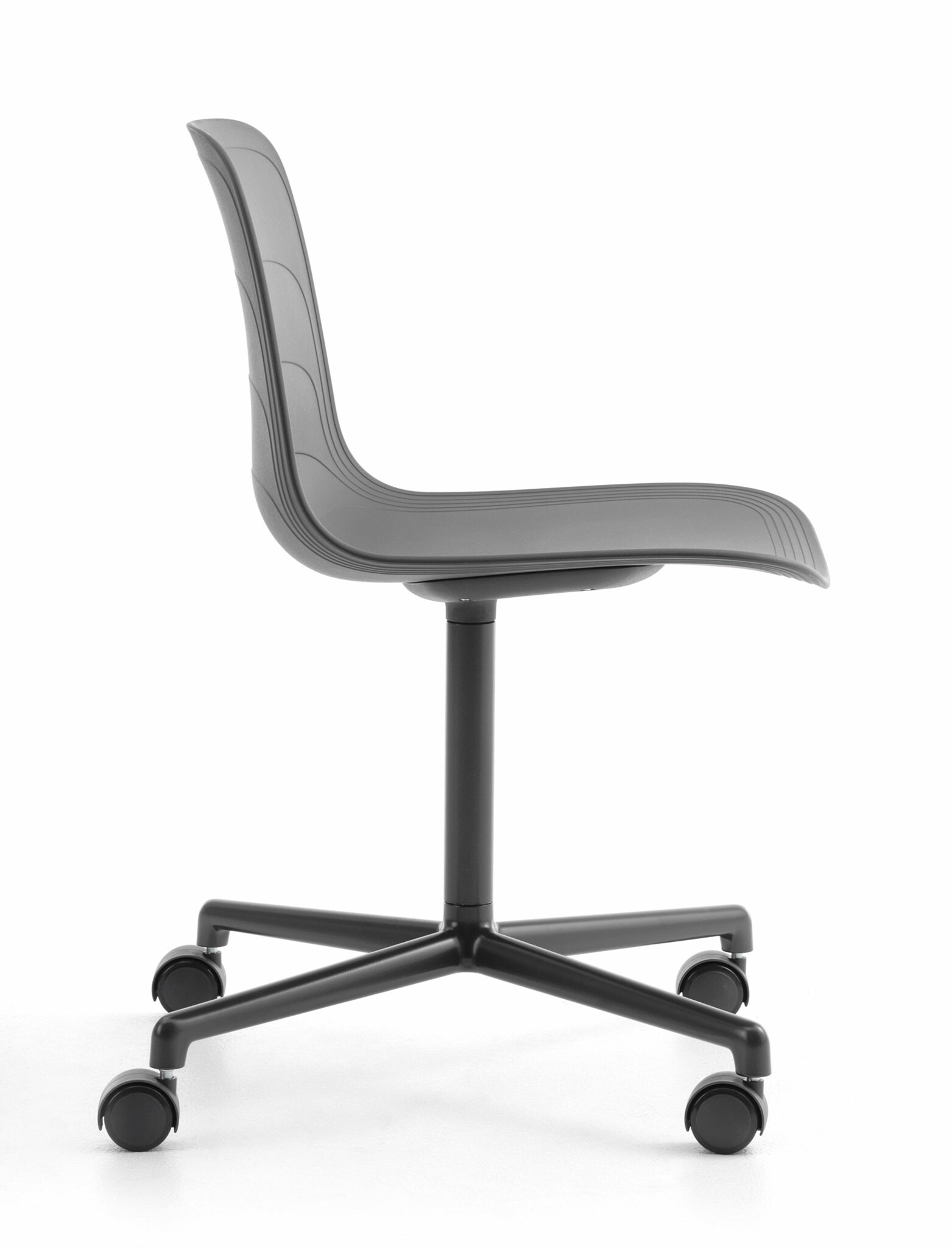

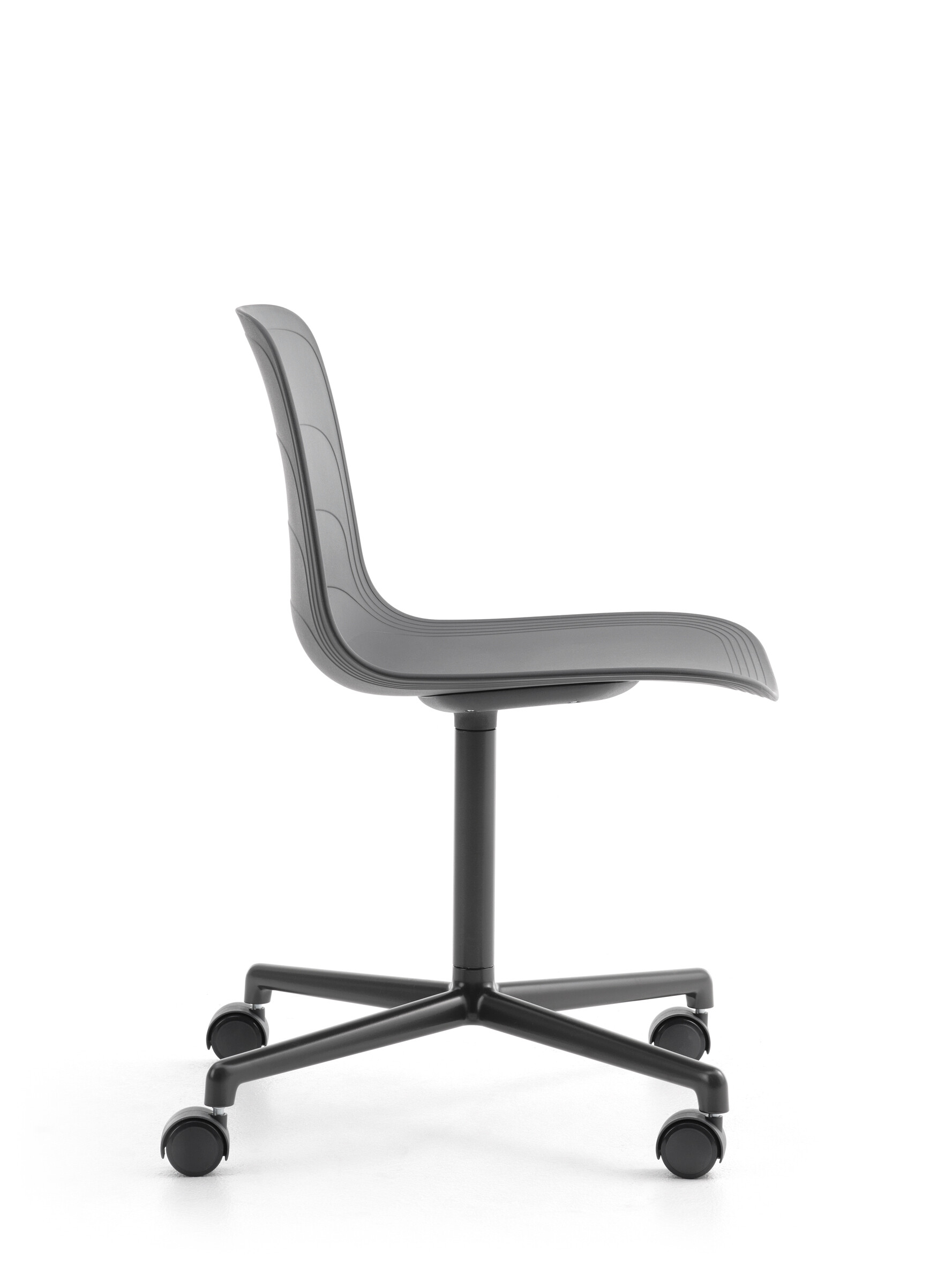

Chair swivelbase casters

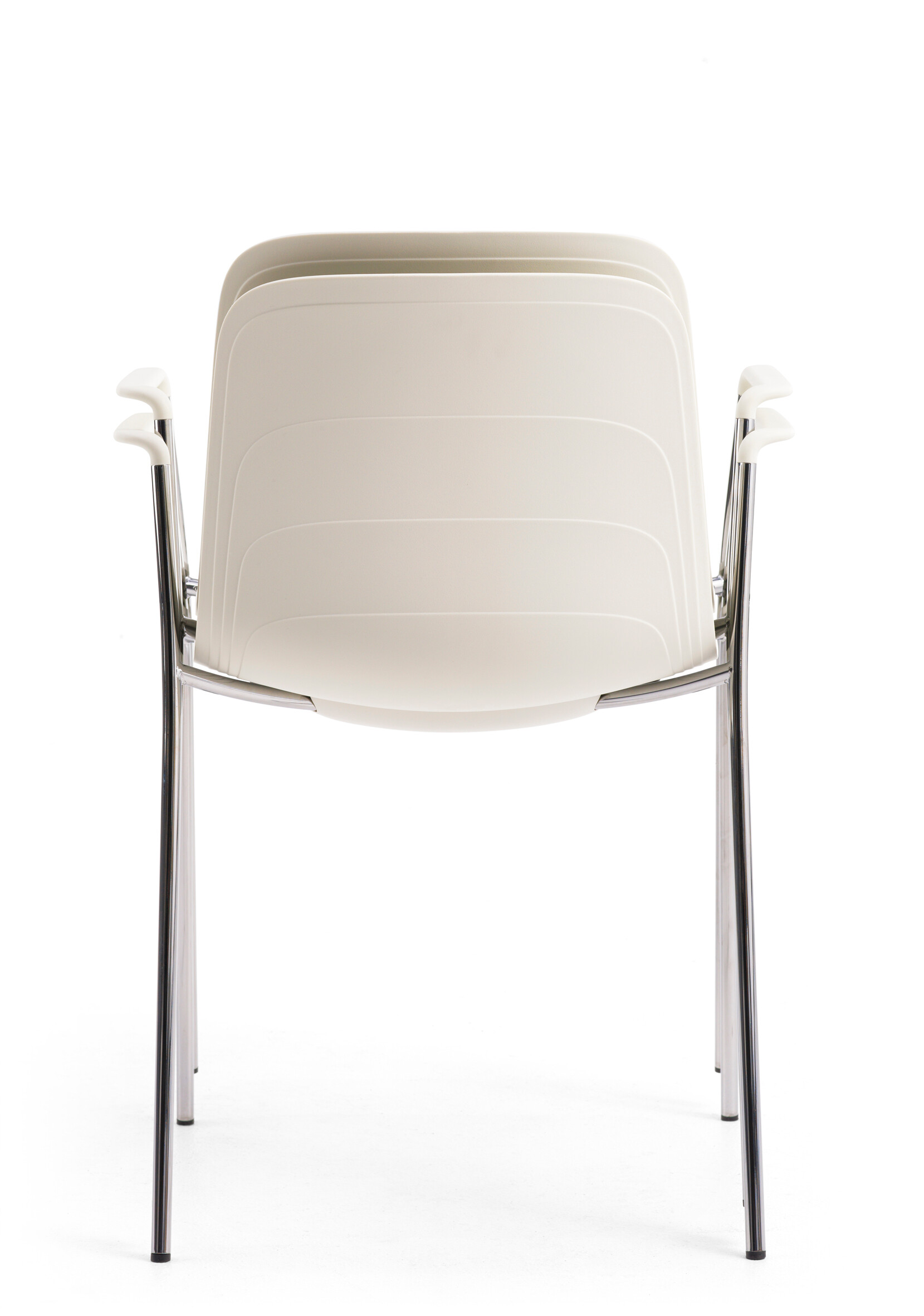

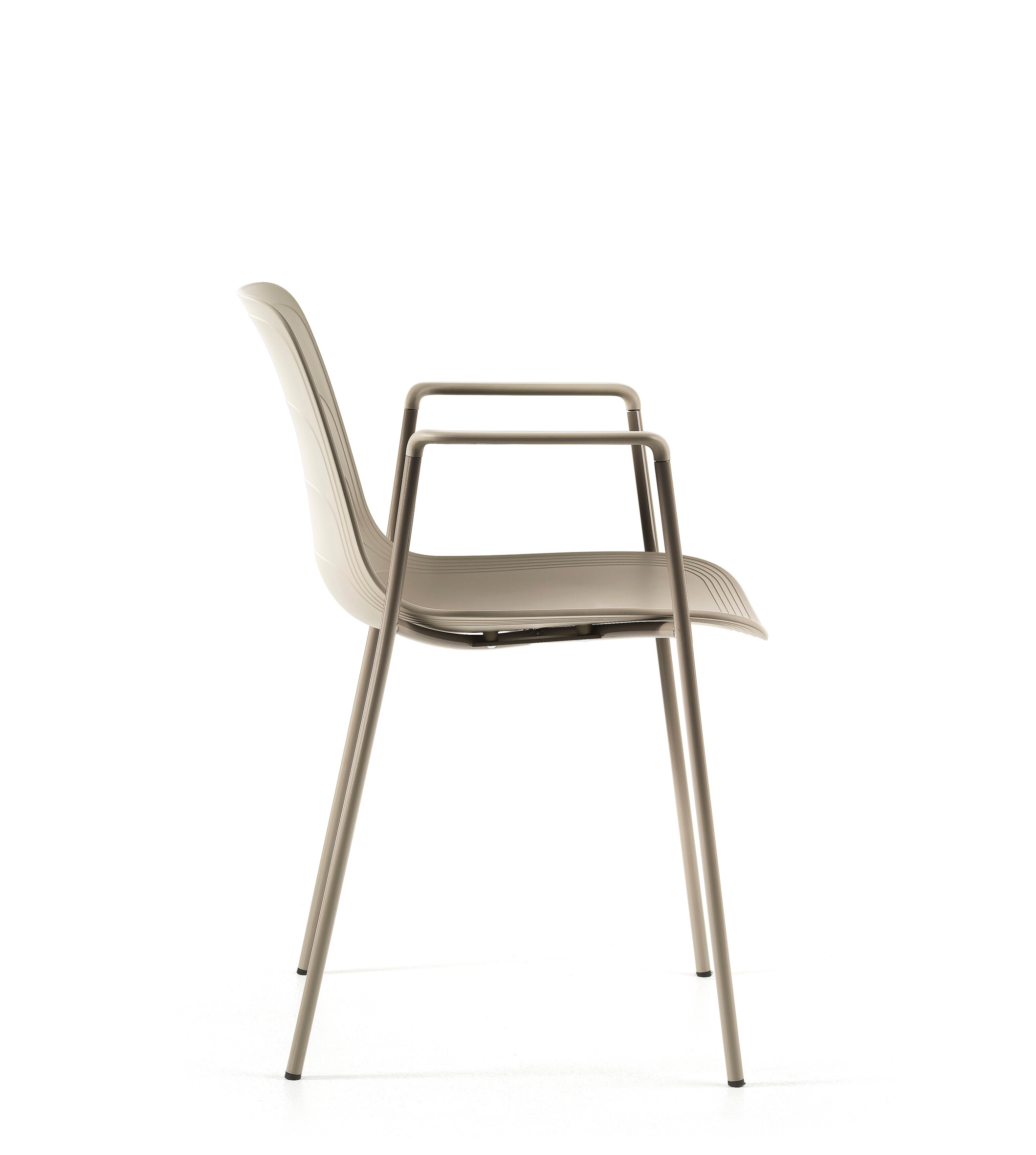

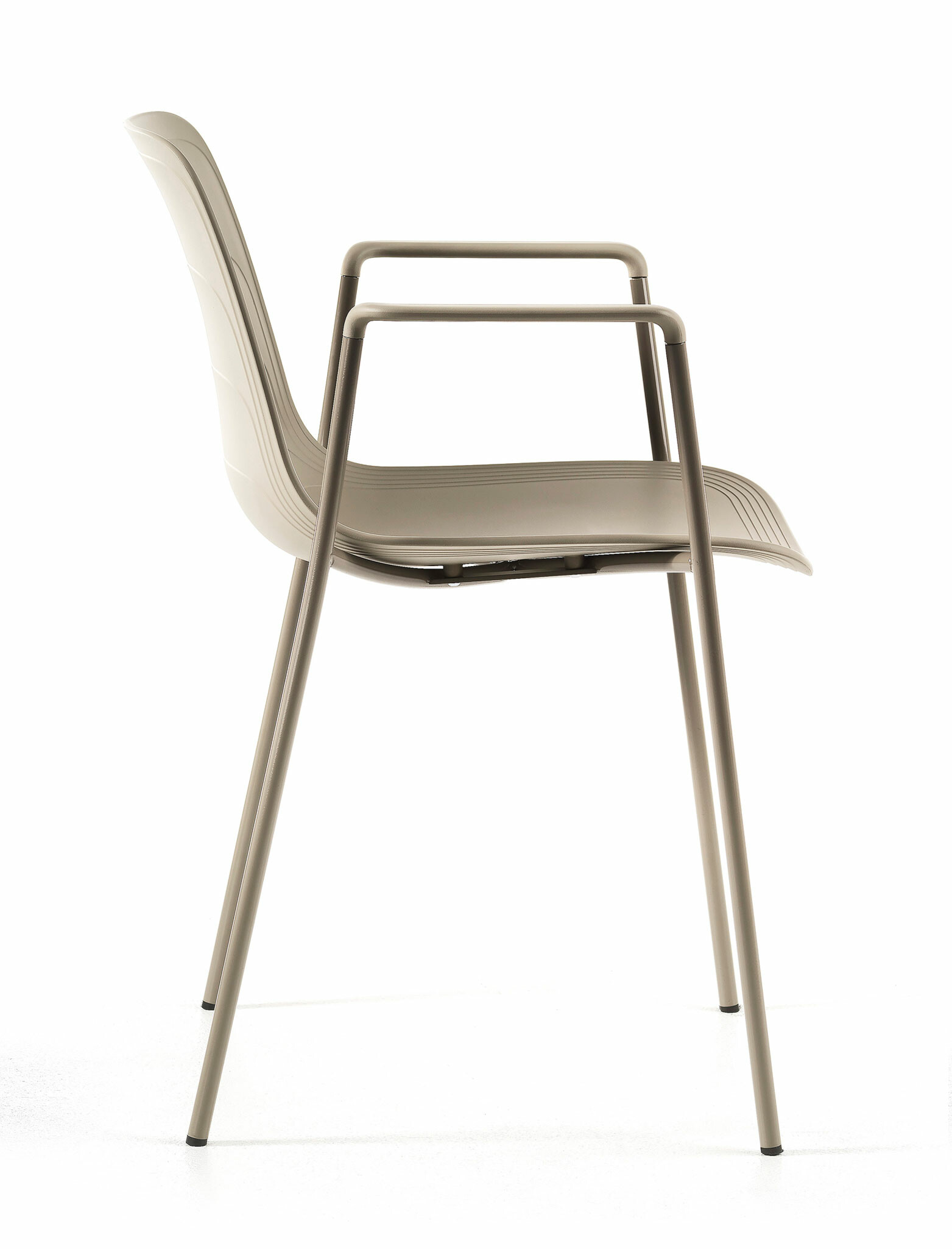

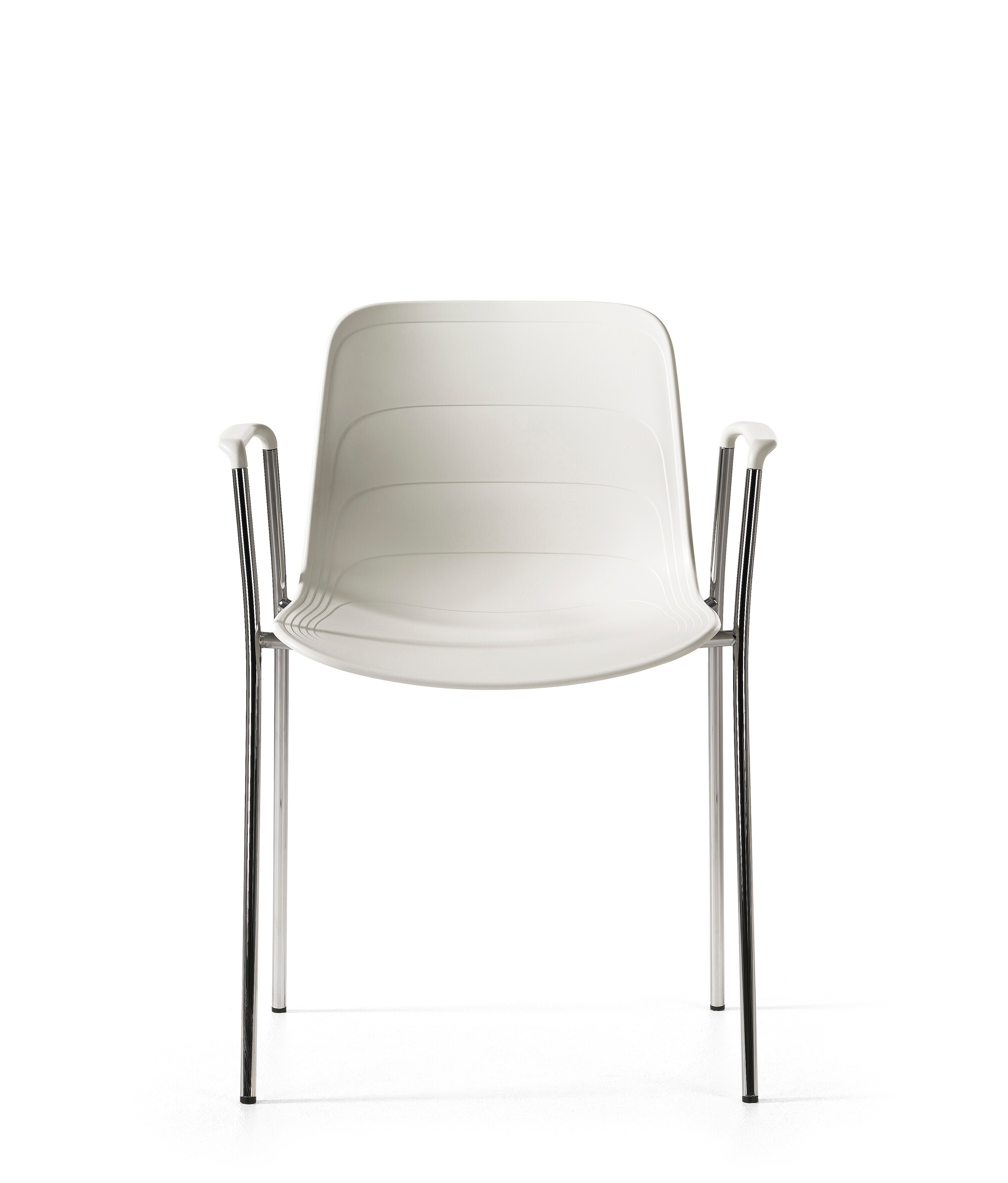

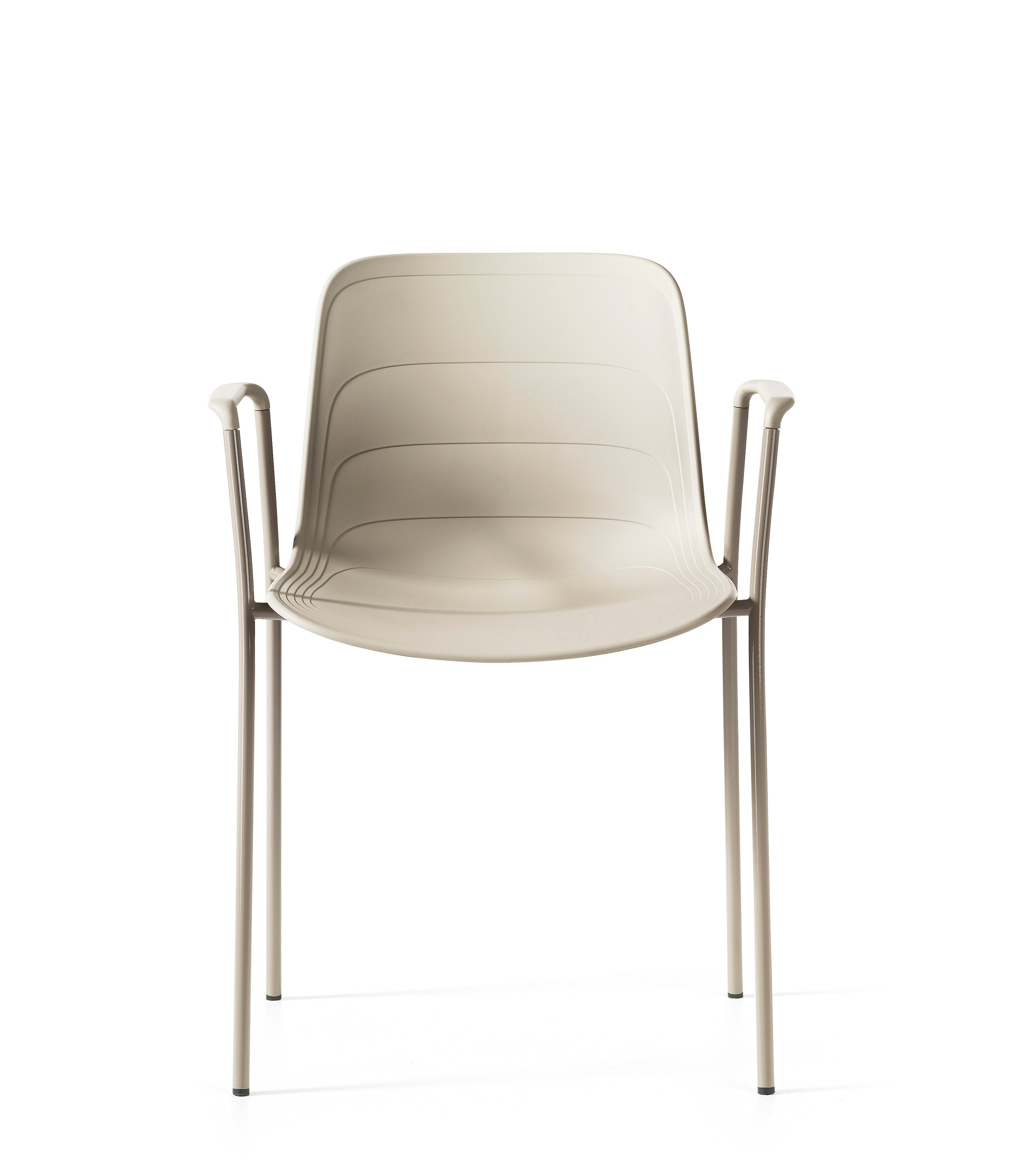

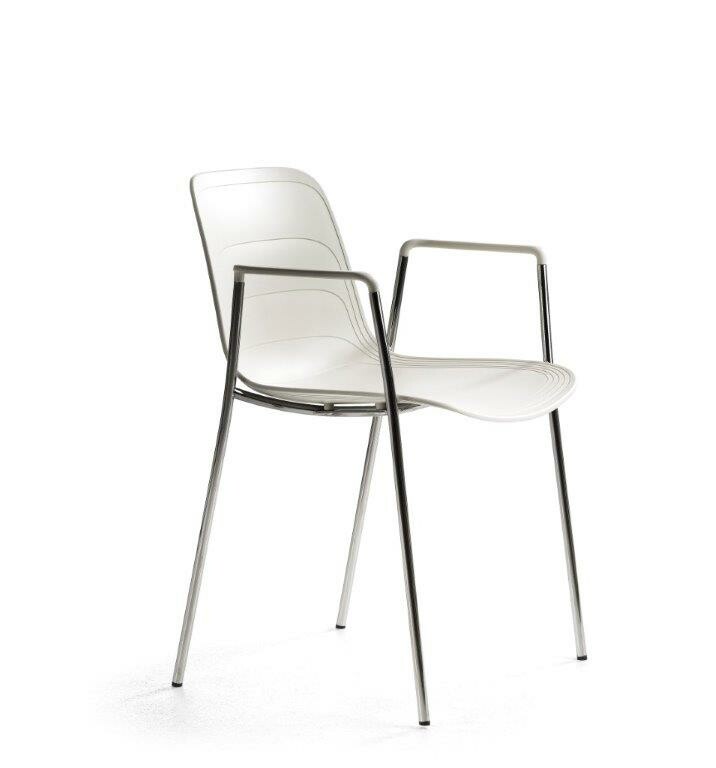

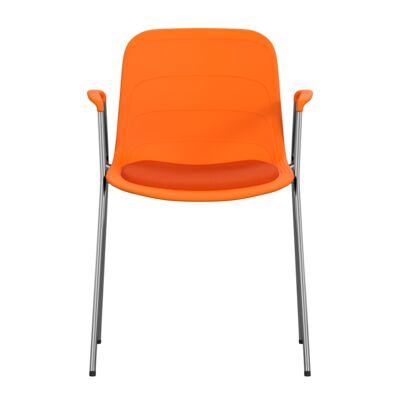

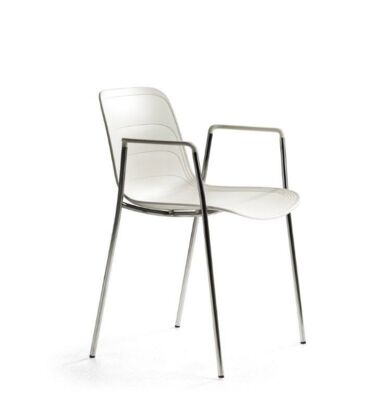

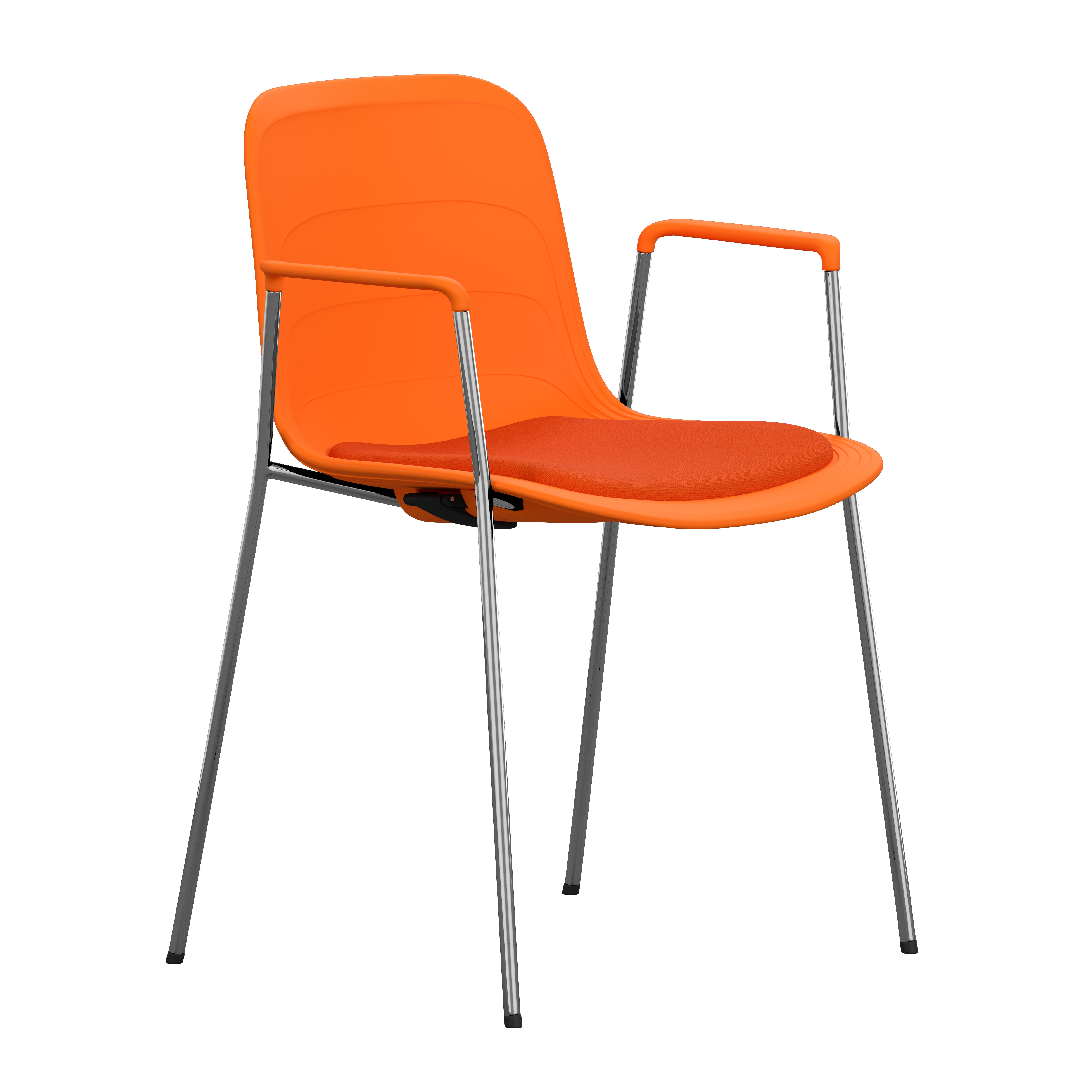

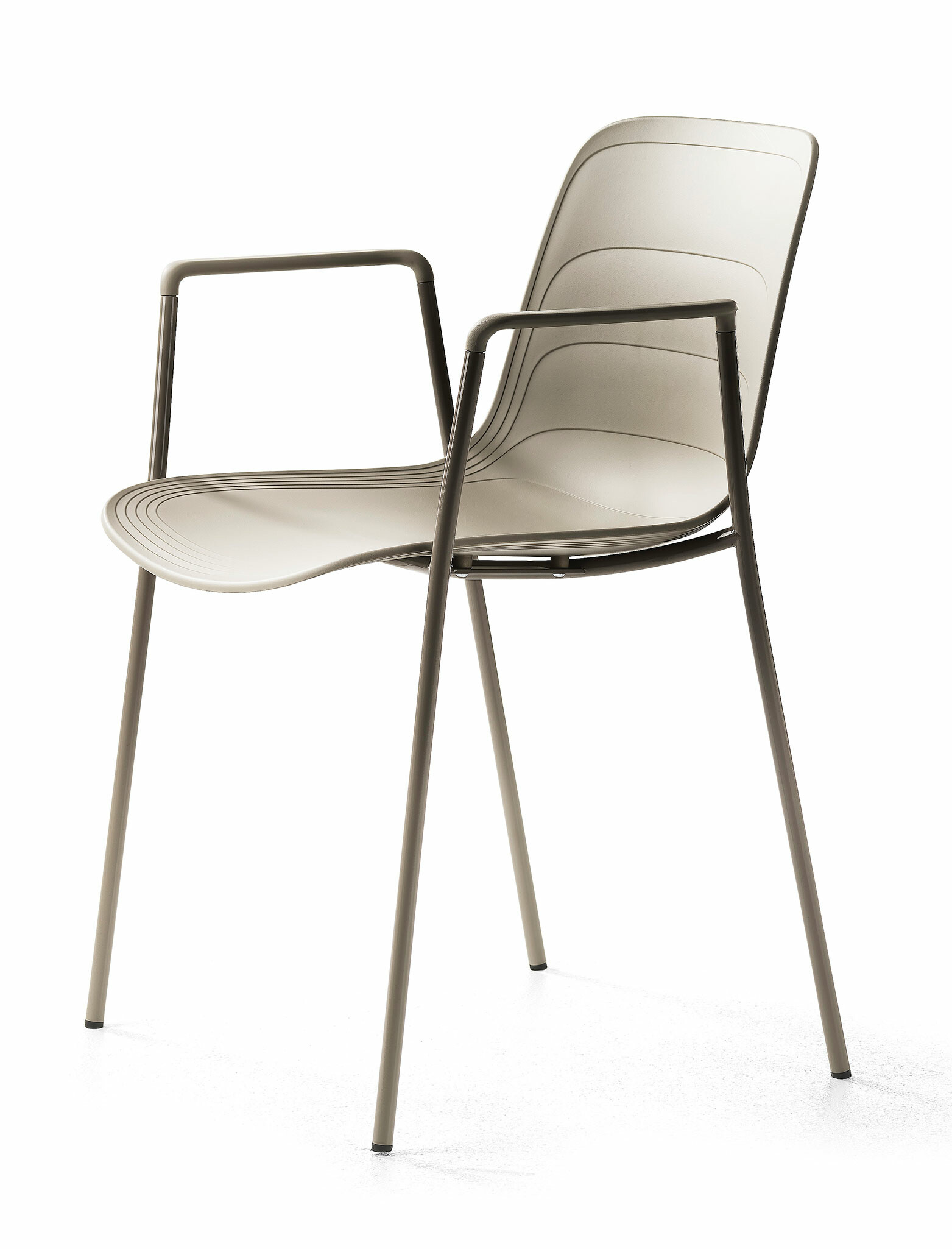

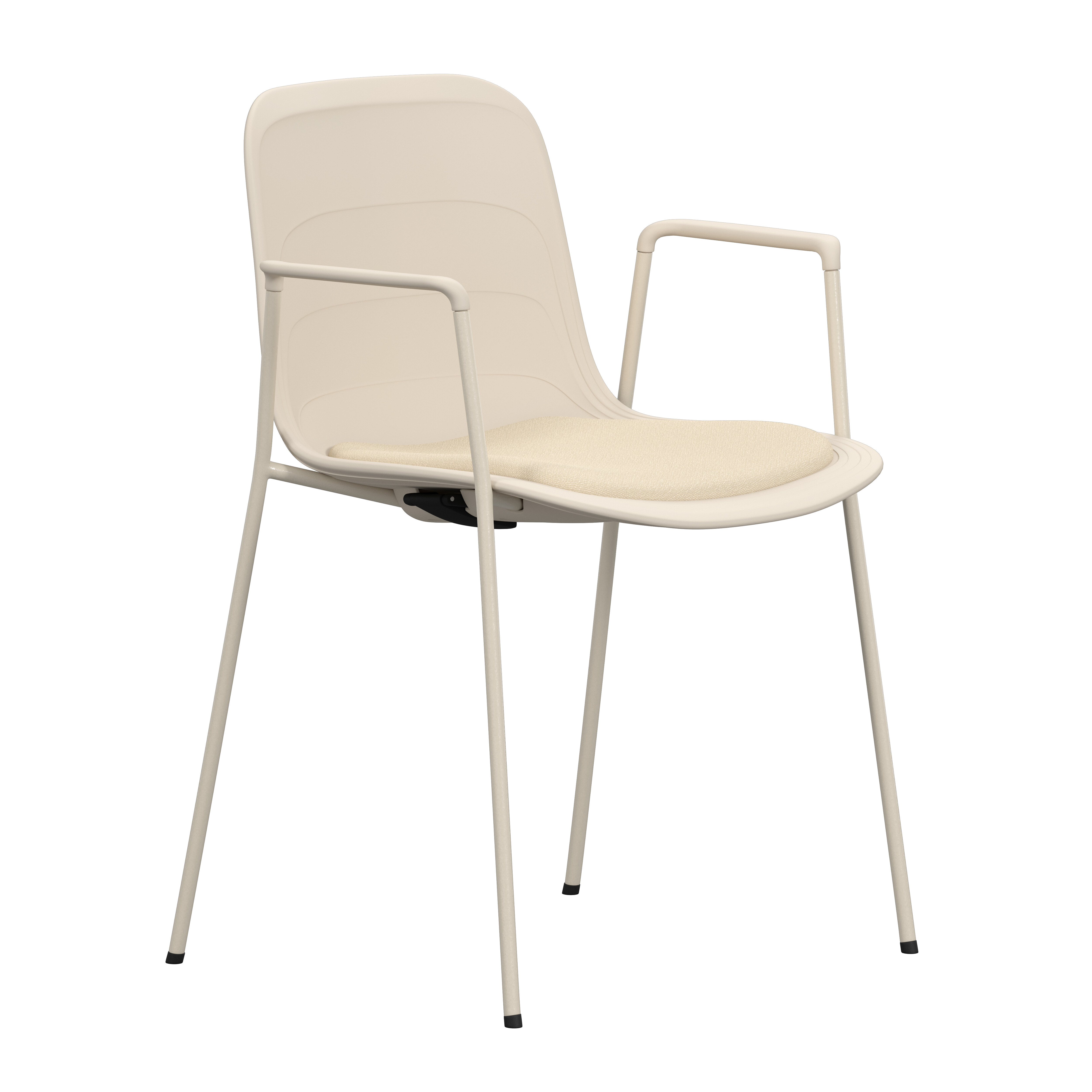

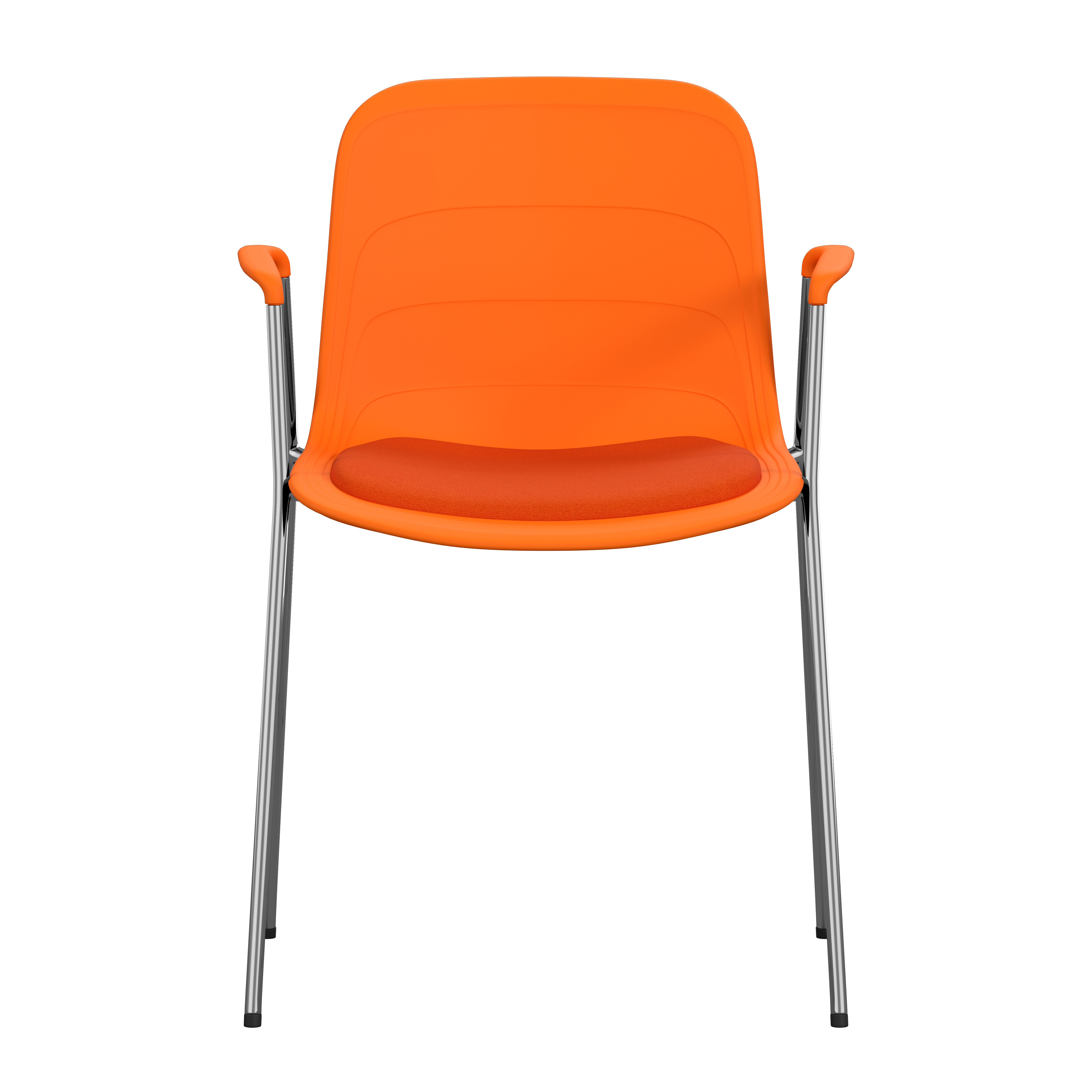

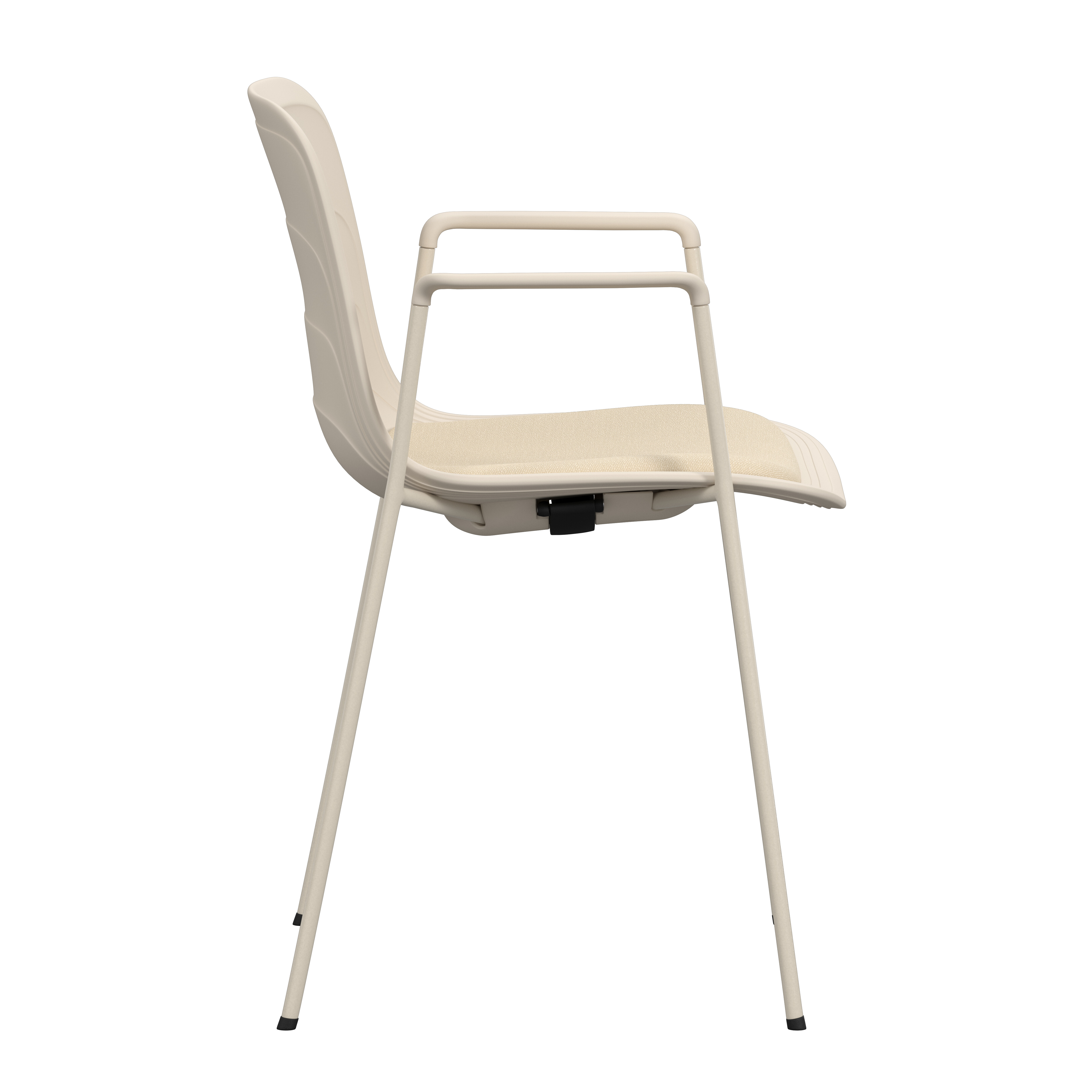

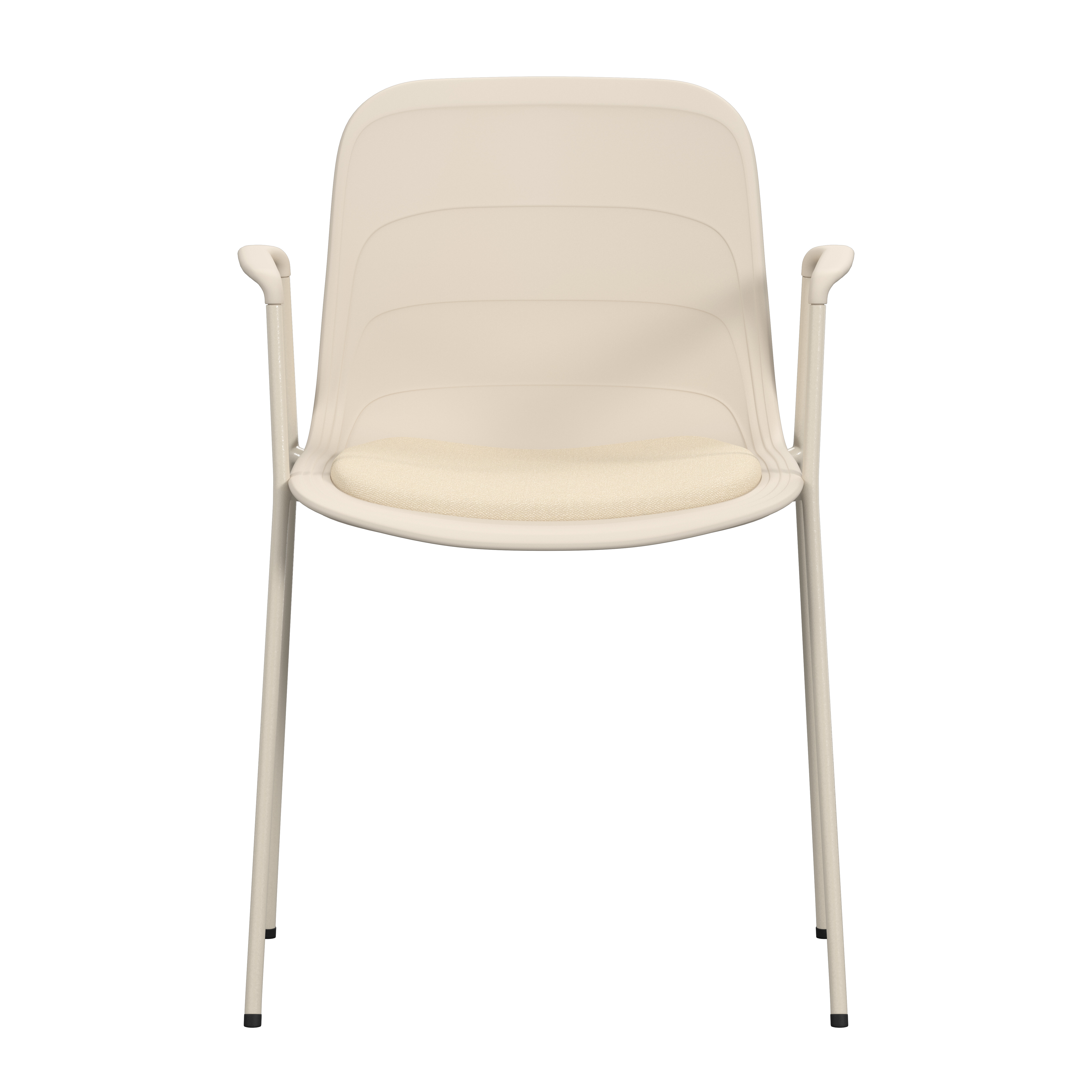

Grade –  Armchair 4 legsGrade –  Armchair 4 legs

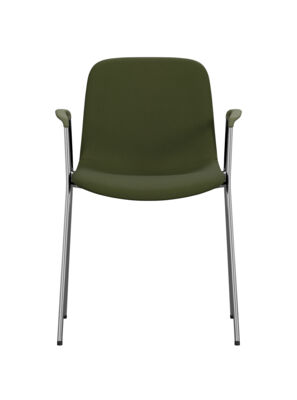

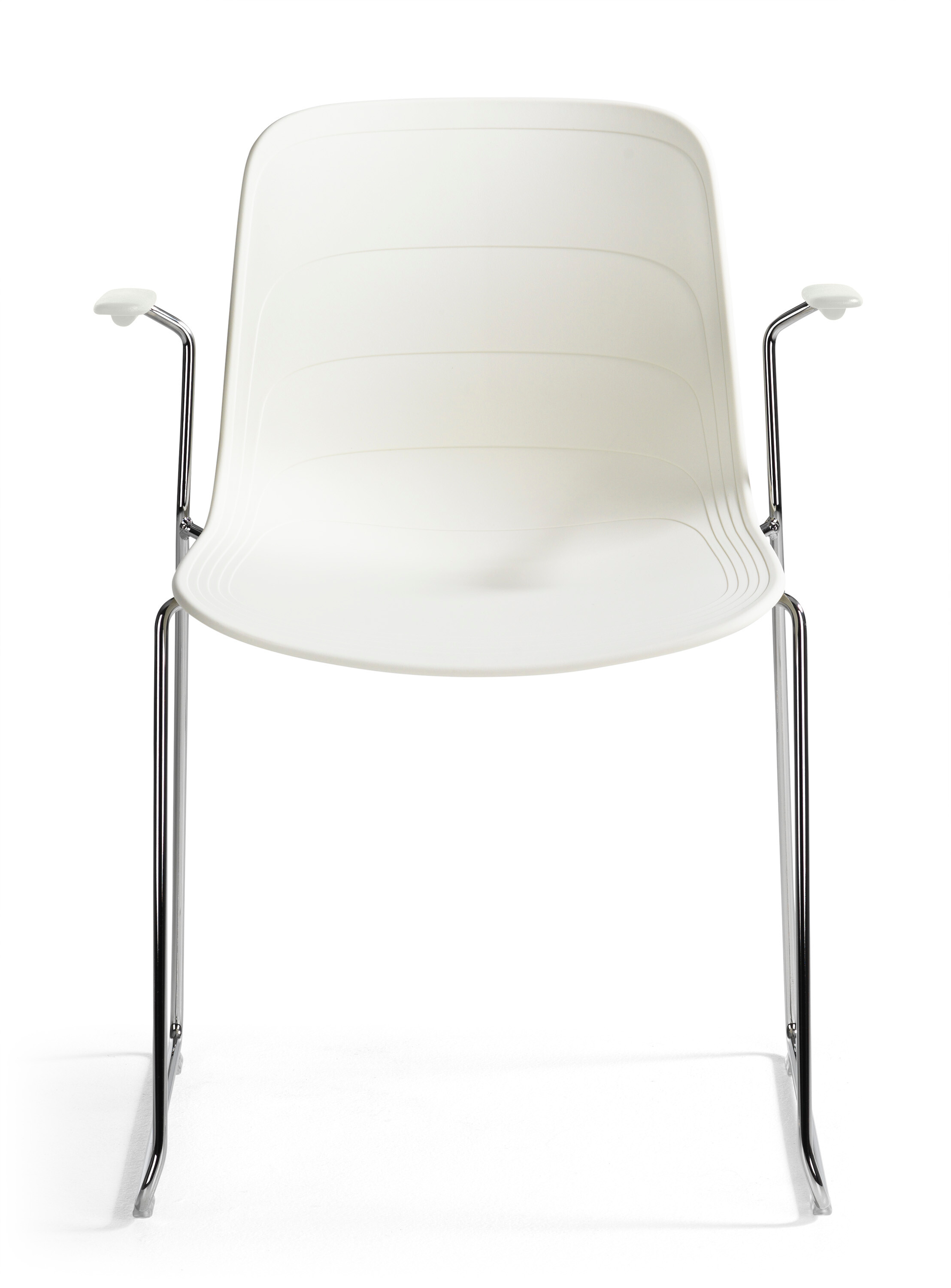

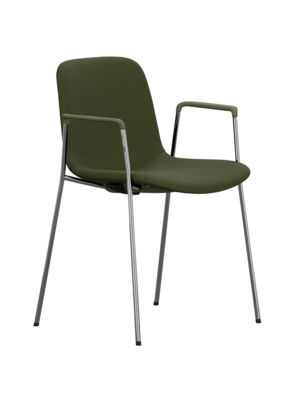

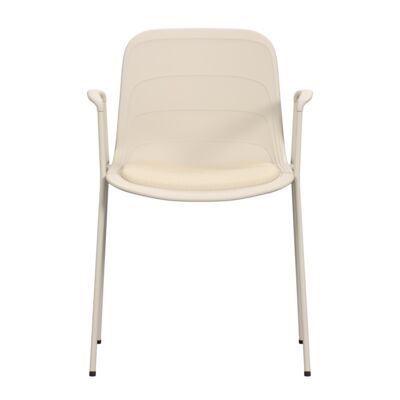

Armchair 4 legs

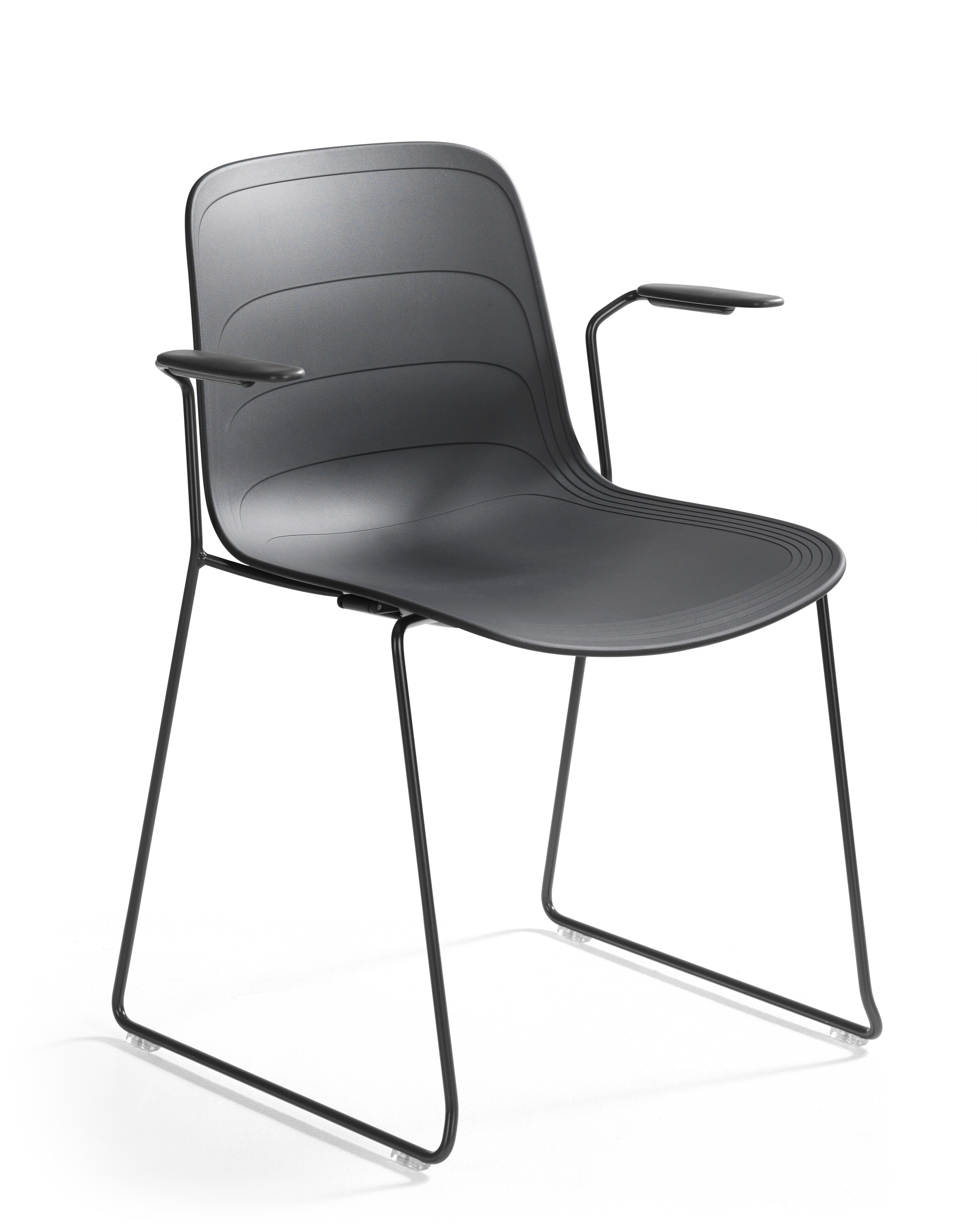

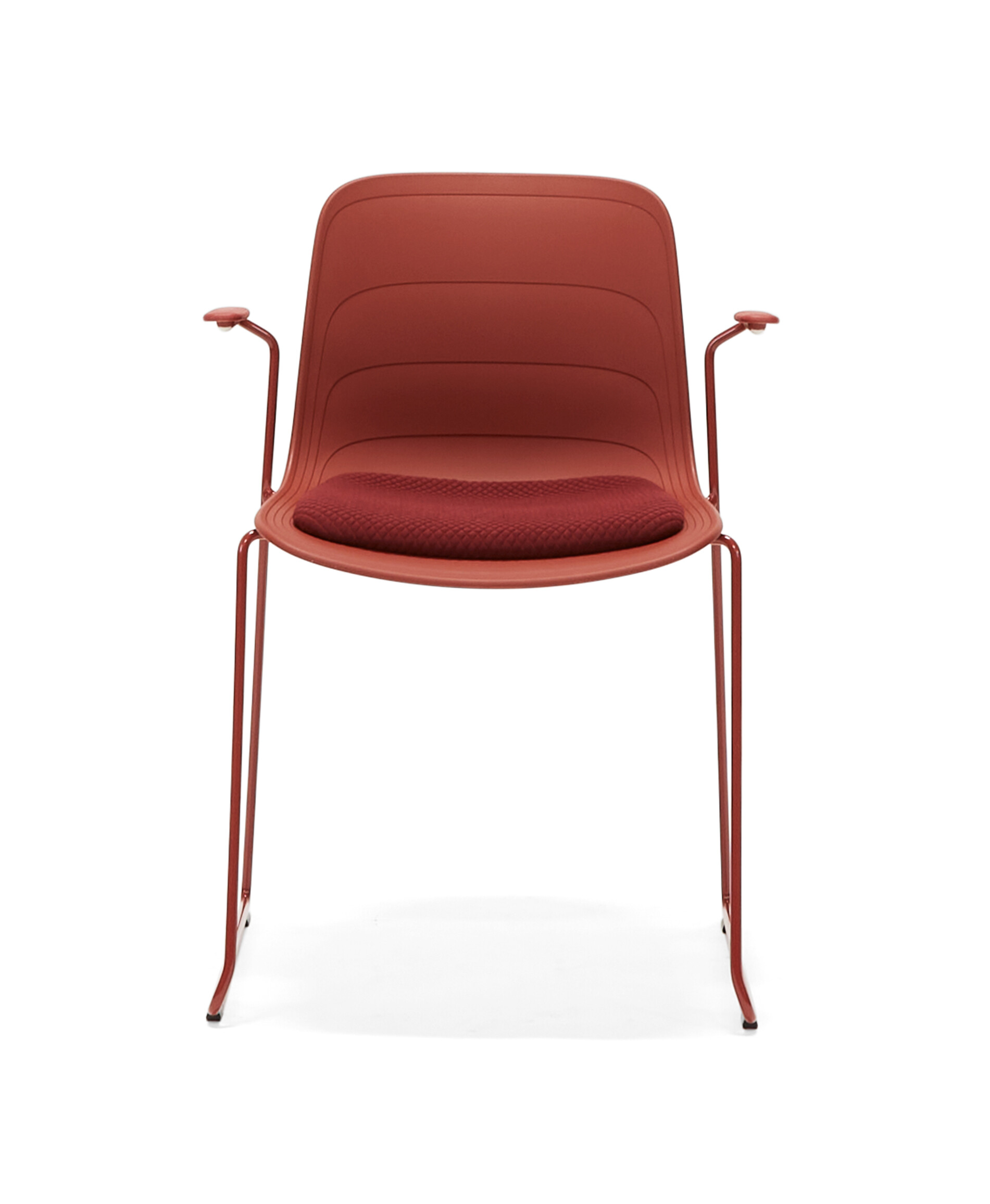

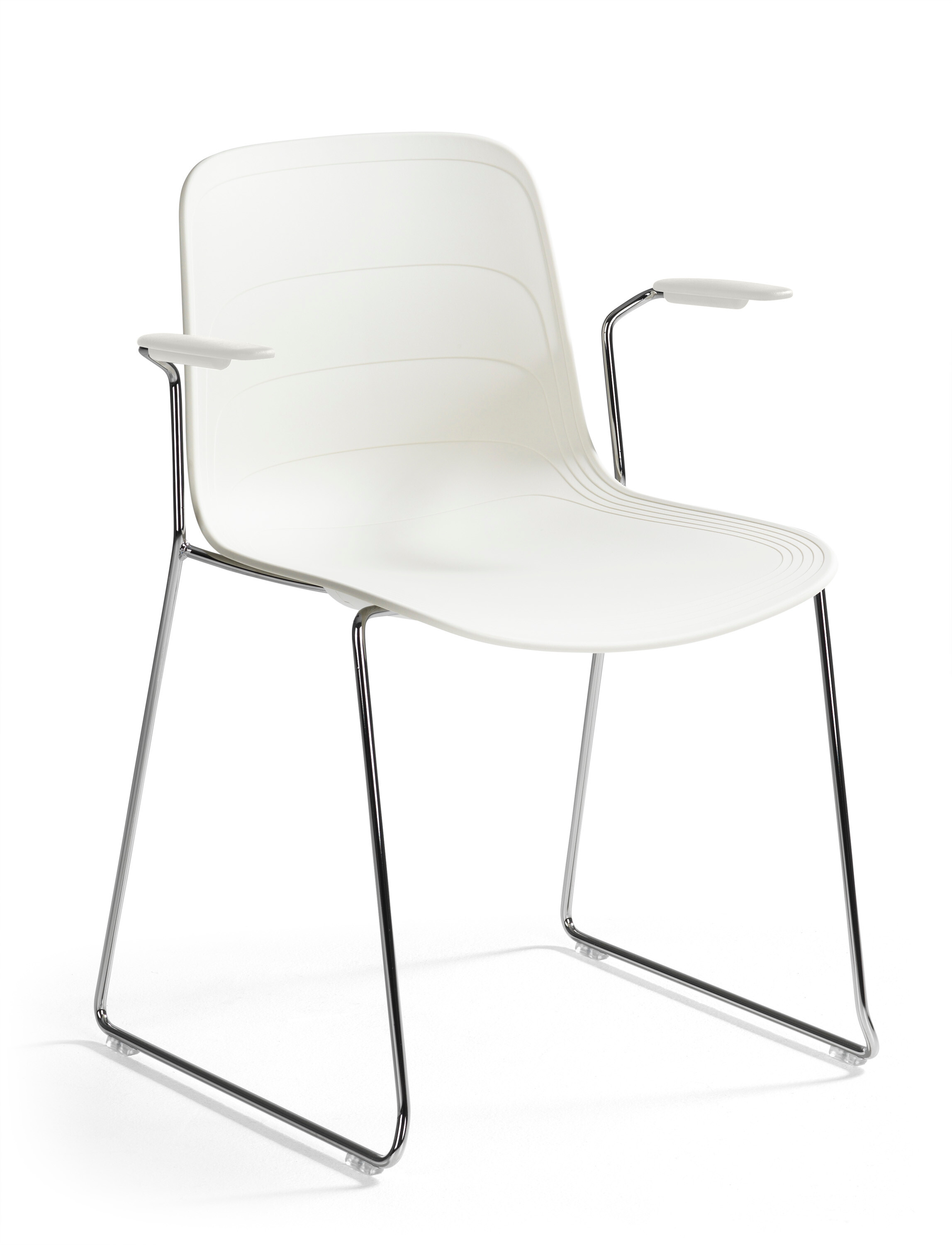

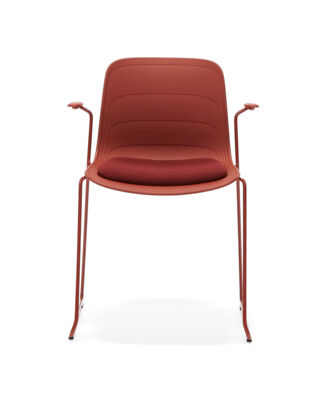

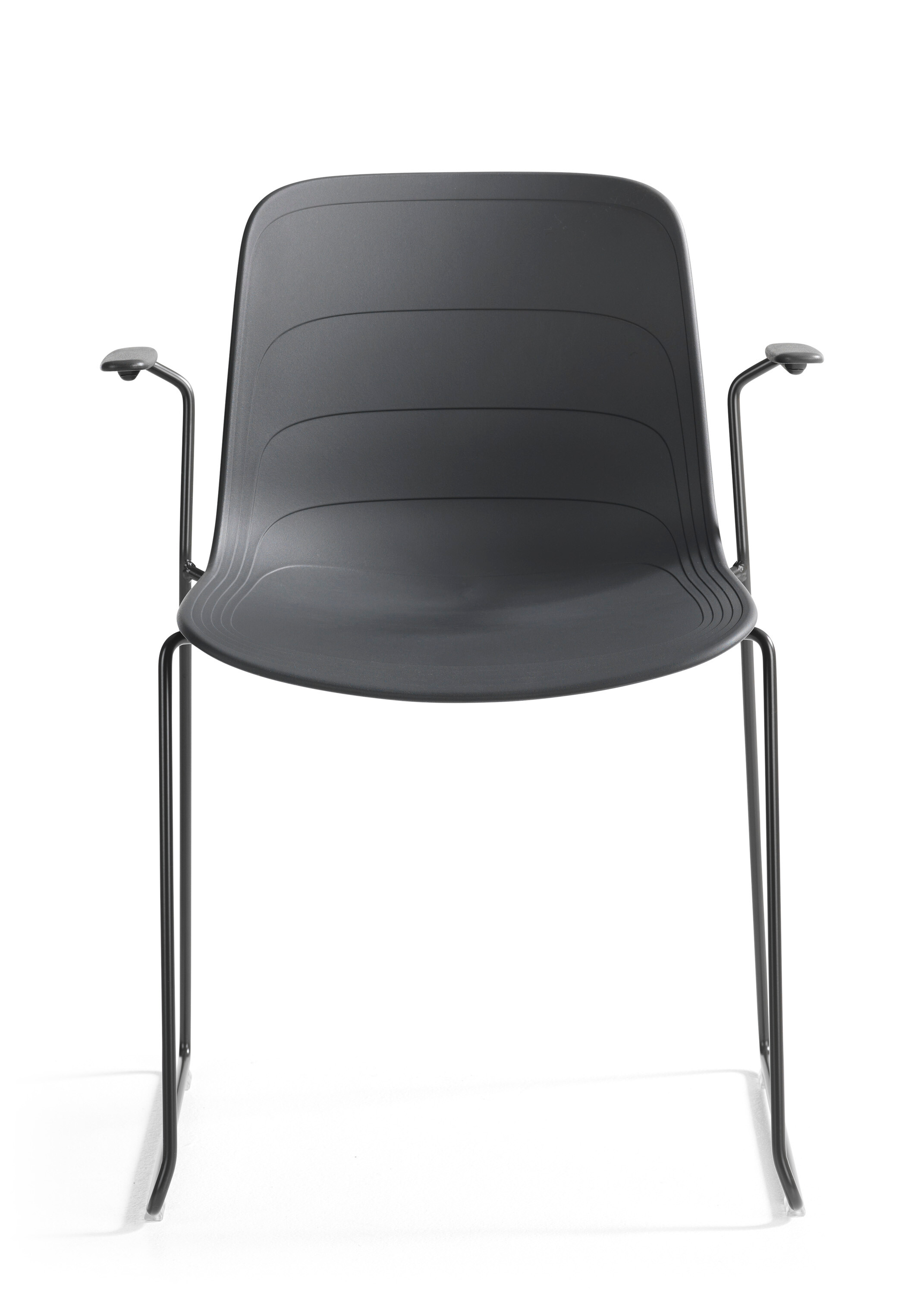

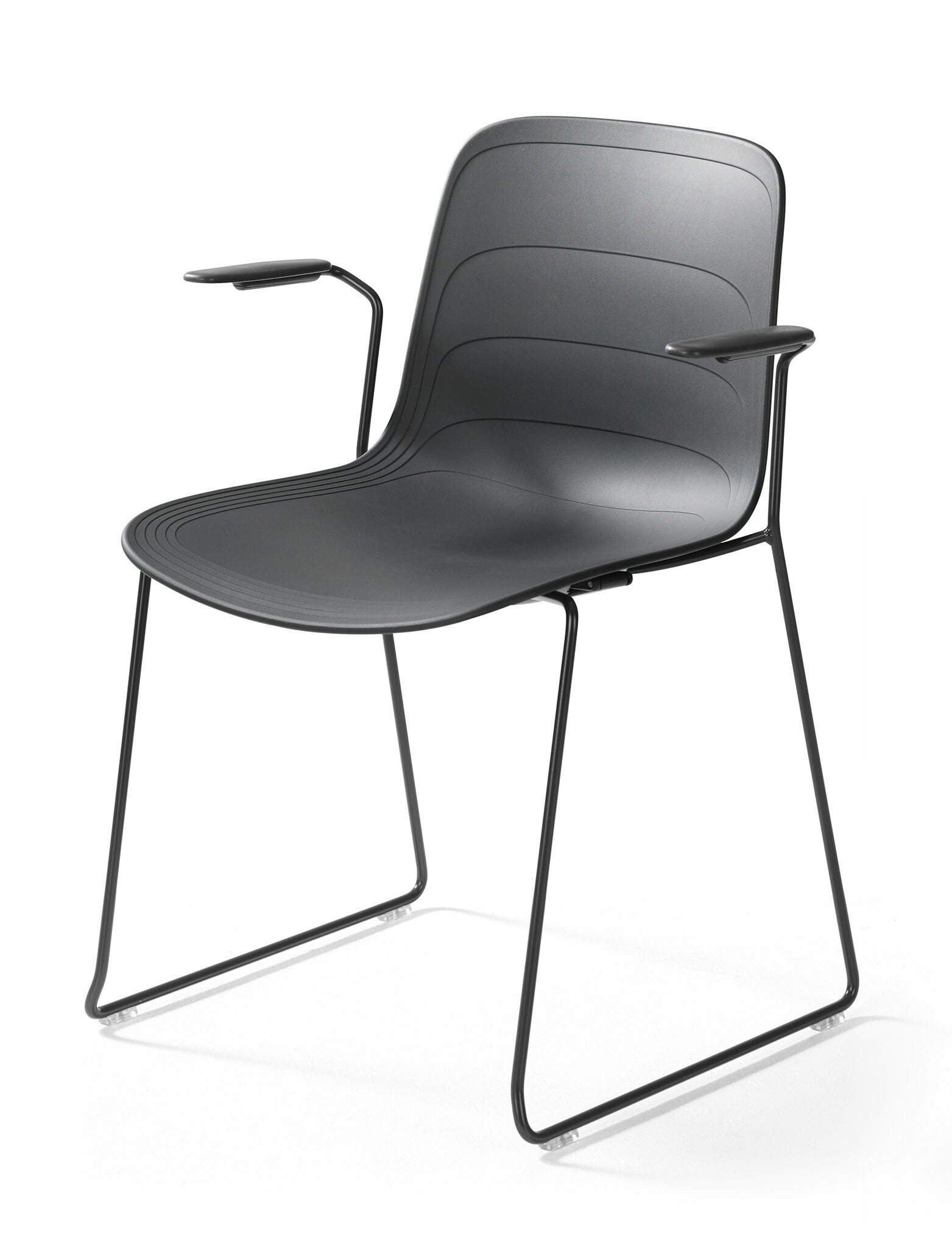

Grade –  Armchair sled baseGrade –  Armchair sled base

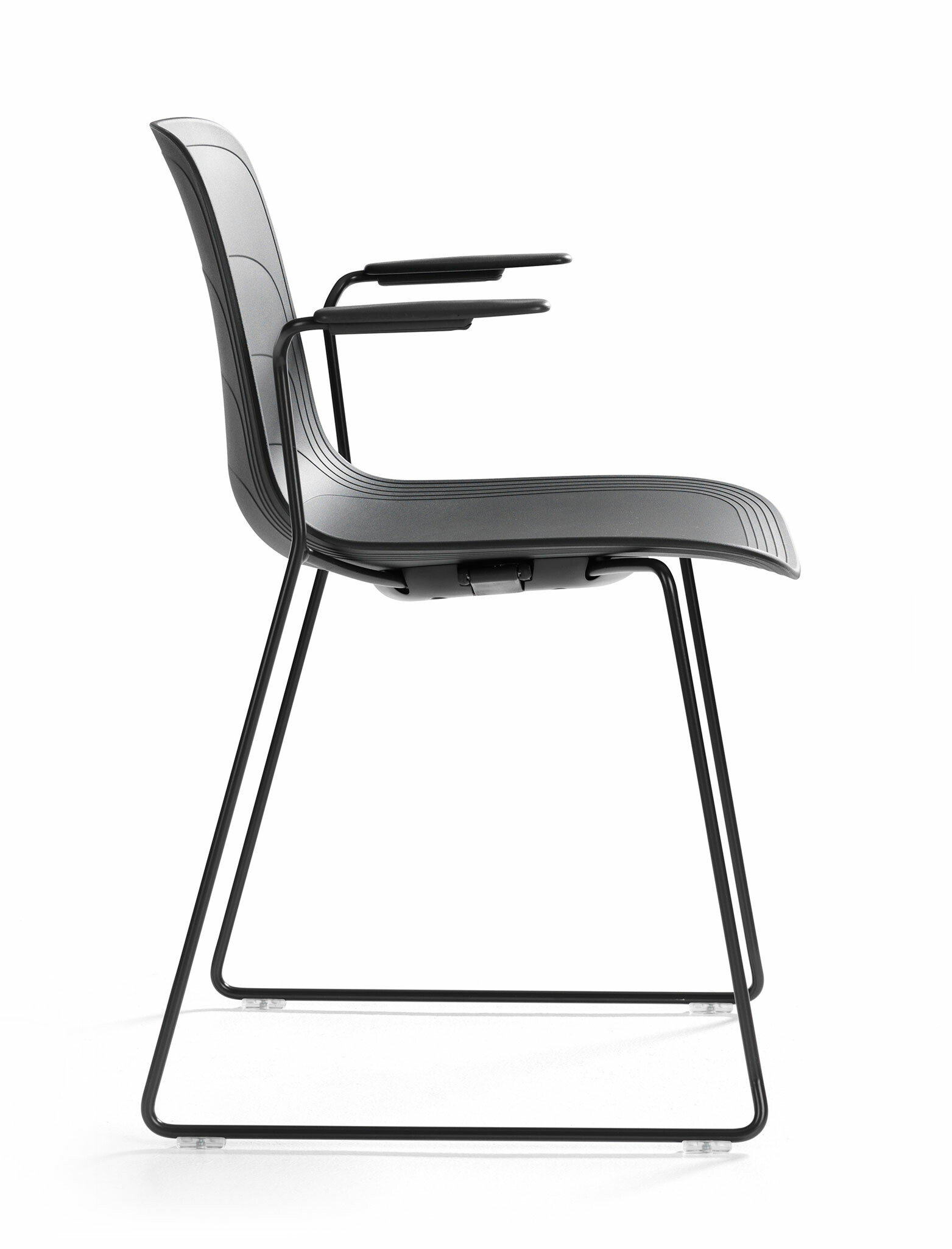

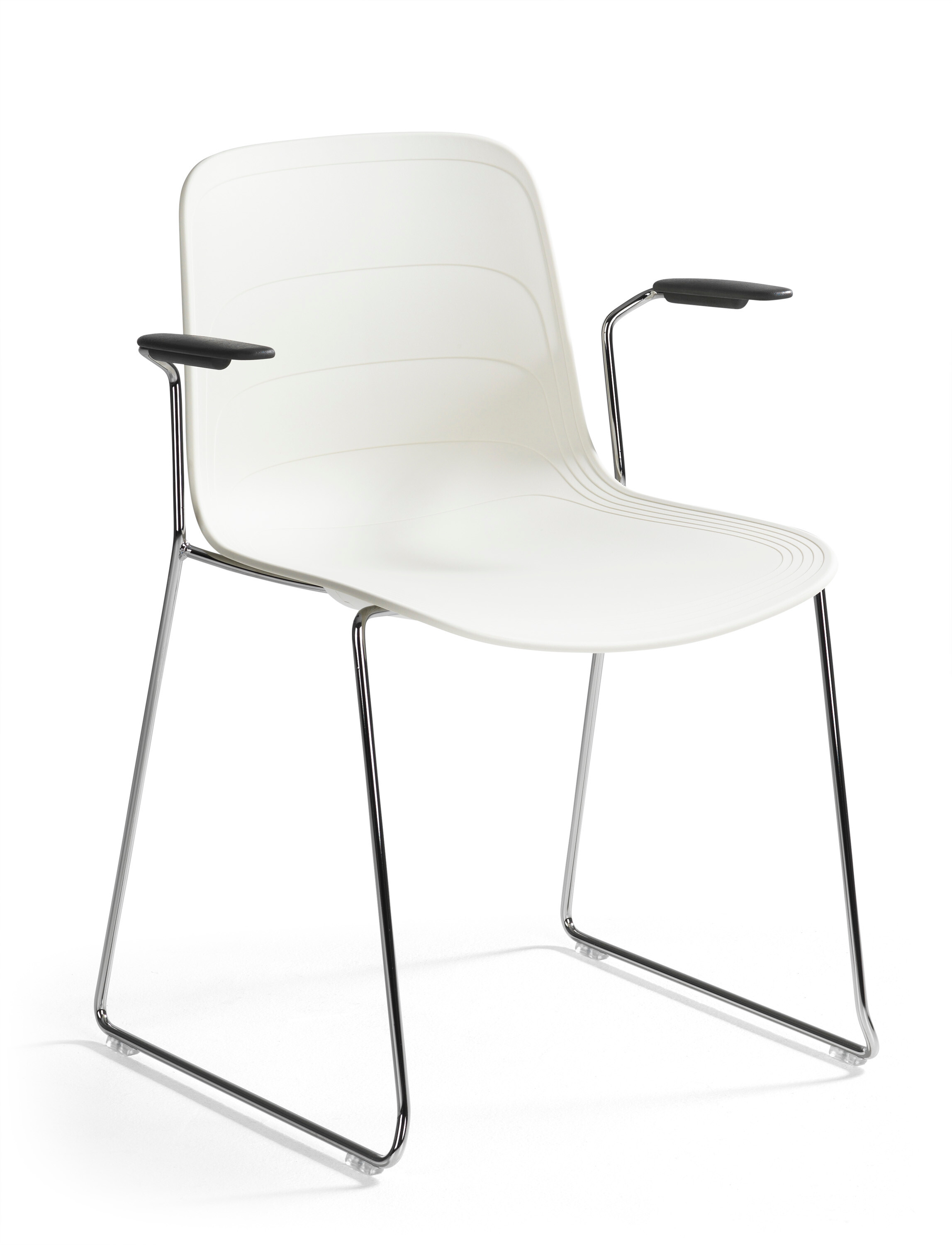

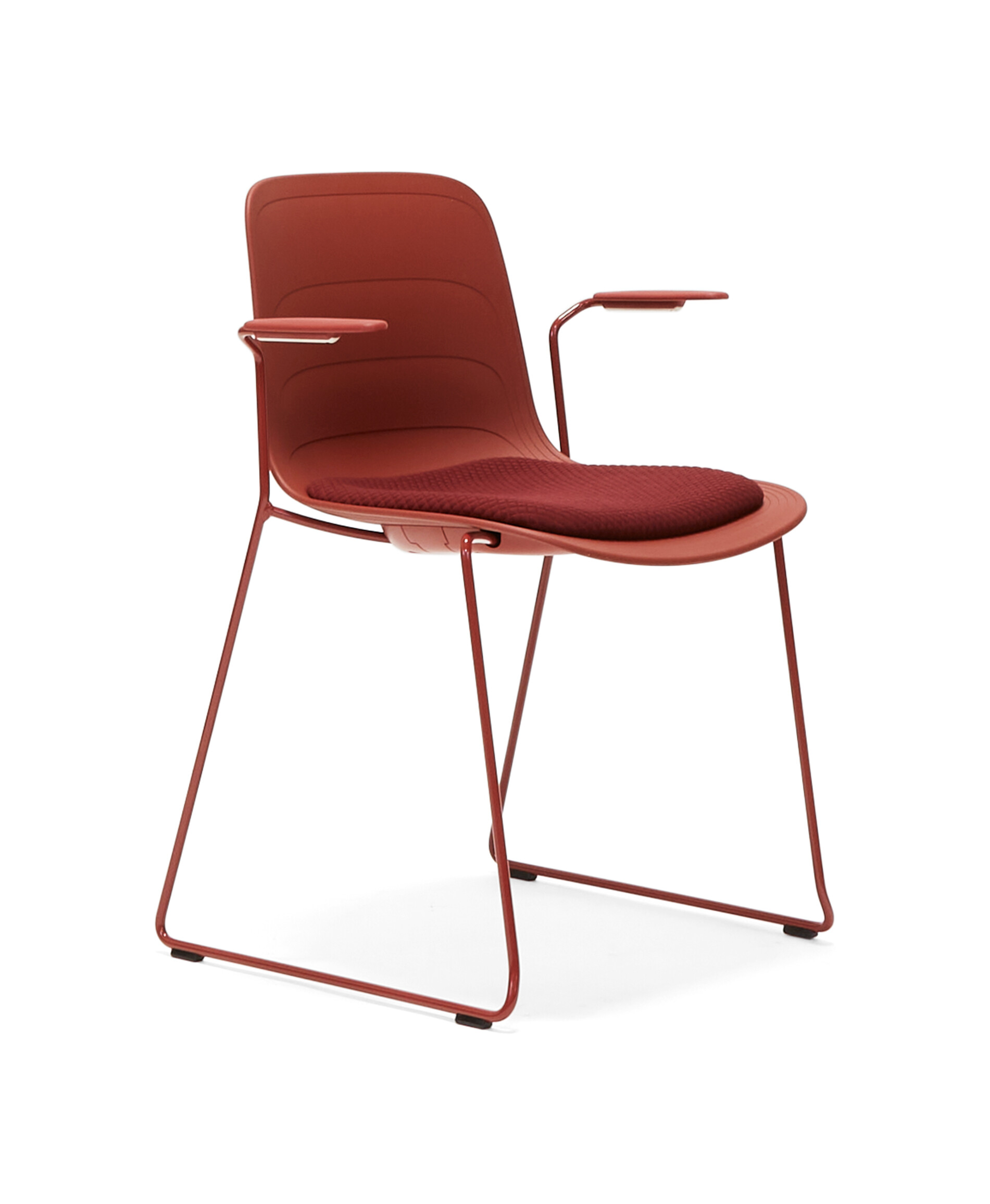

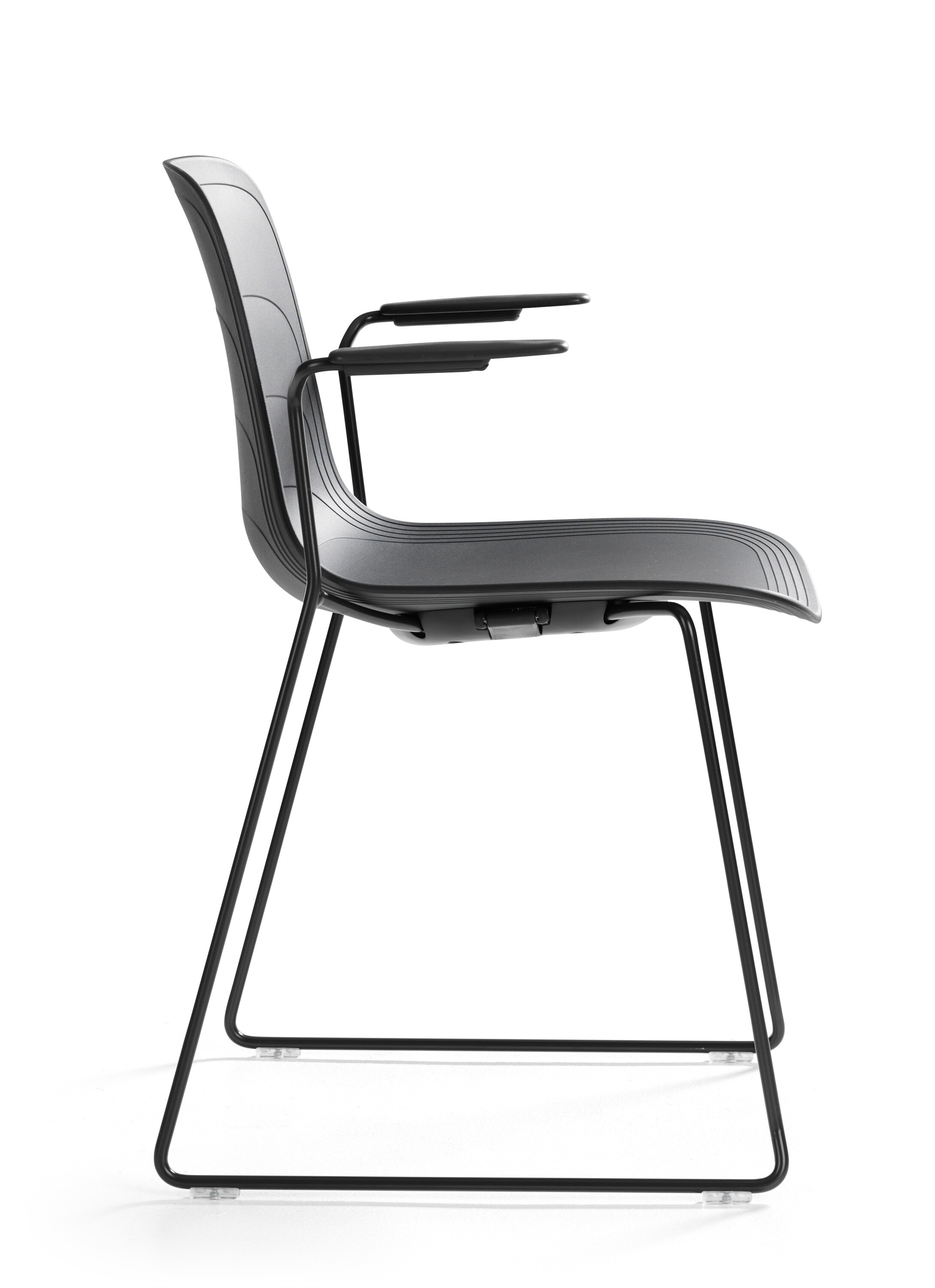

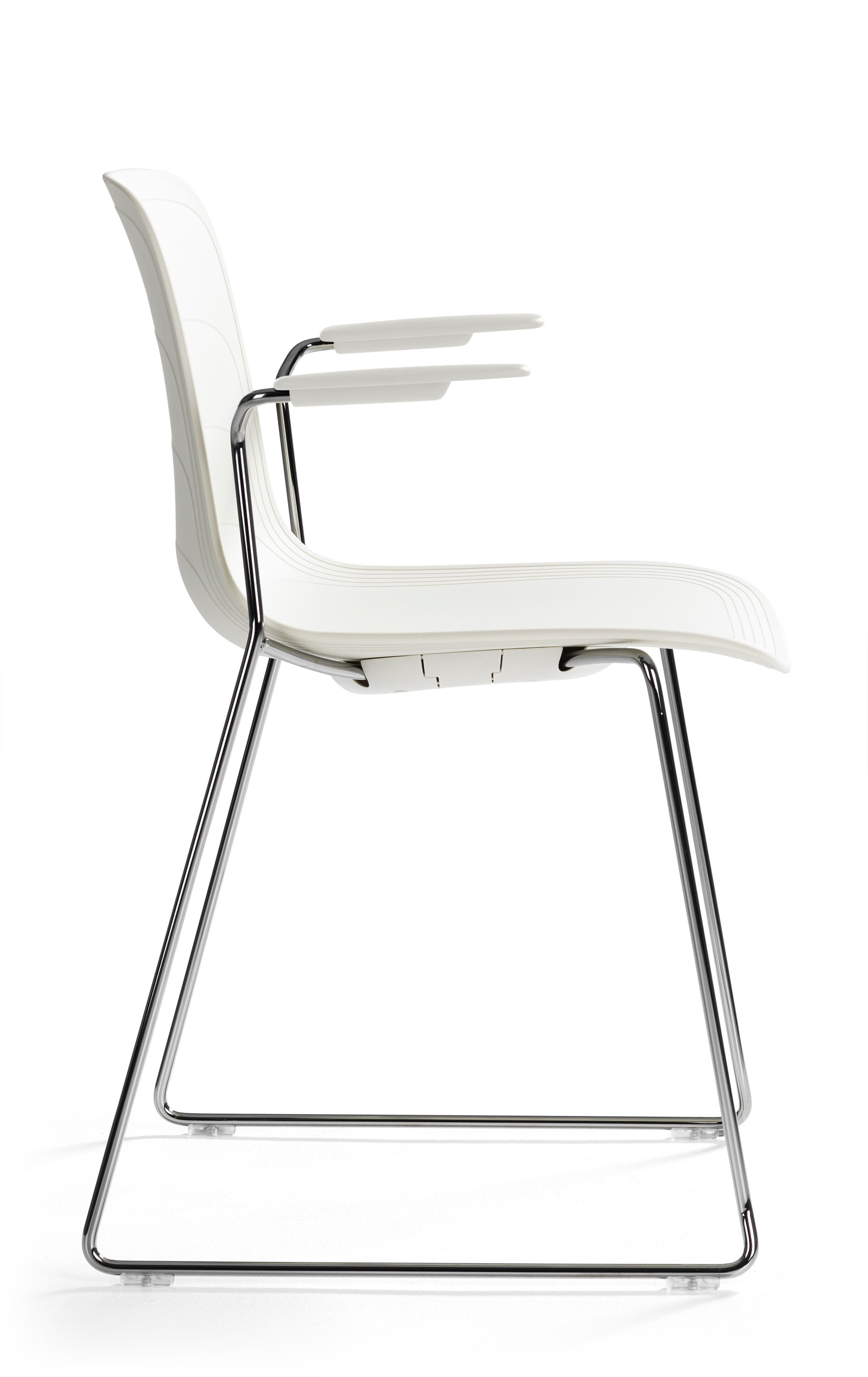

Armchair sled base

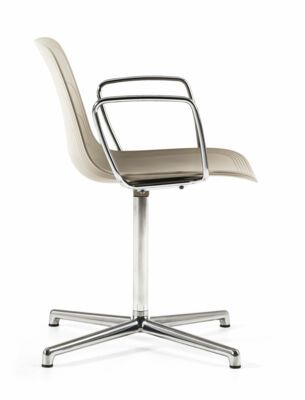

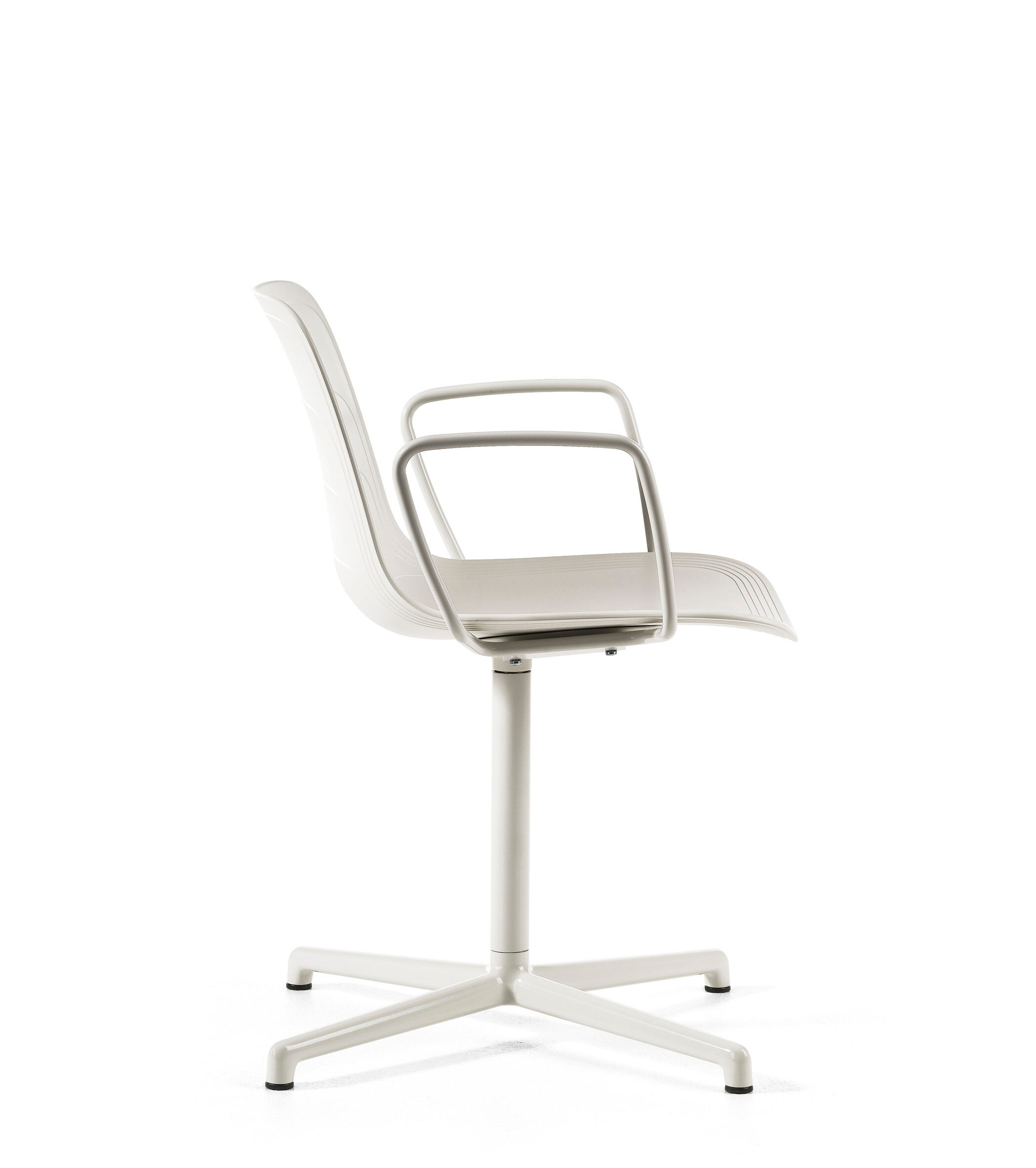

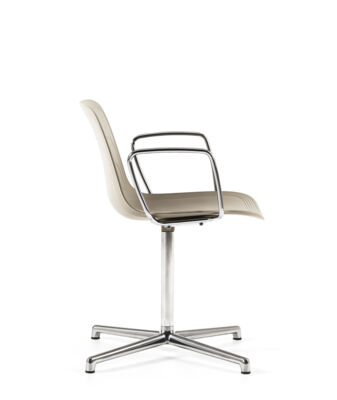

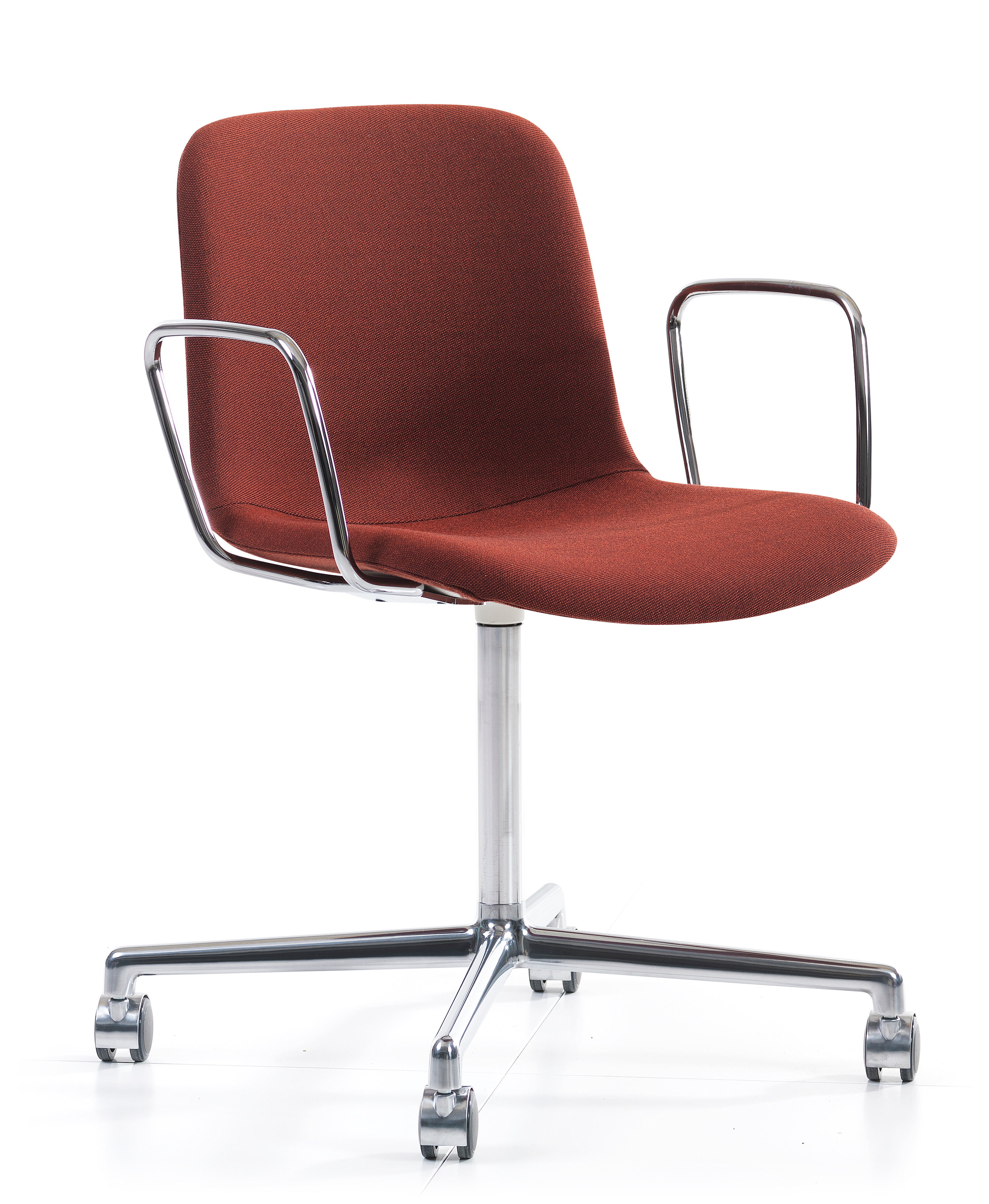

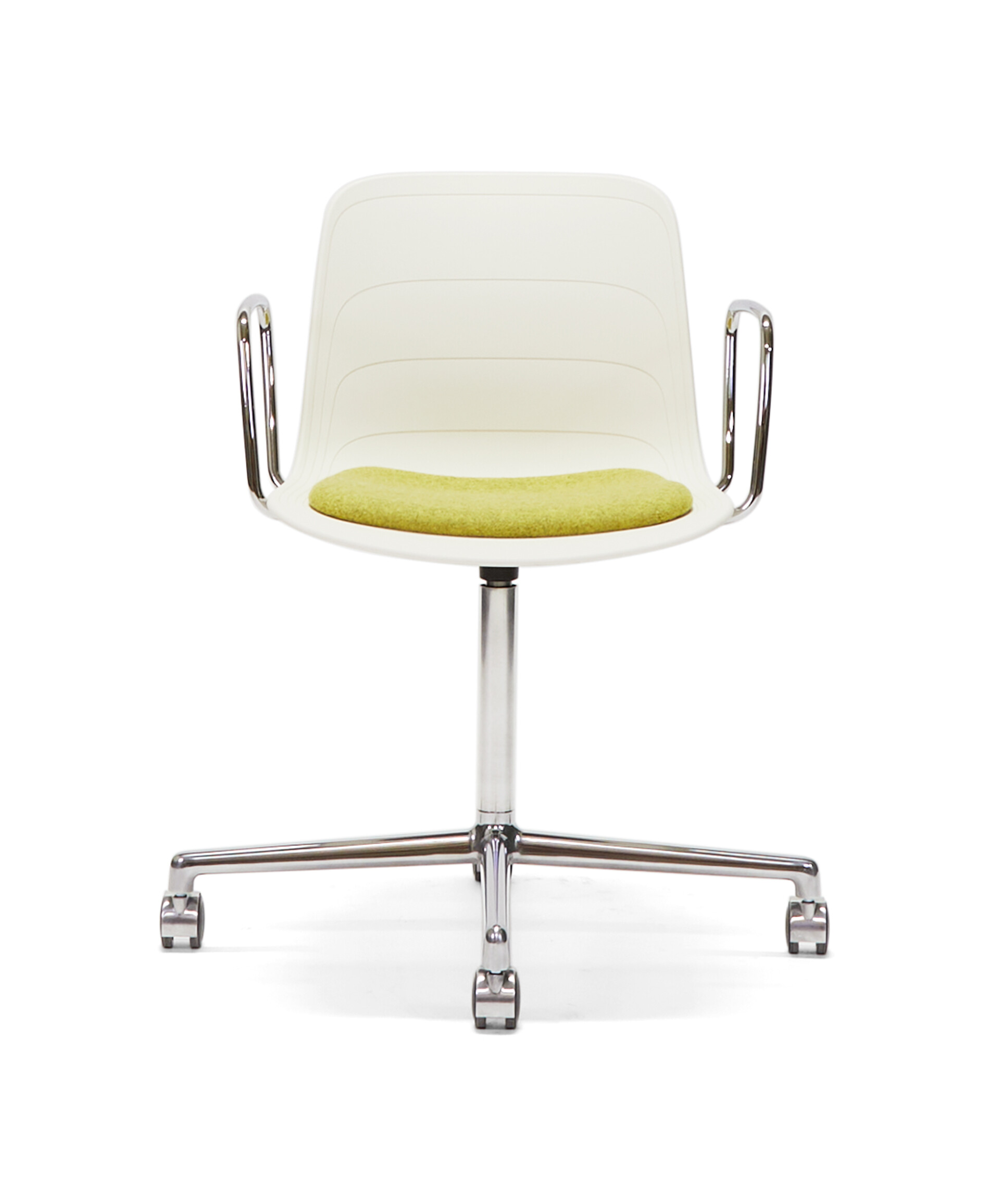

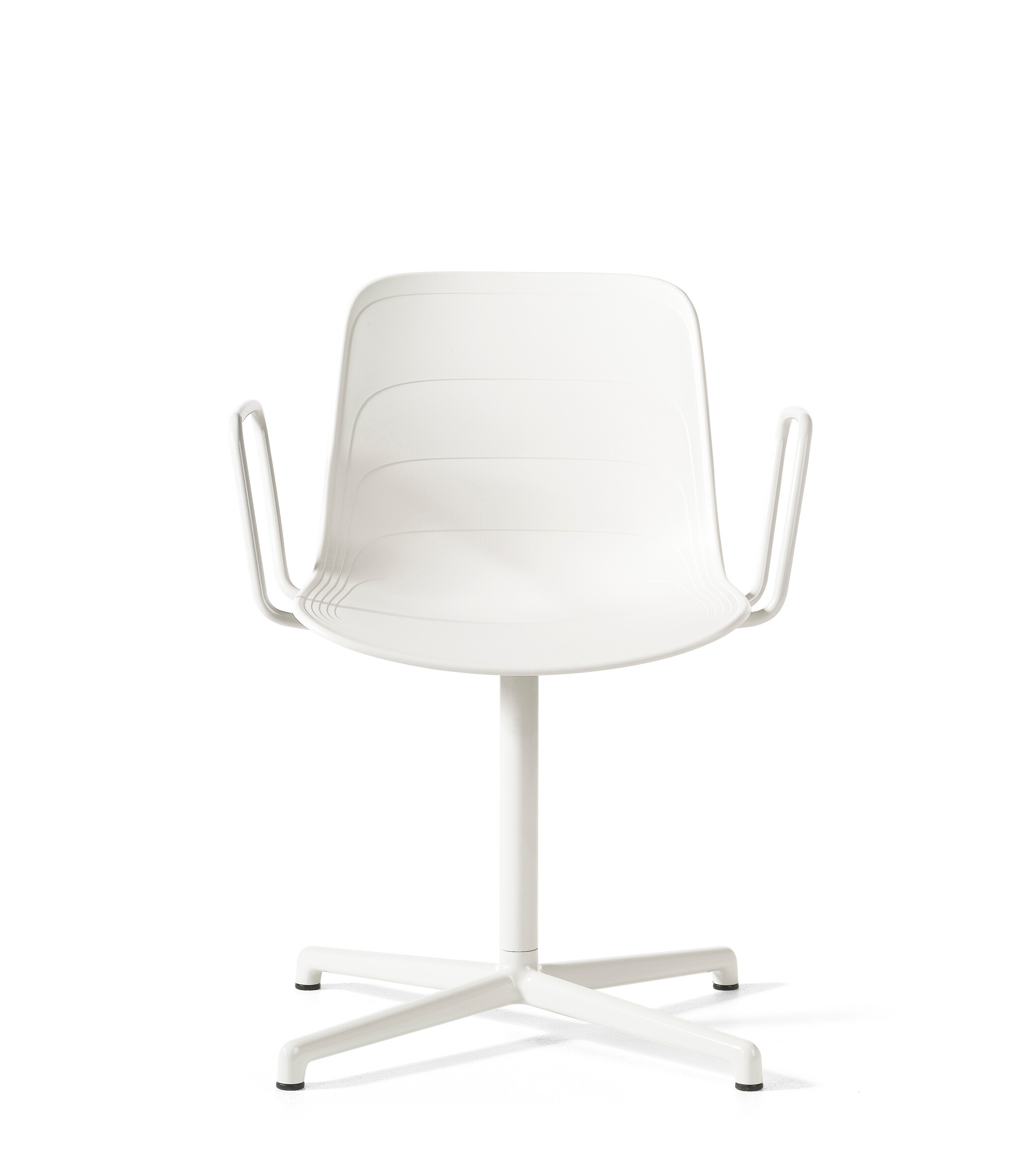

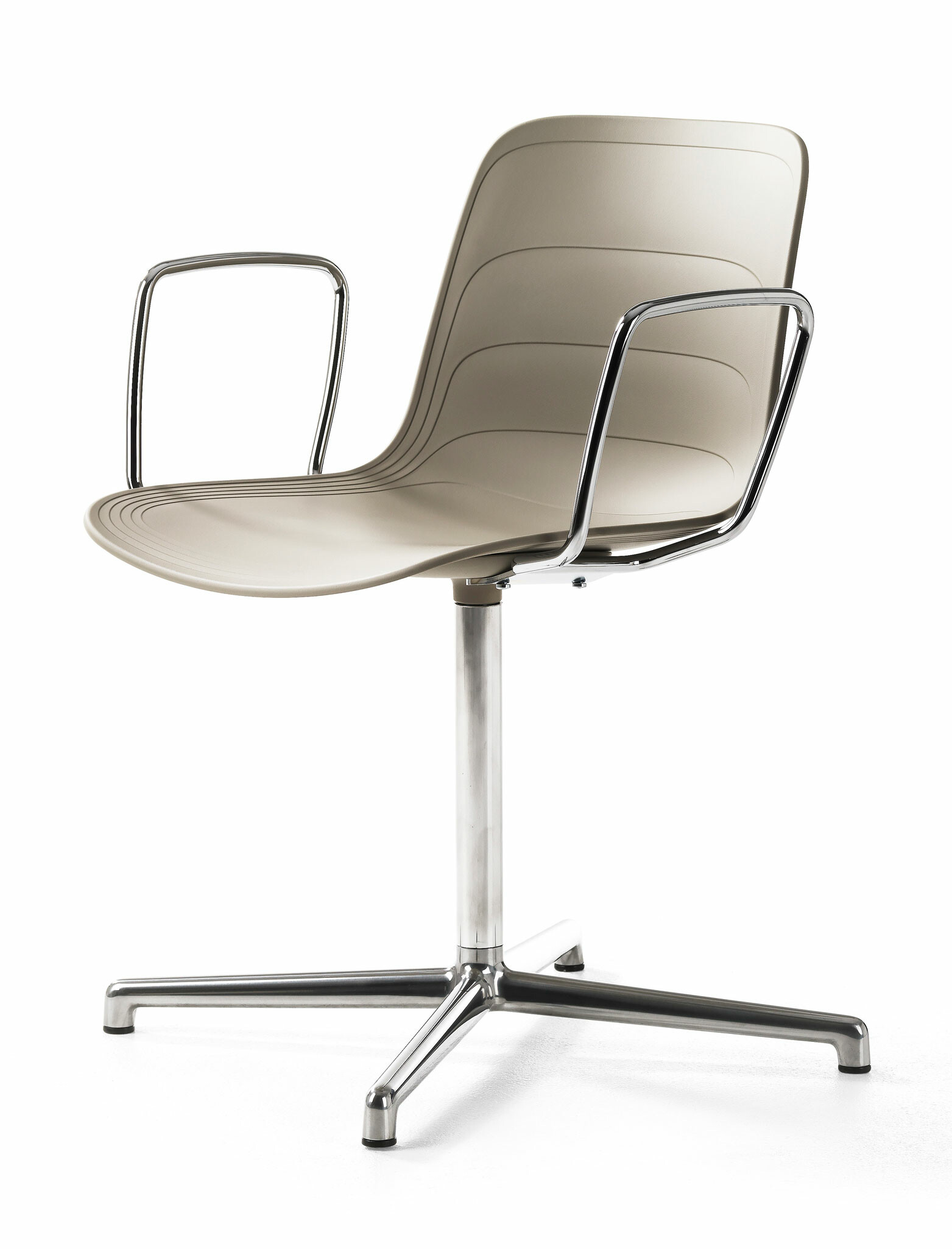

Grade – Armchair swivelbaseGrade – Armchair swivelbase

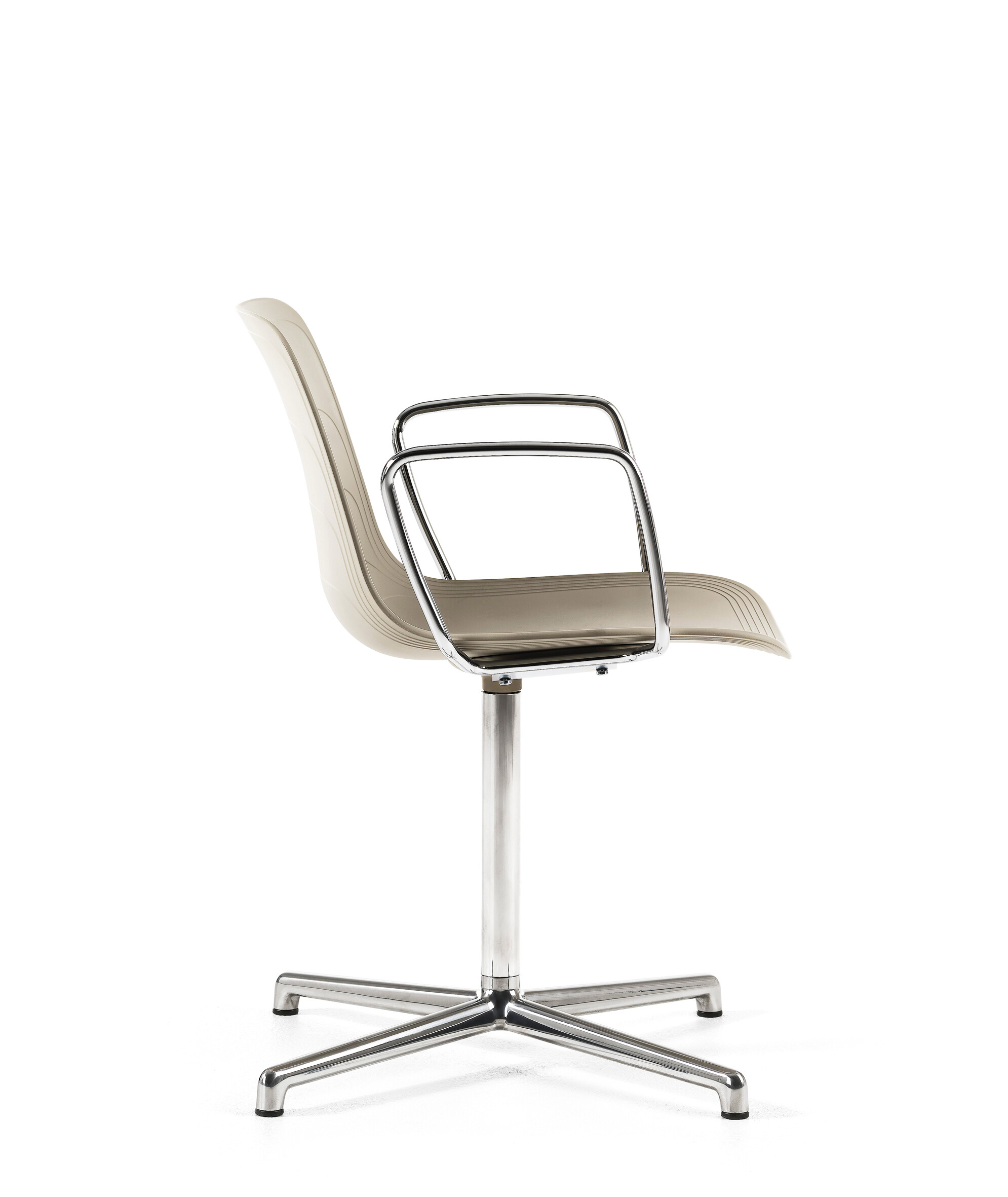

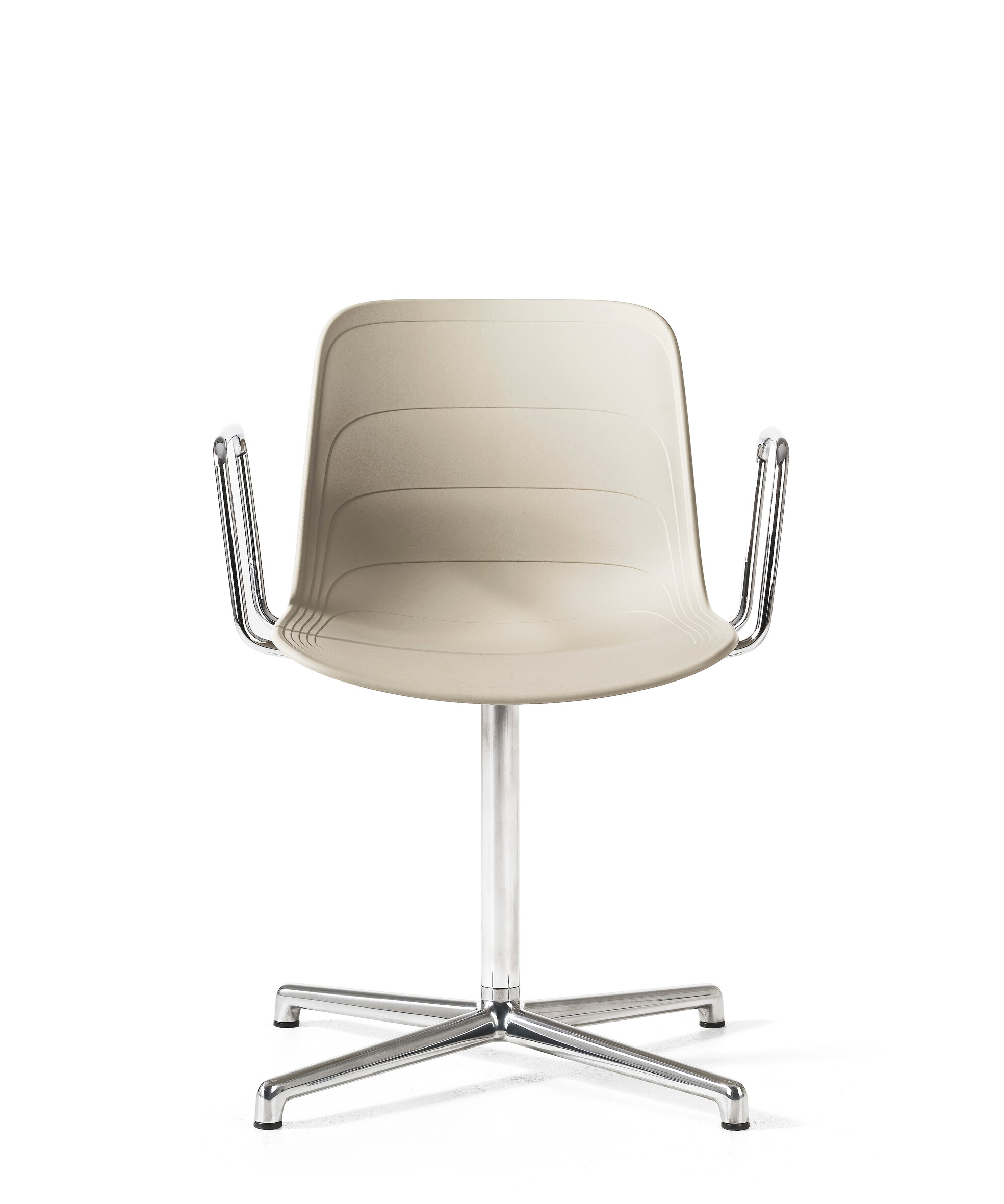

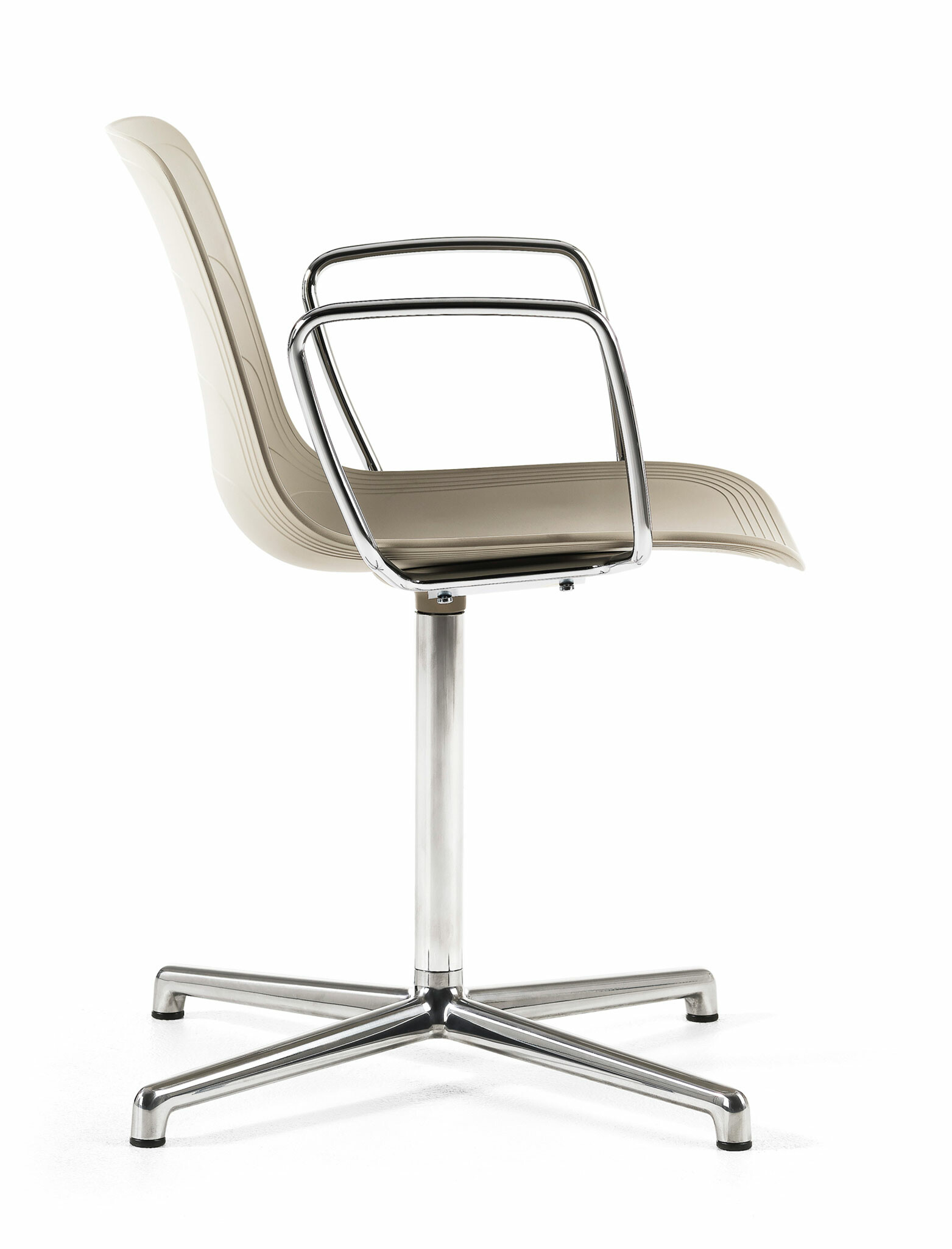

Armchair swivelbase

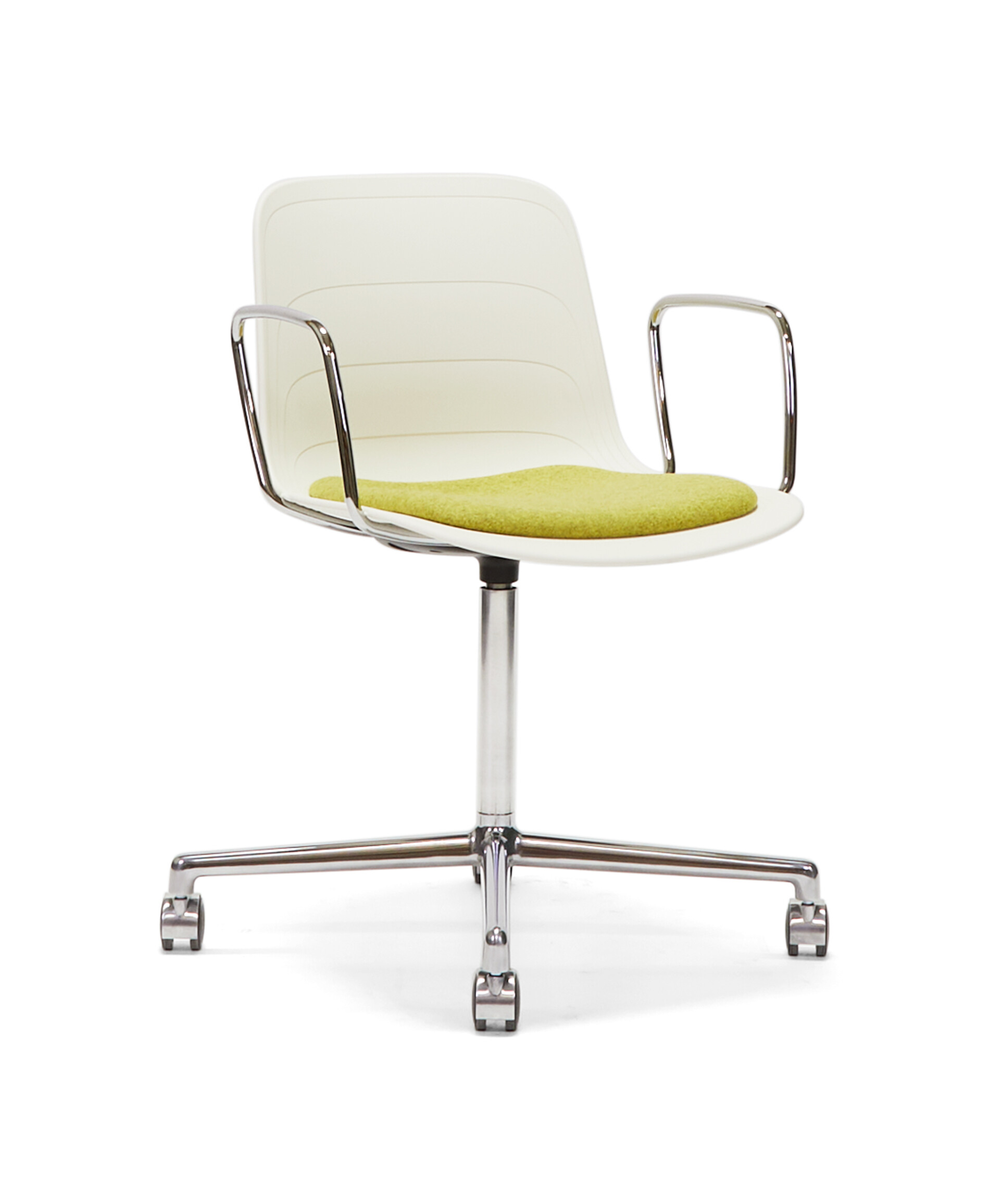

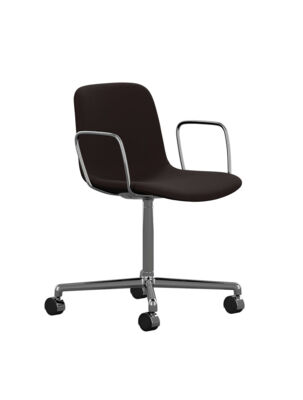

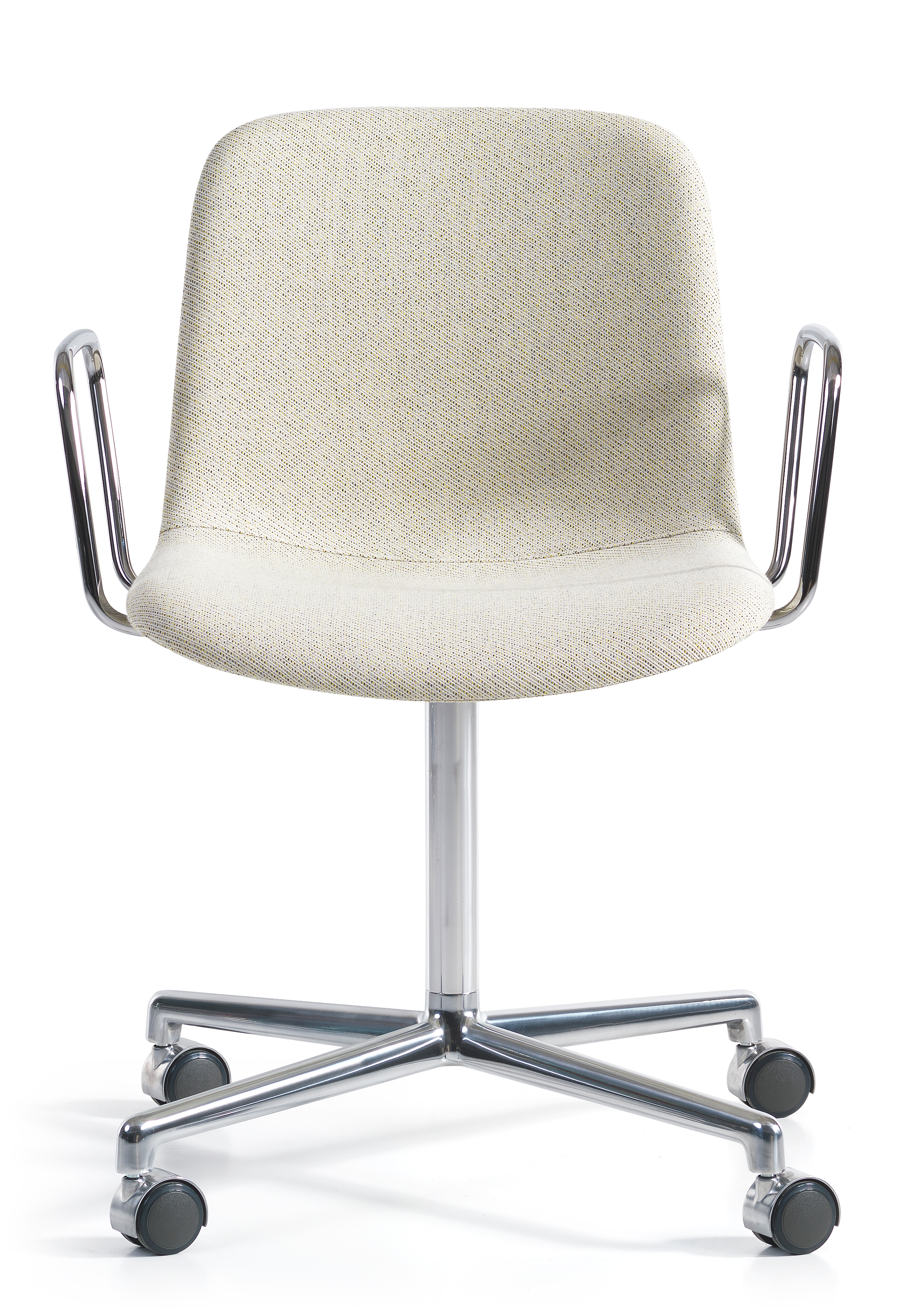

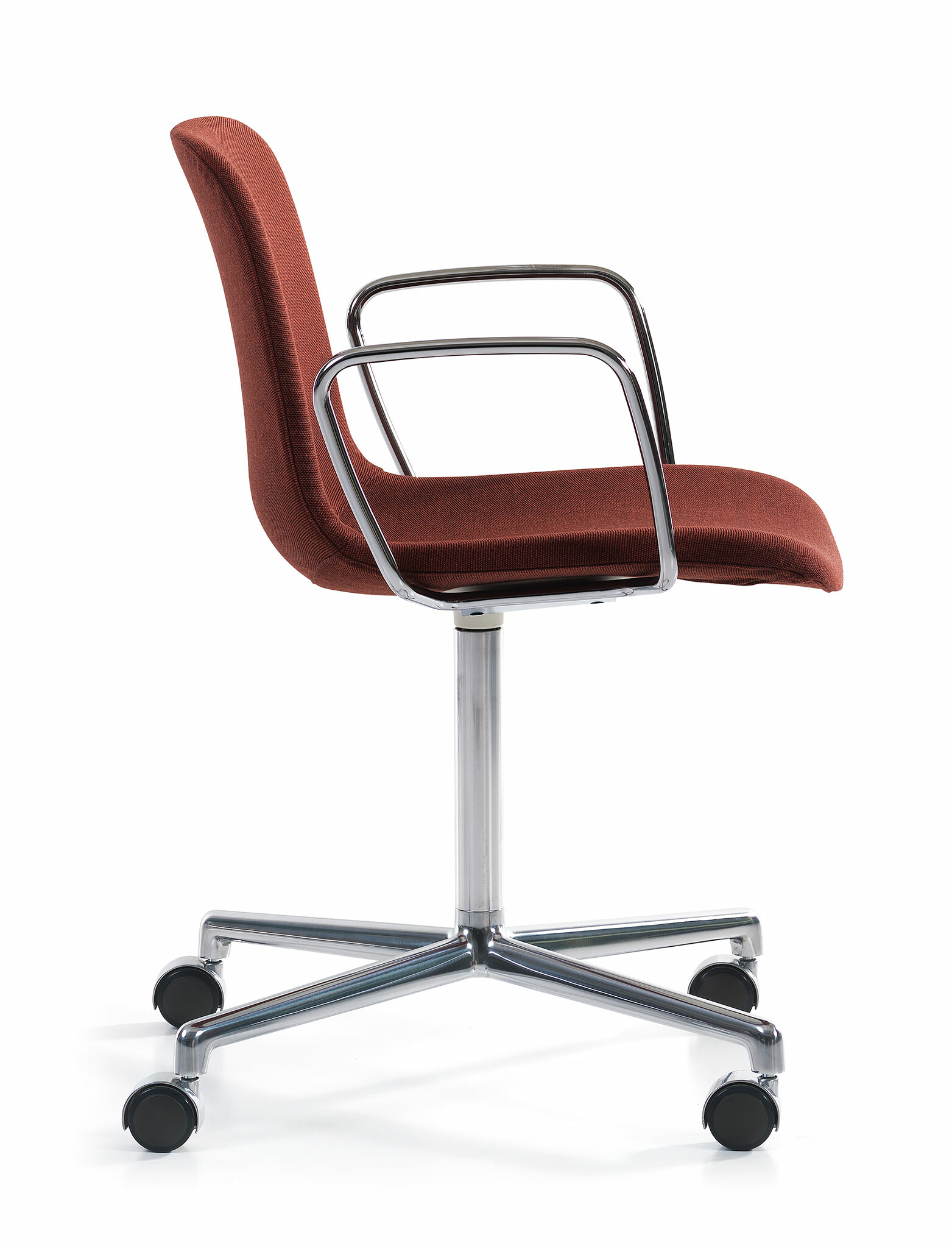

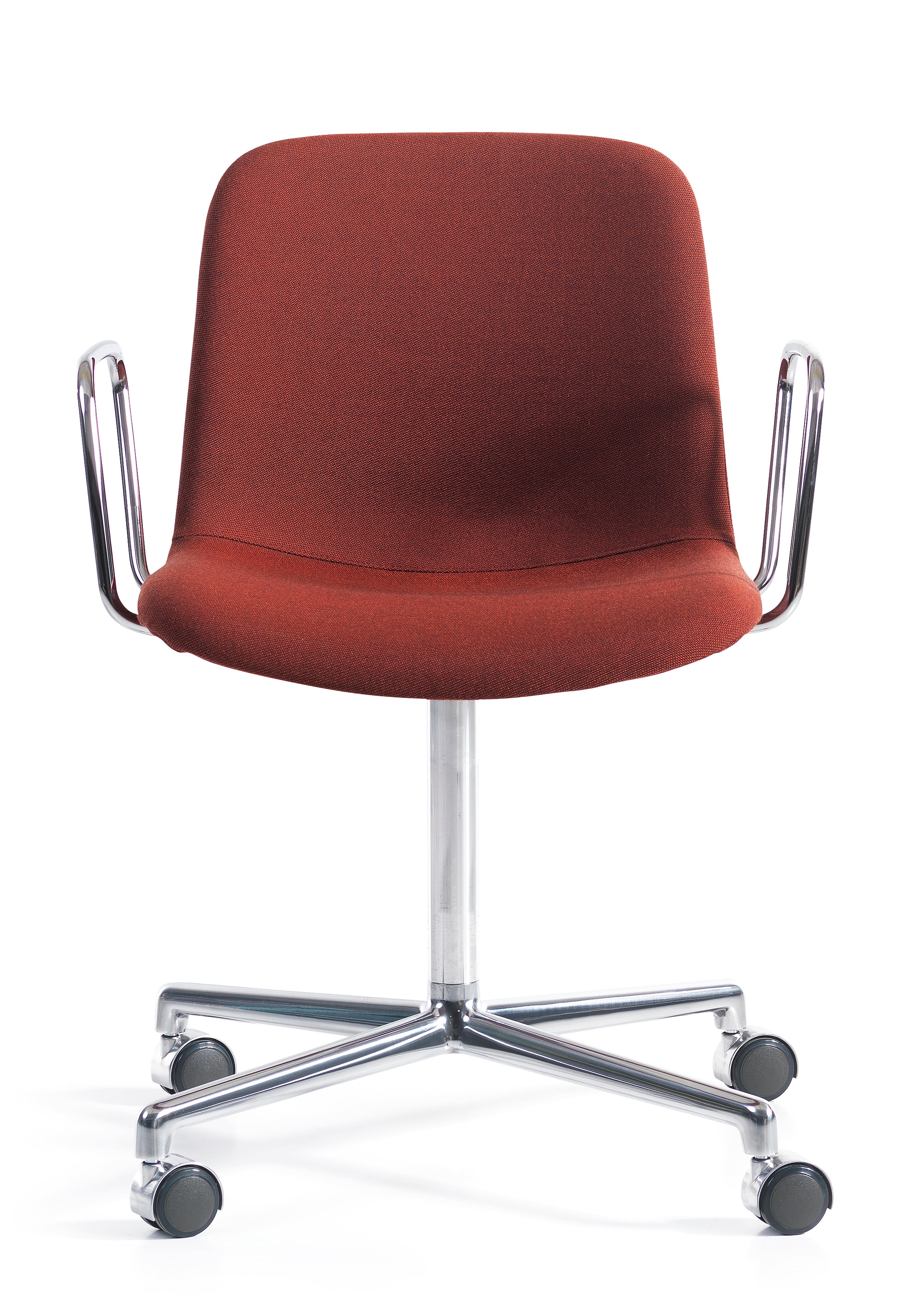

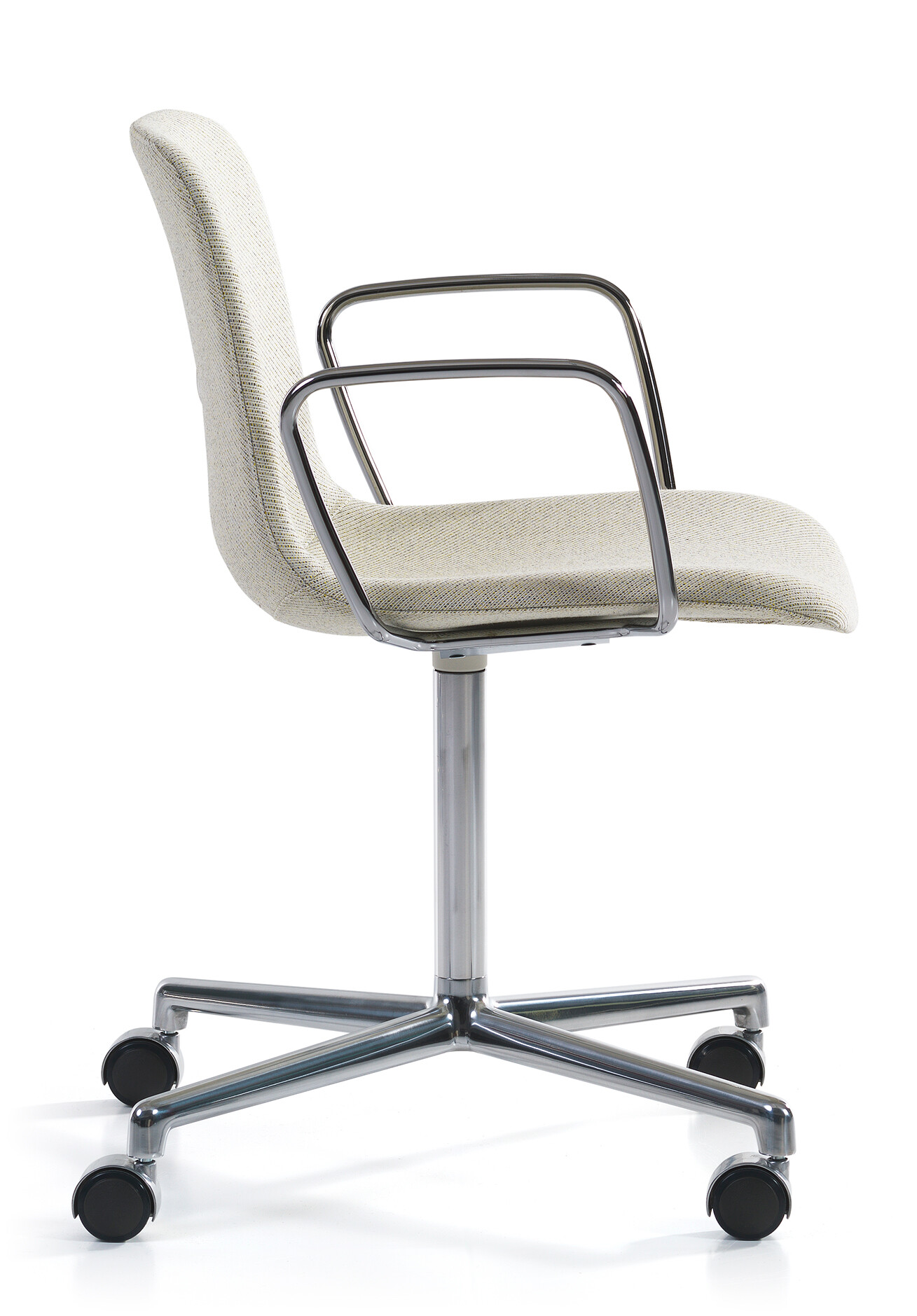

Grade – Armchair Swivelbase CasterGrade – Armchair Swivelbase Caster

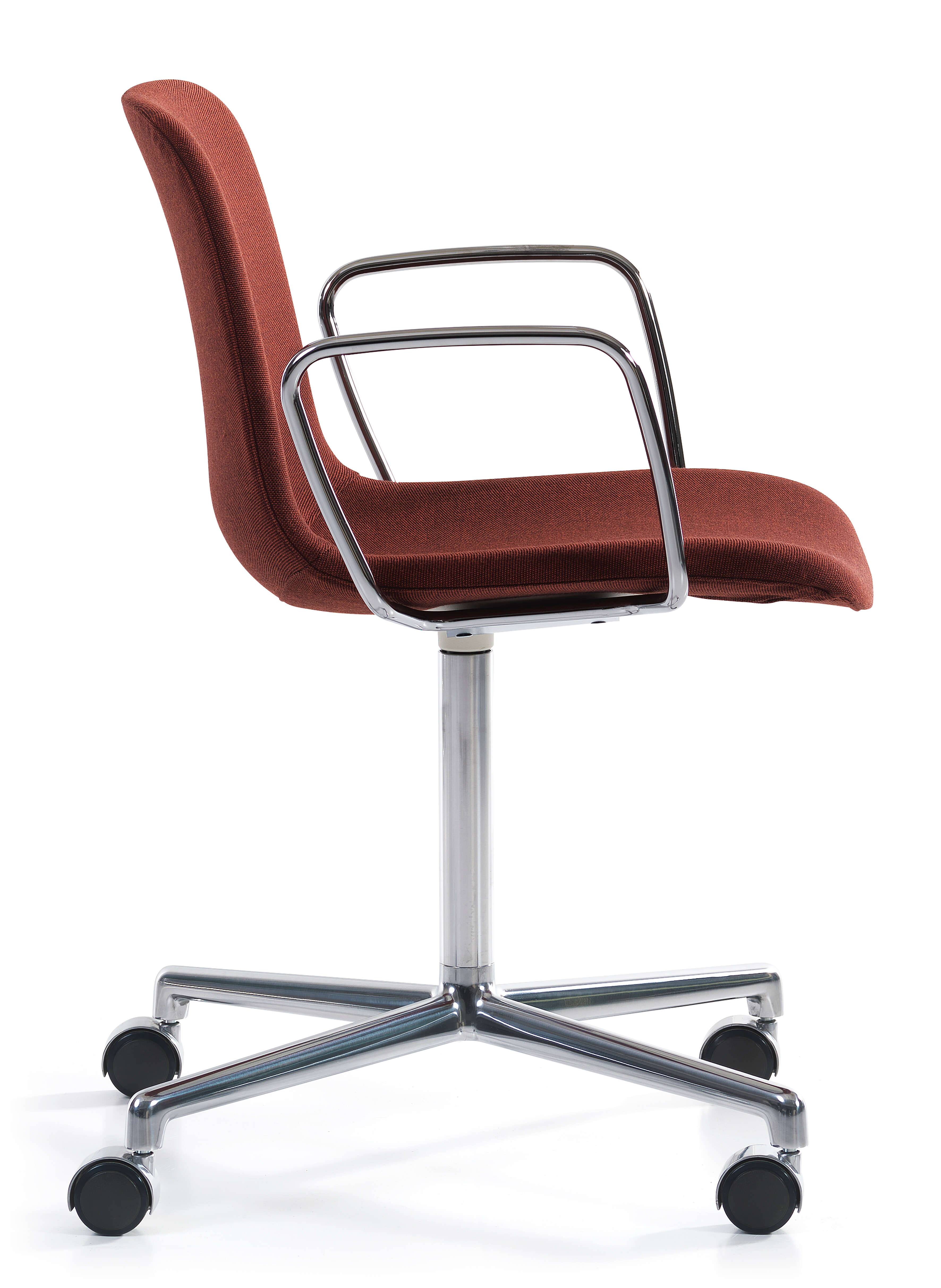

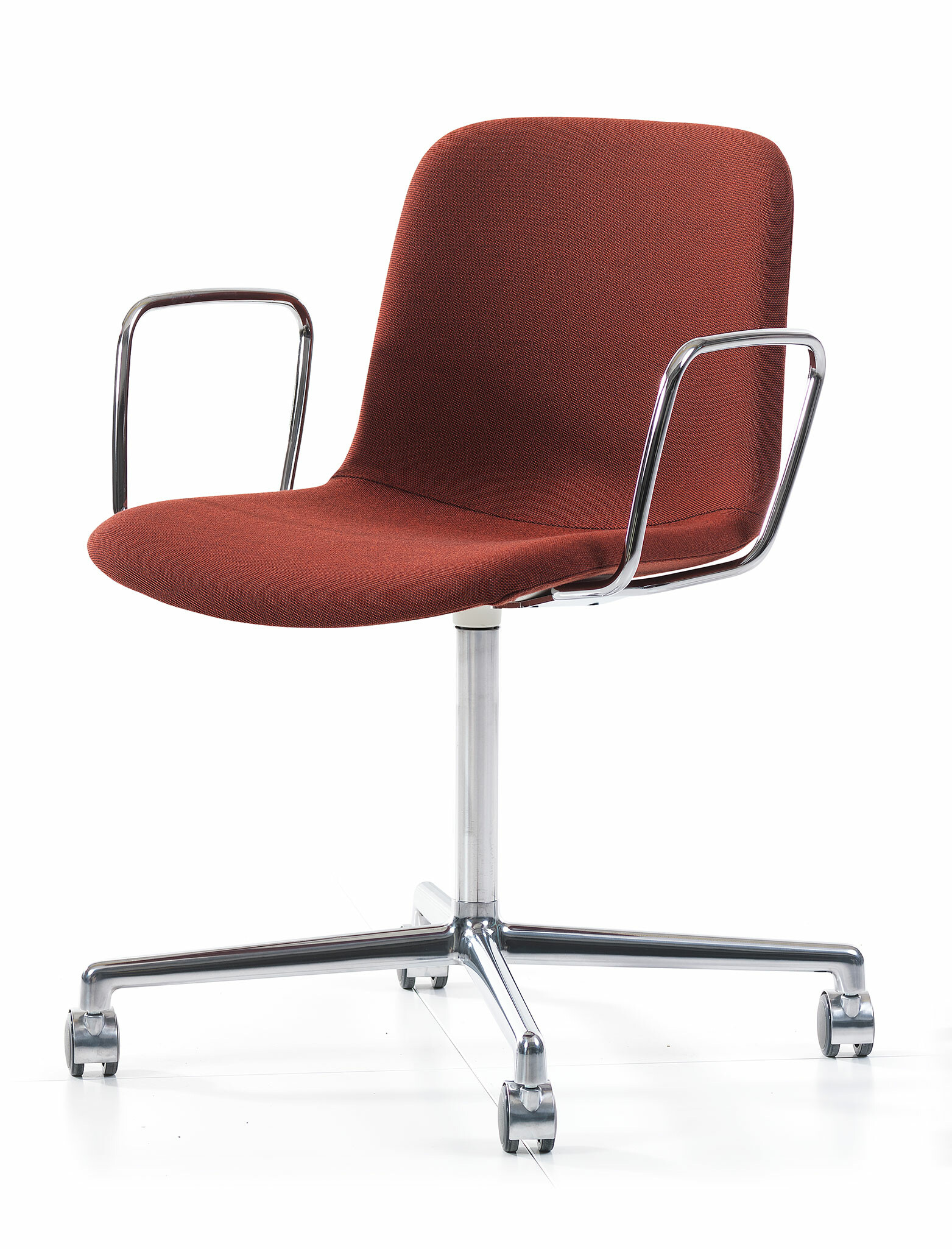

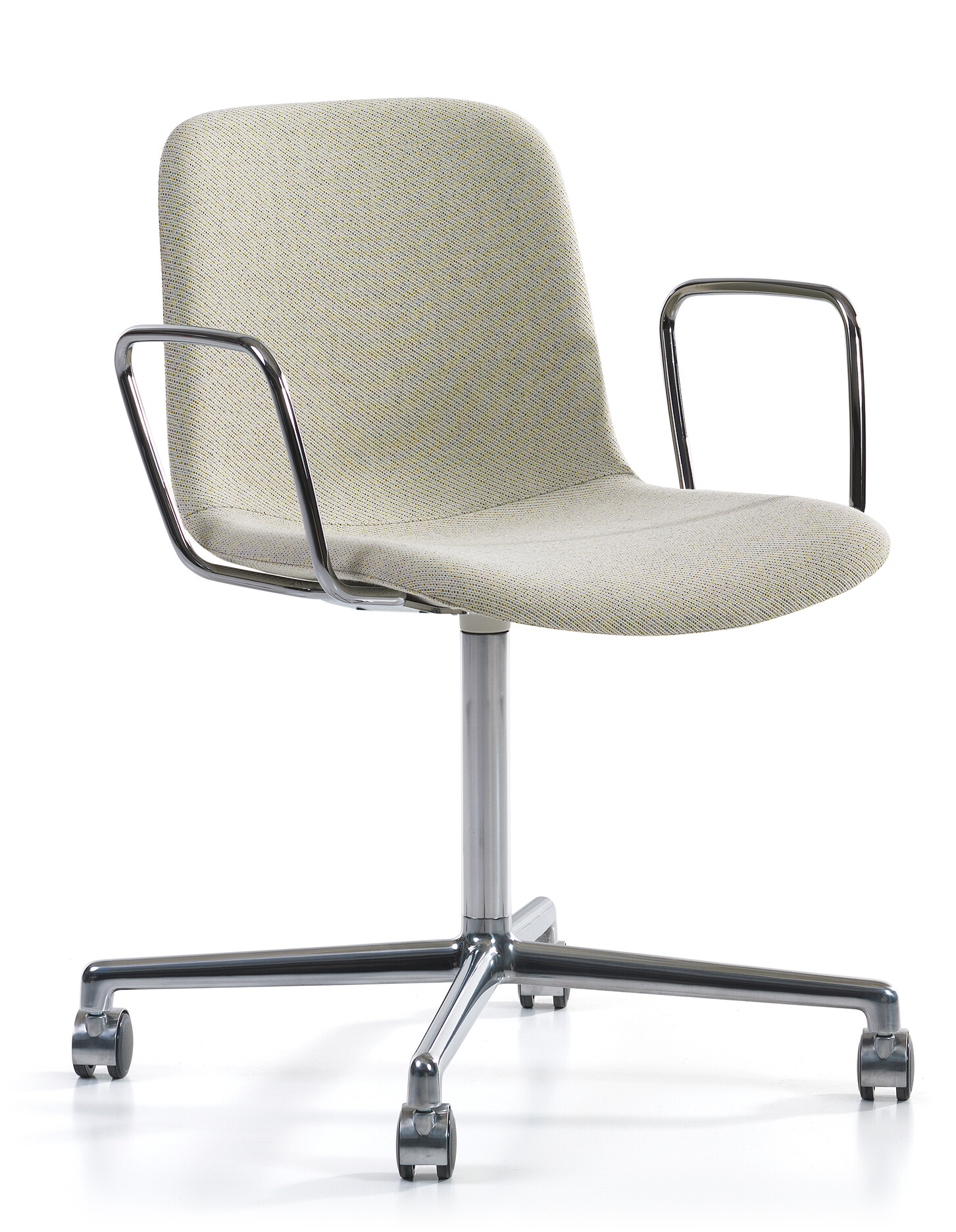

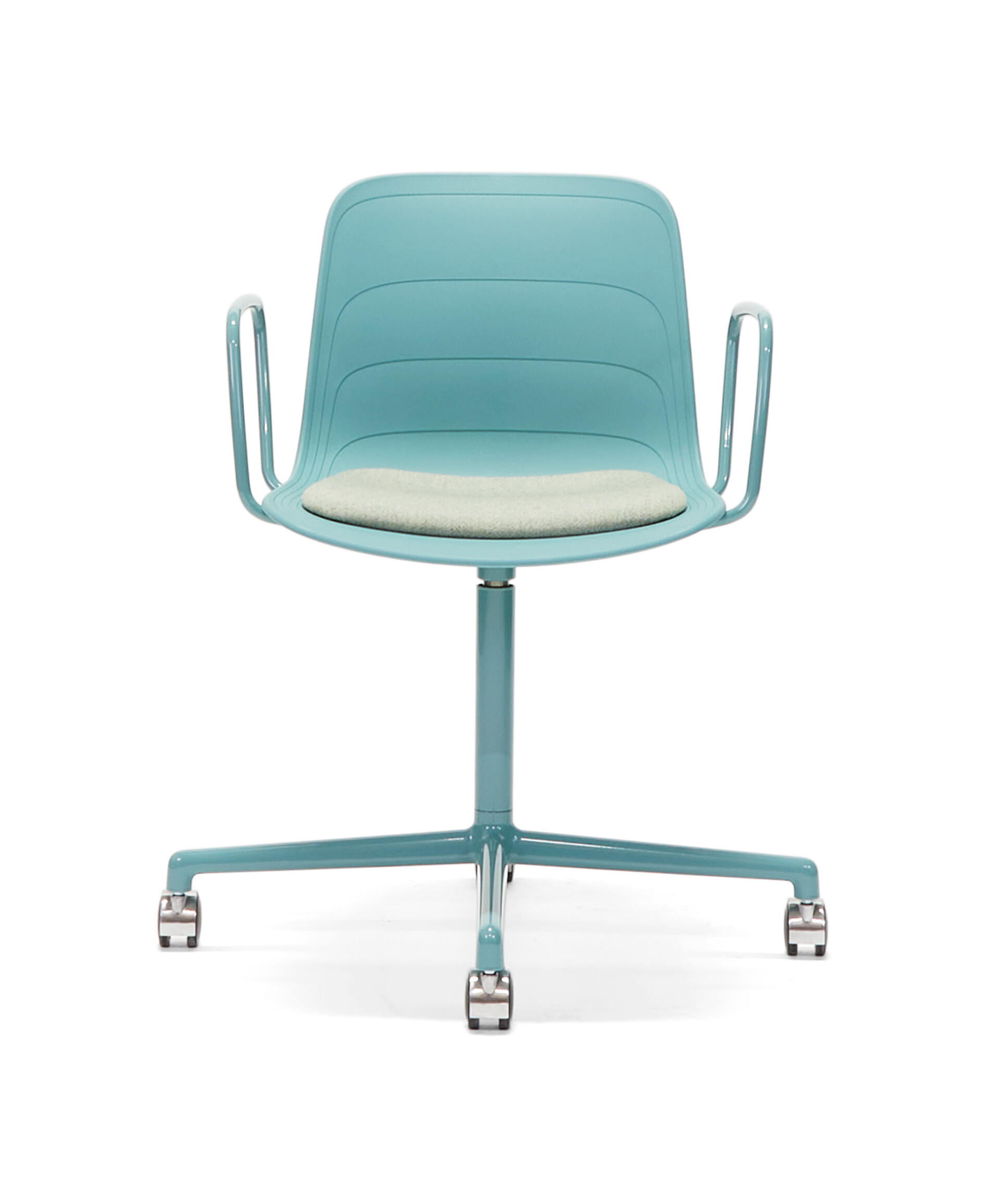

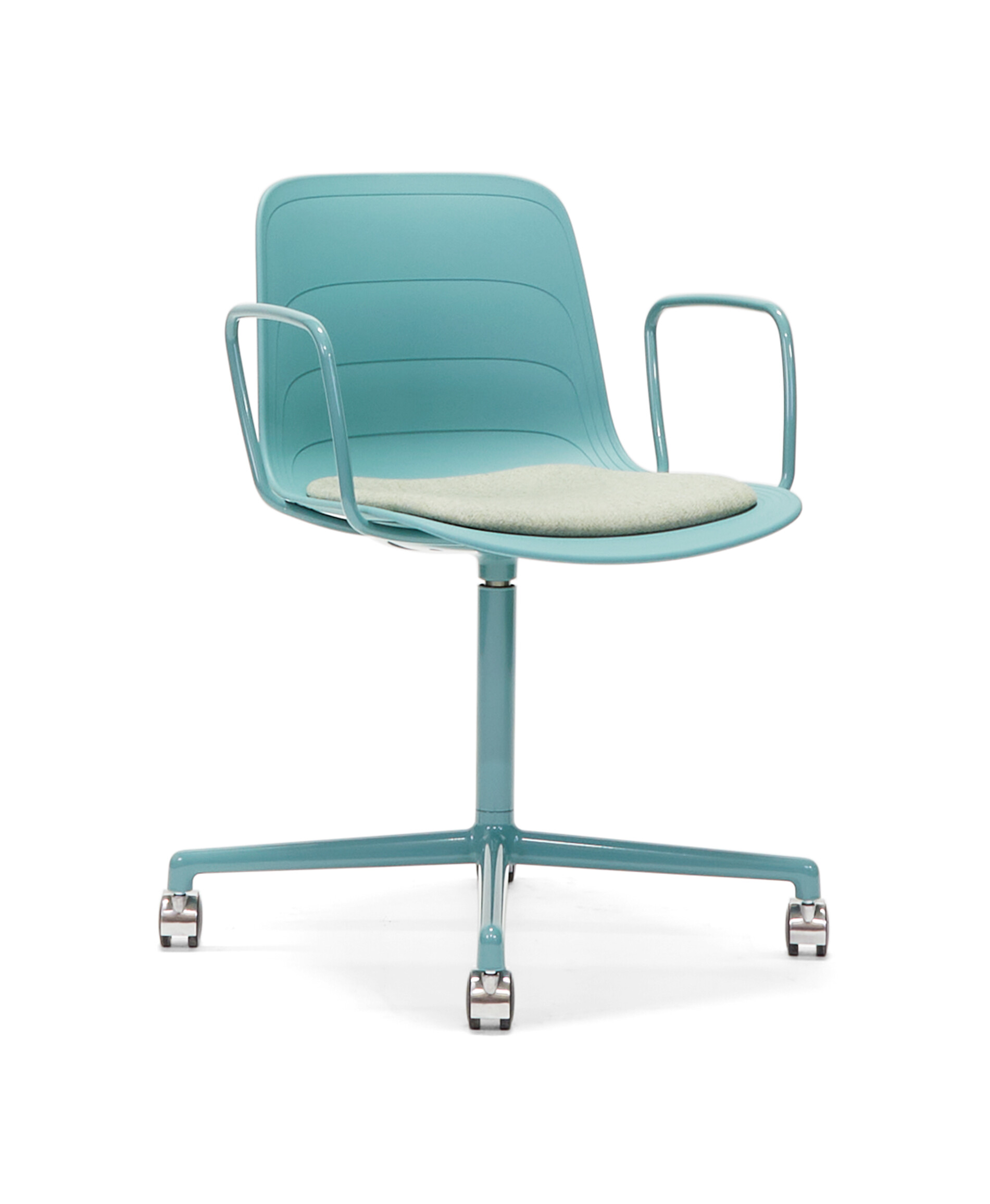

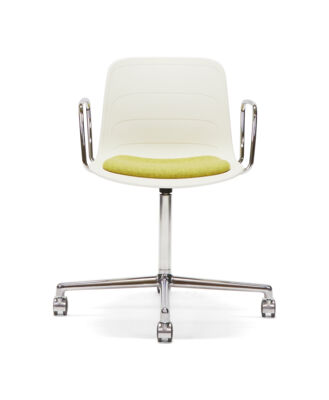

Armchair Swivelbase Caster

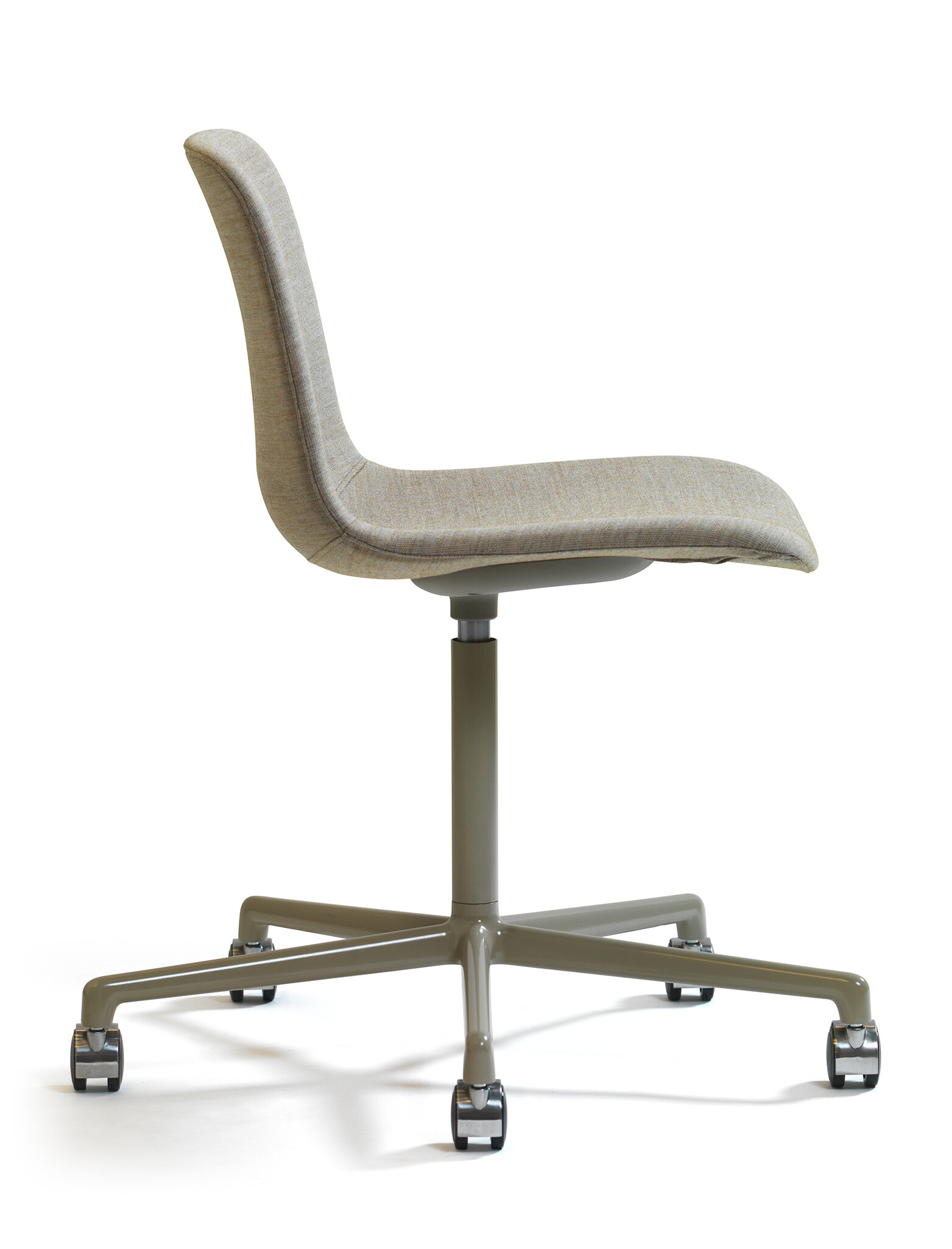

Grade – Chair 5 Feet SwivelbaseGrade – Chair 5 Feet Swivelbase

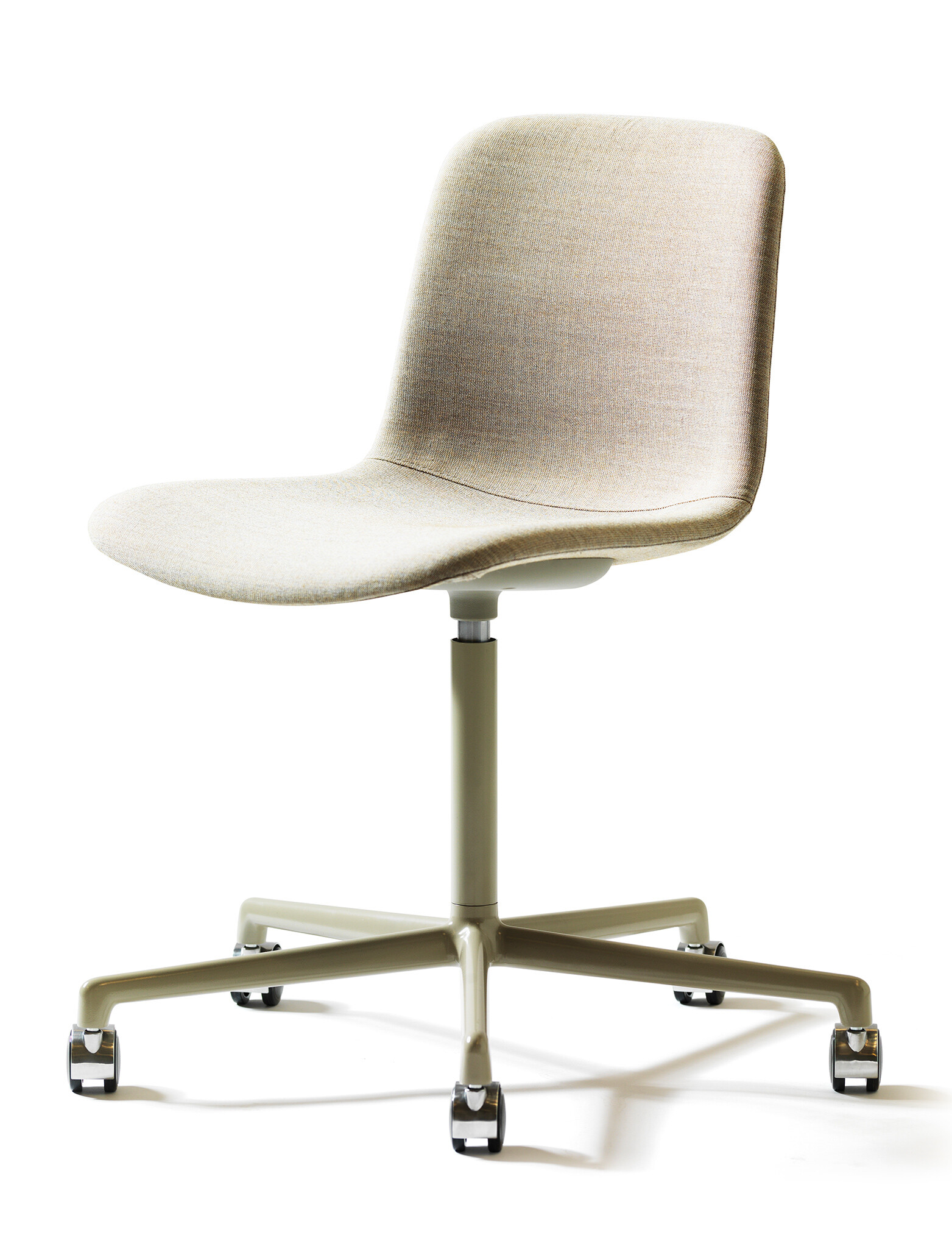

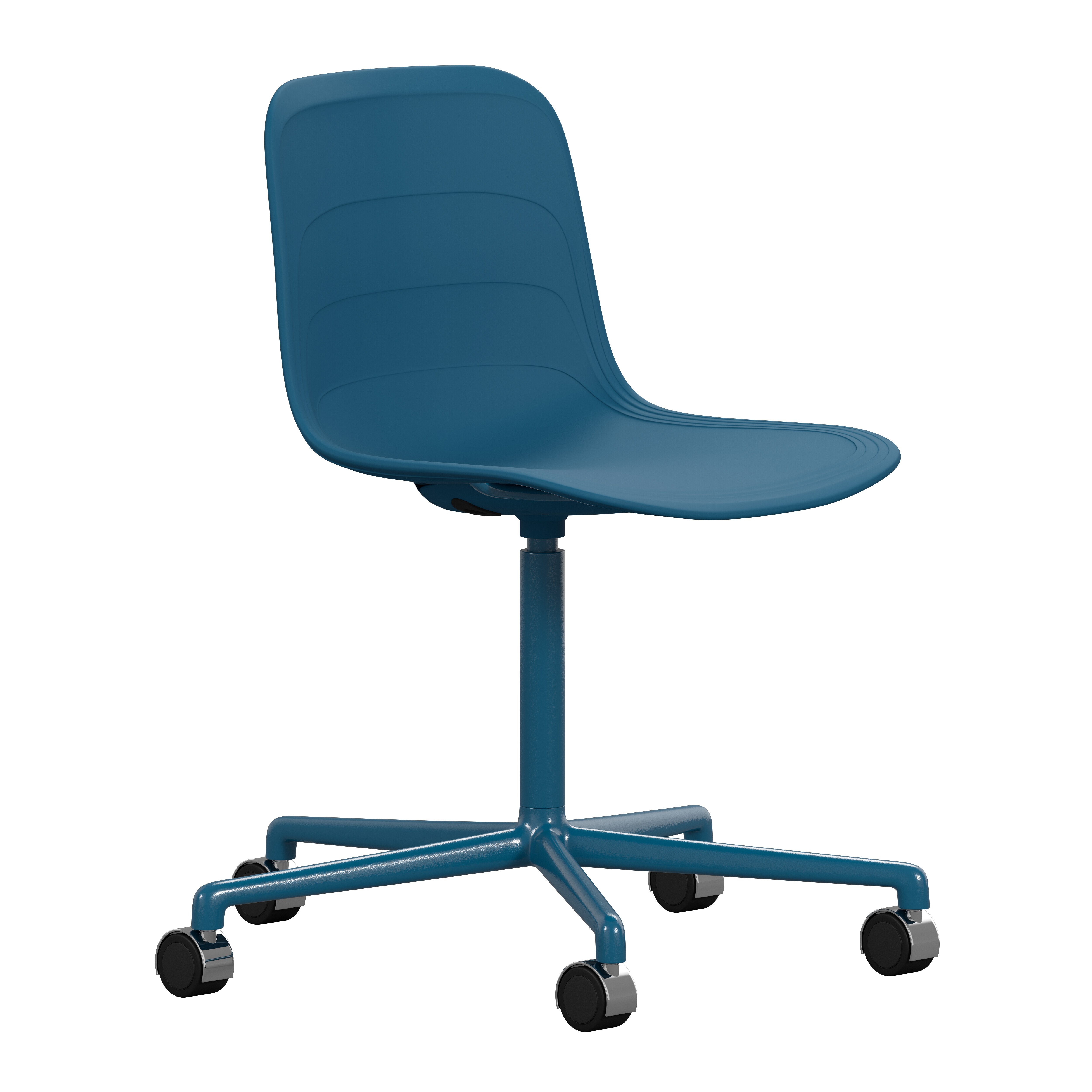

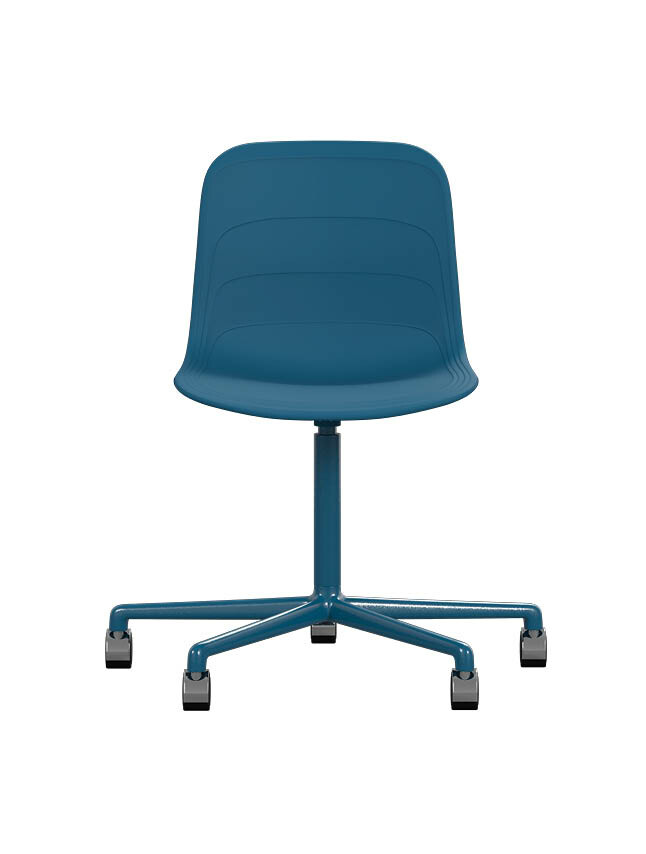

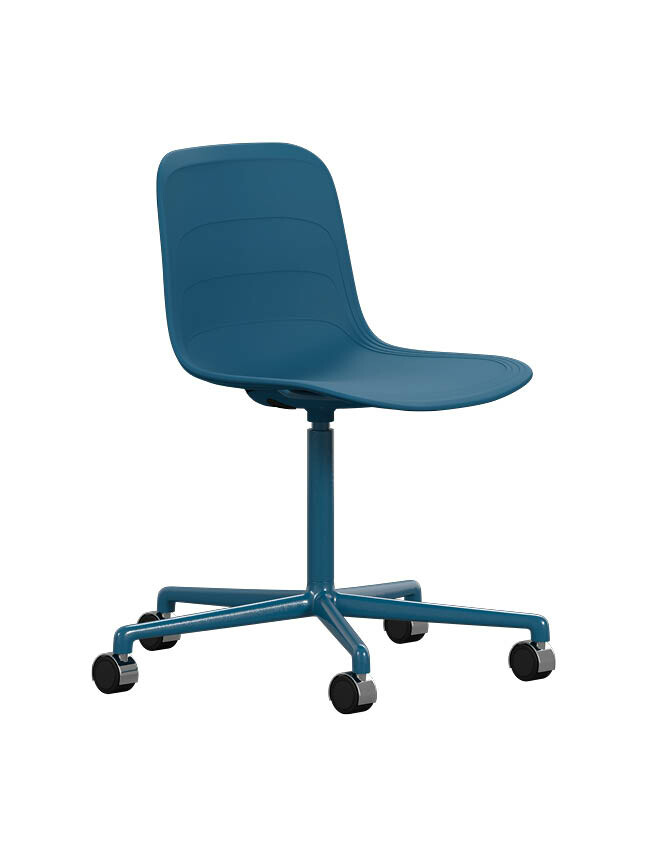

Chair 5 Feet Swivelbase

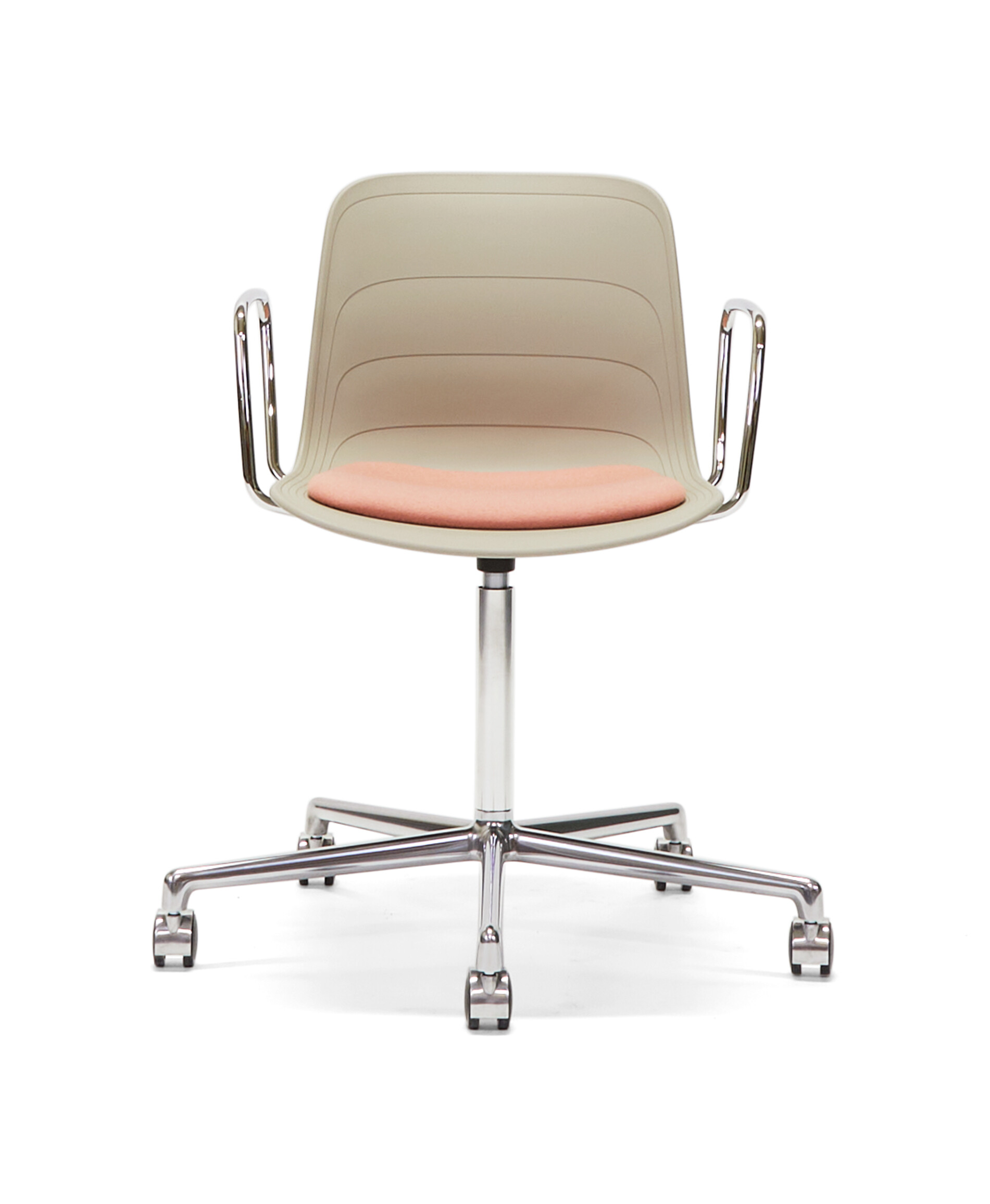

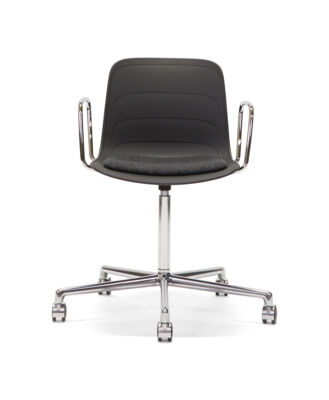

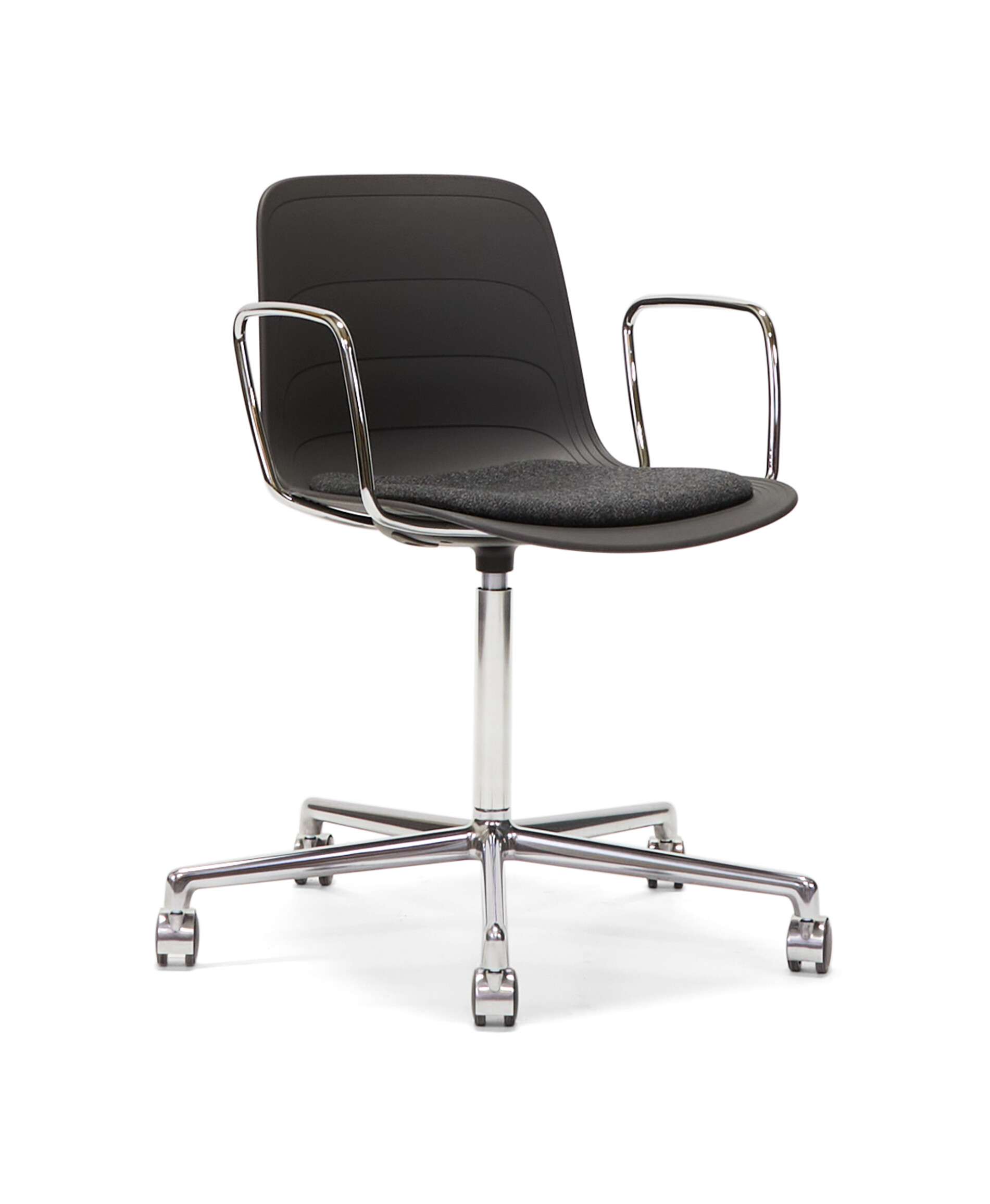

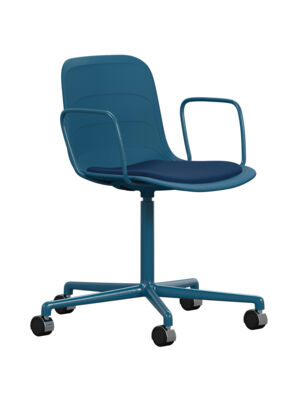

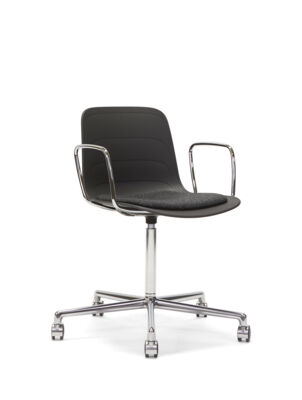

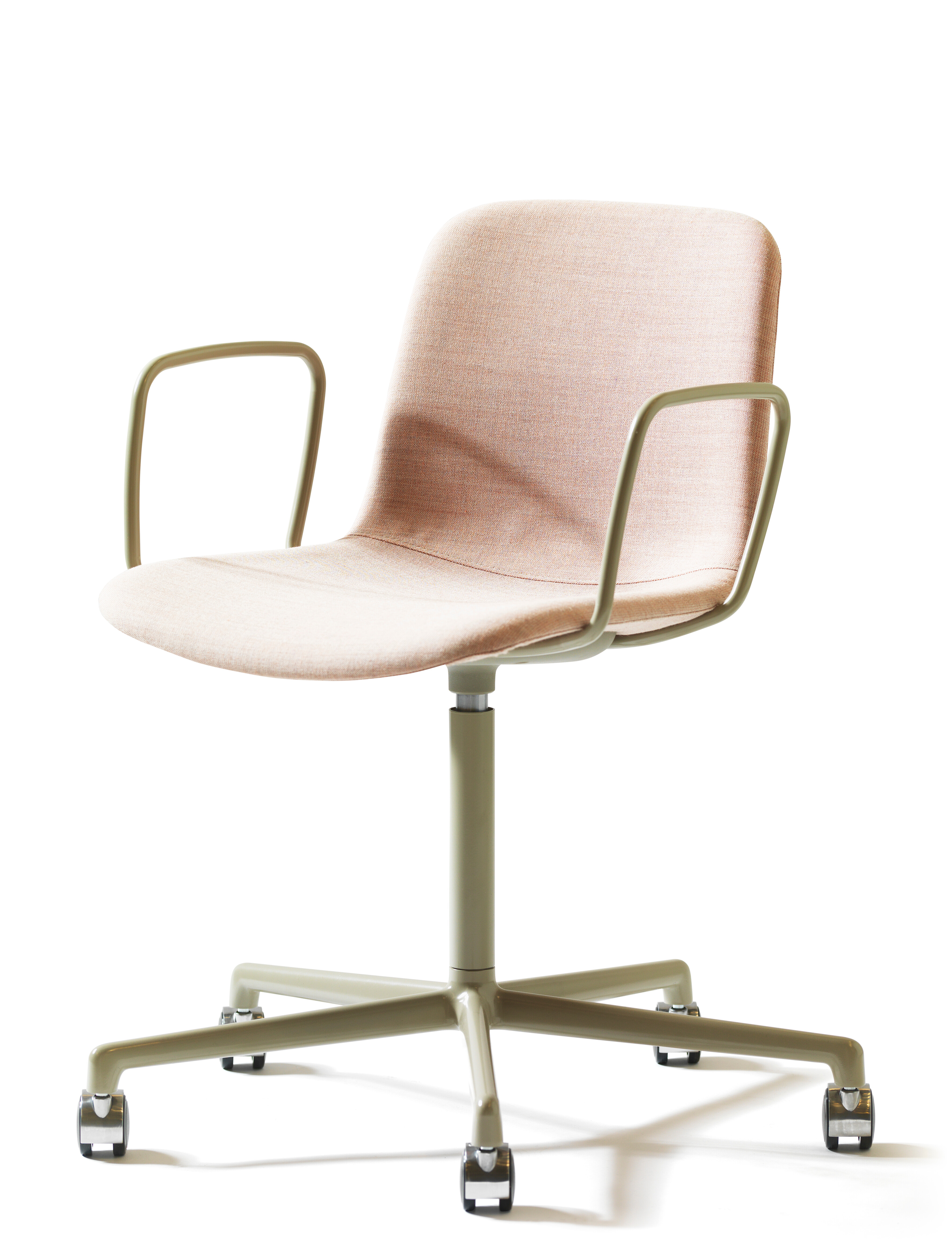

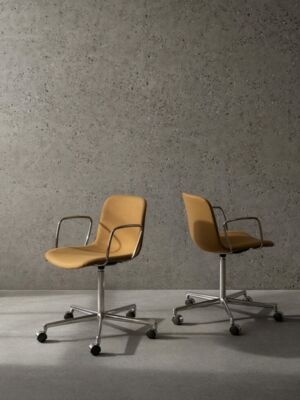

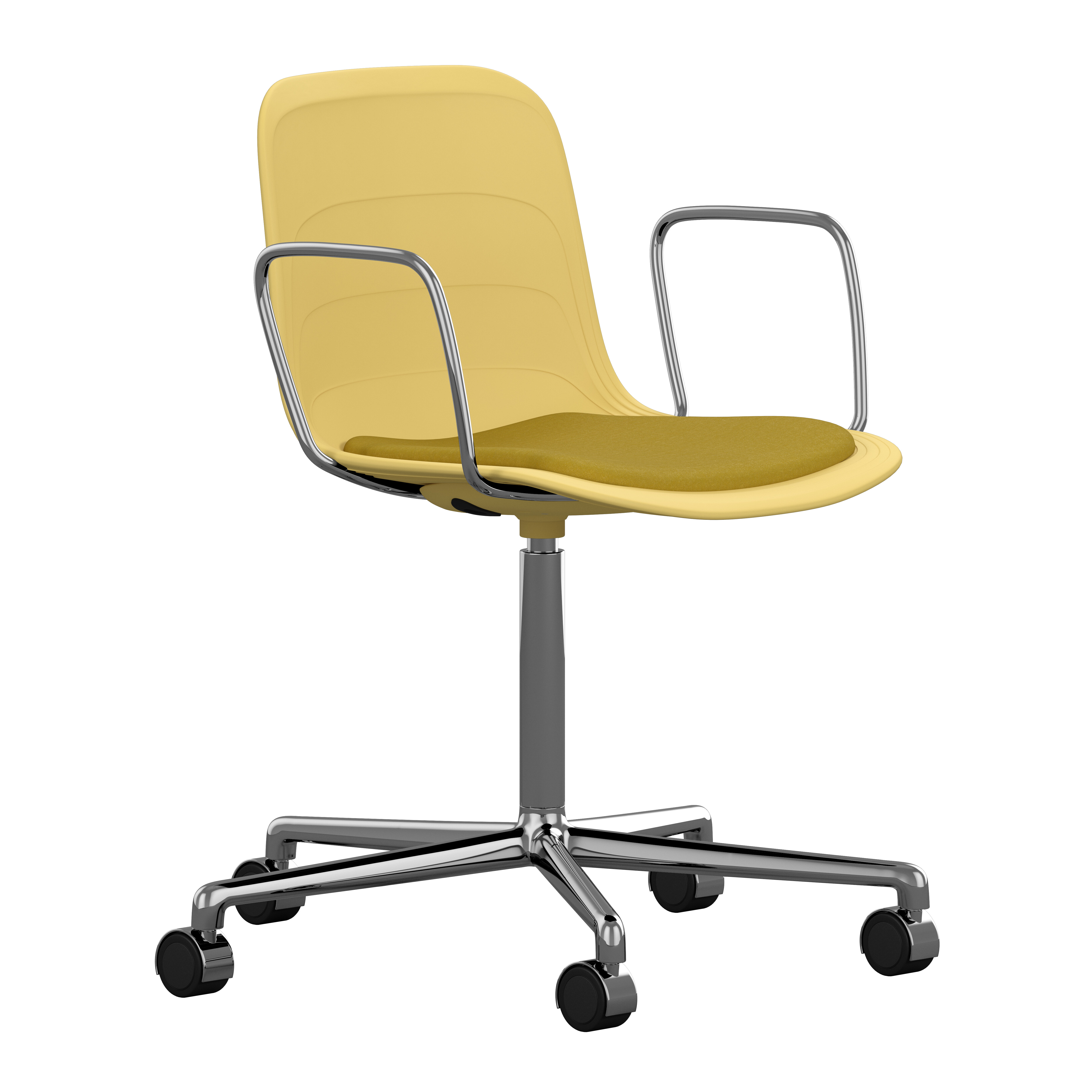

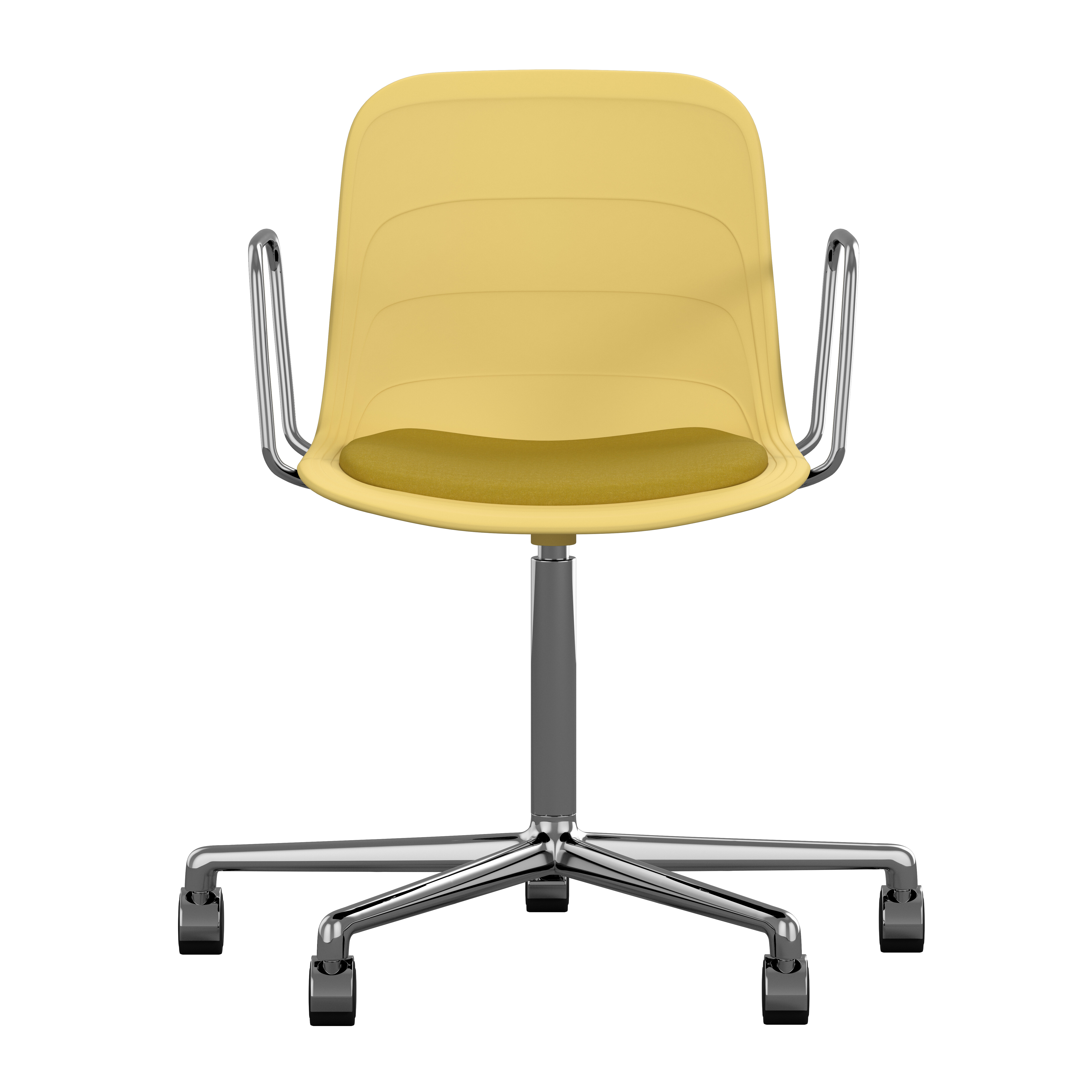

Grade – Armchair 5 Feet SwivelbaseGrade – Armchair 5 Feet Swivelbase

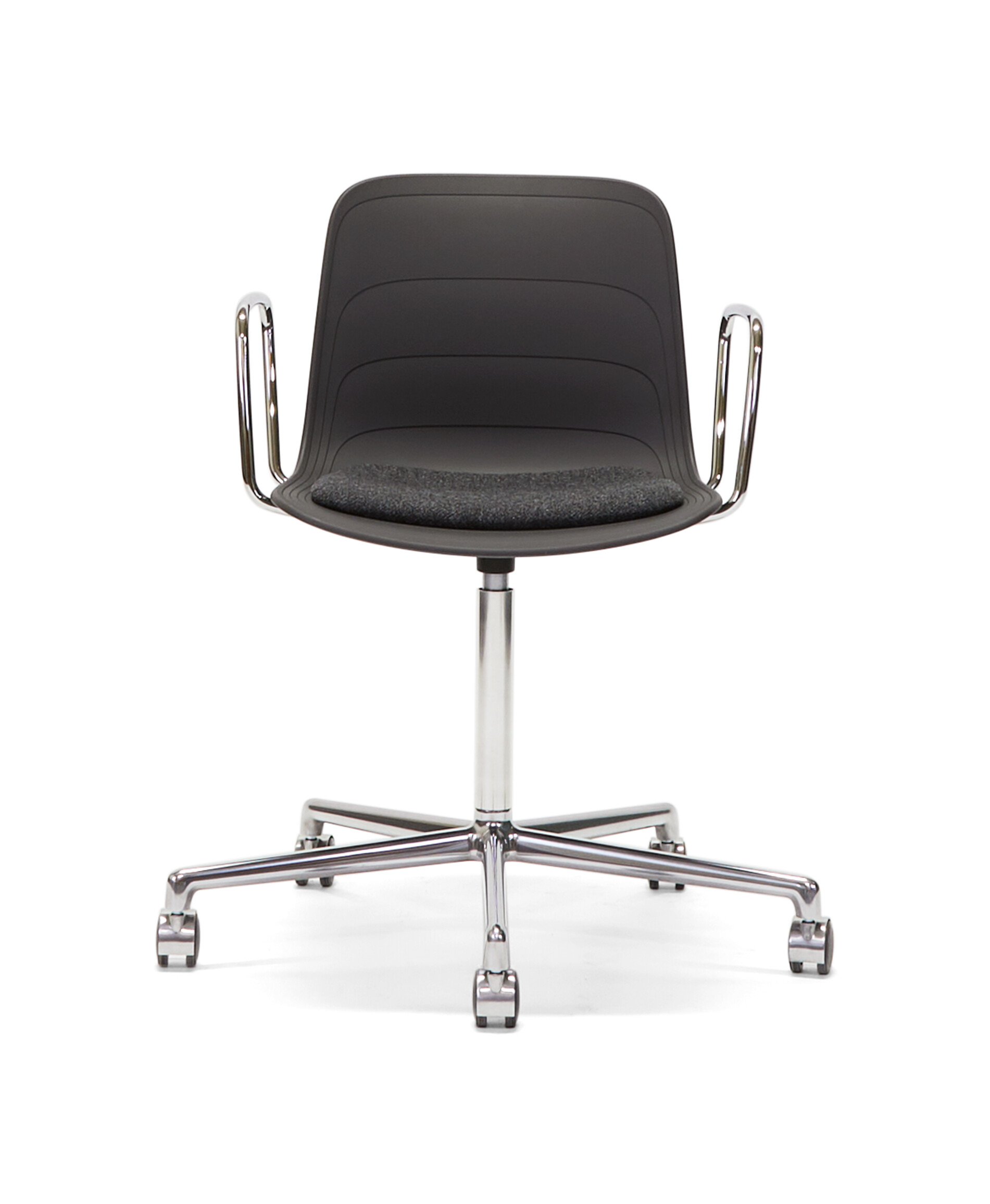

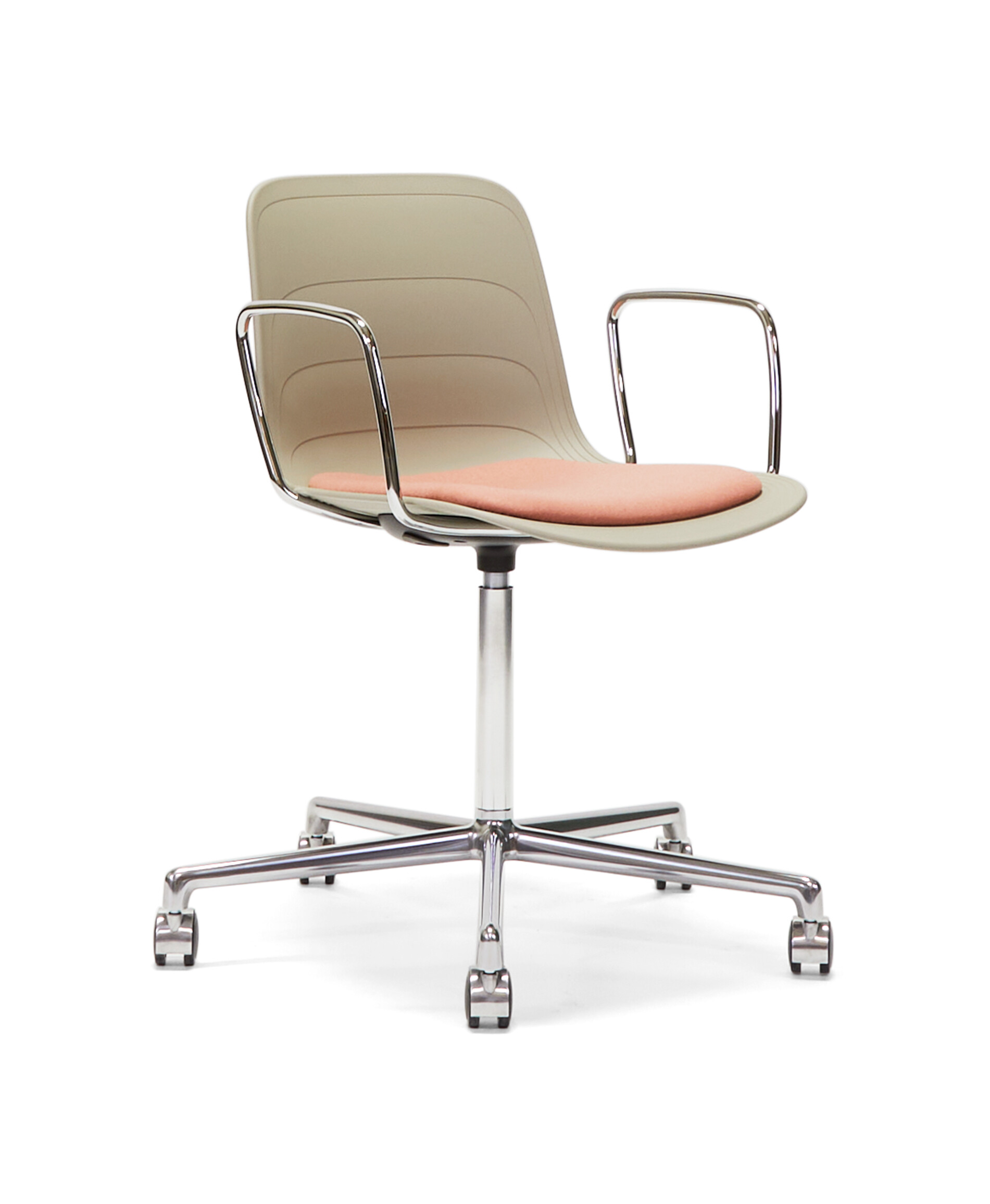

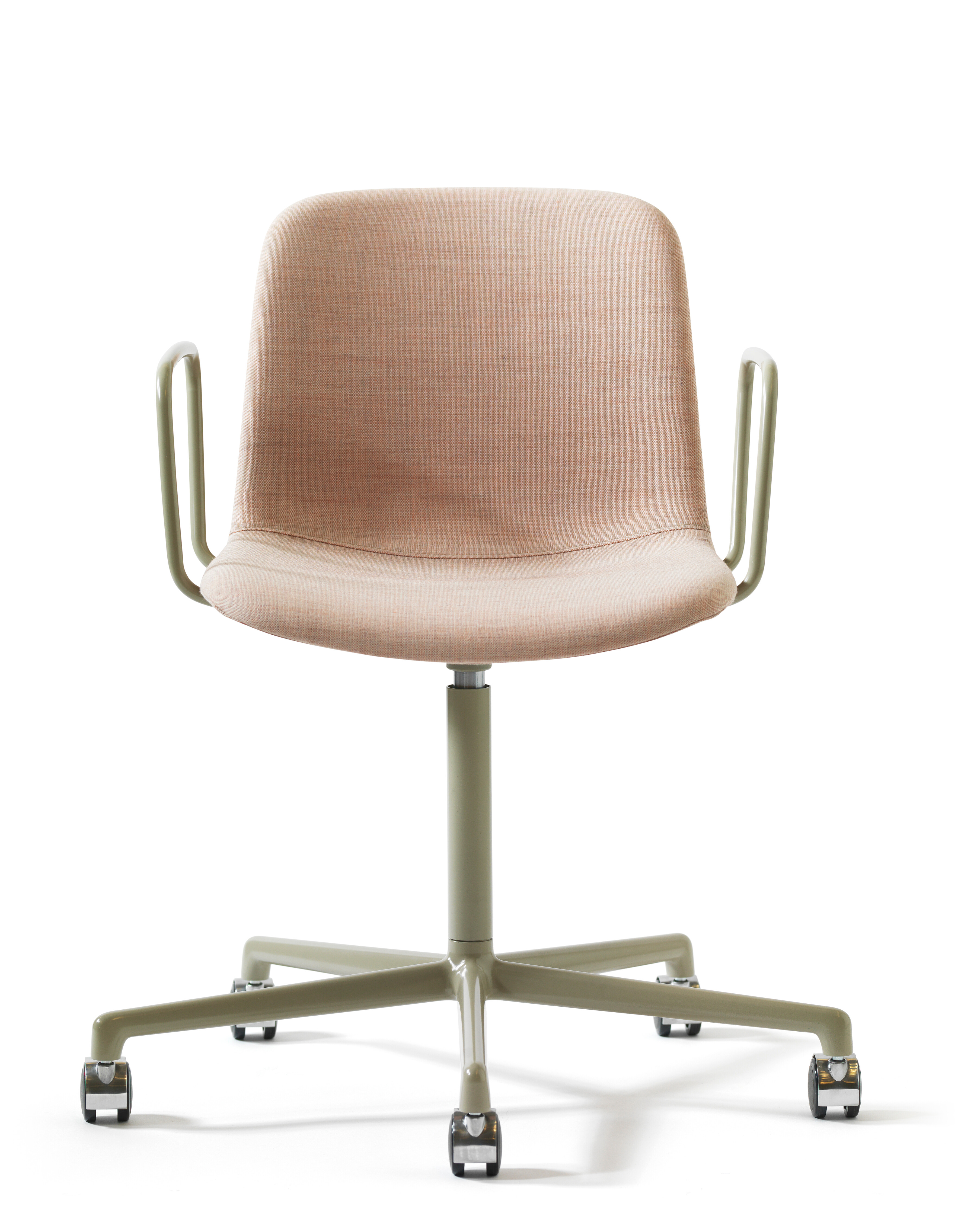

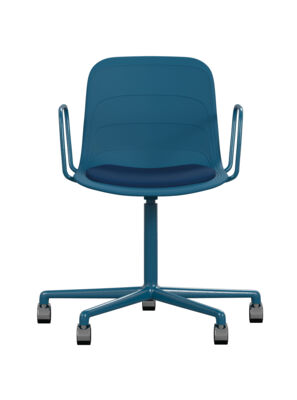

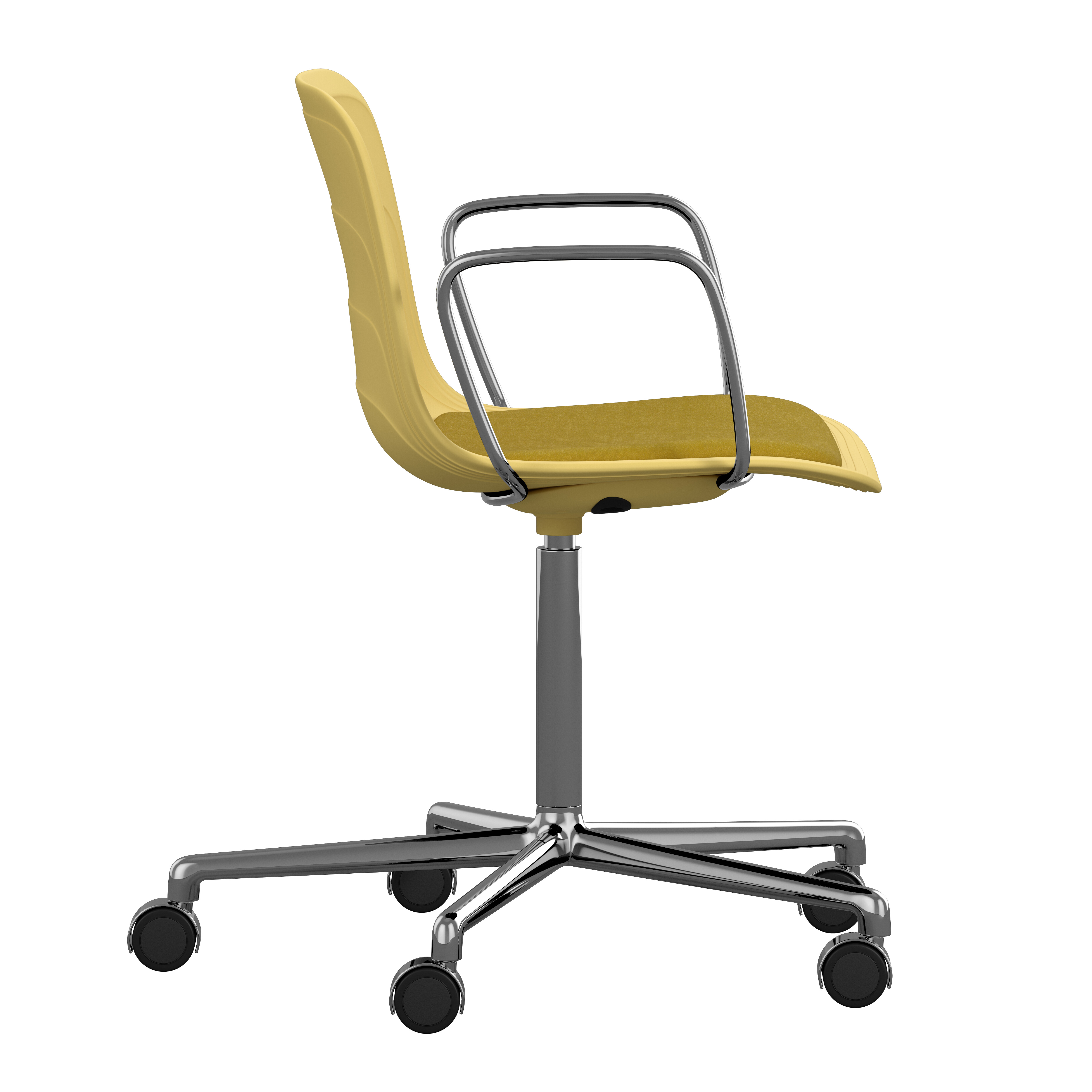

Armchair 5 Feet Swivelbase

View all images

Specifications

CHAIR / ARMCHAIR

Frame of Ø 14 resp. Ø 16 powder coated or chromium plated steel tubing alt. solid ash. When powder coated, the frame matches the color of the seat. Seat shell of recycled polypropylene in white/grey, graphite, beige, blue-green or dark red. Alt. upholstered seat, or fully upholstered seat shell. Armrests with the upper part in polypropylene matching the color of the seat shell.

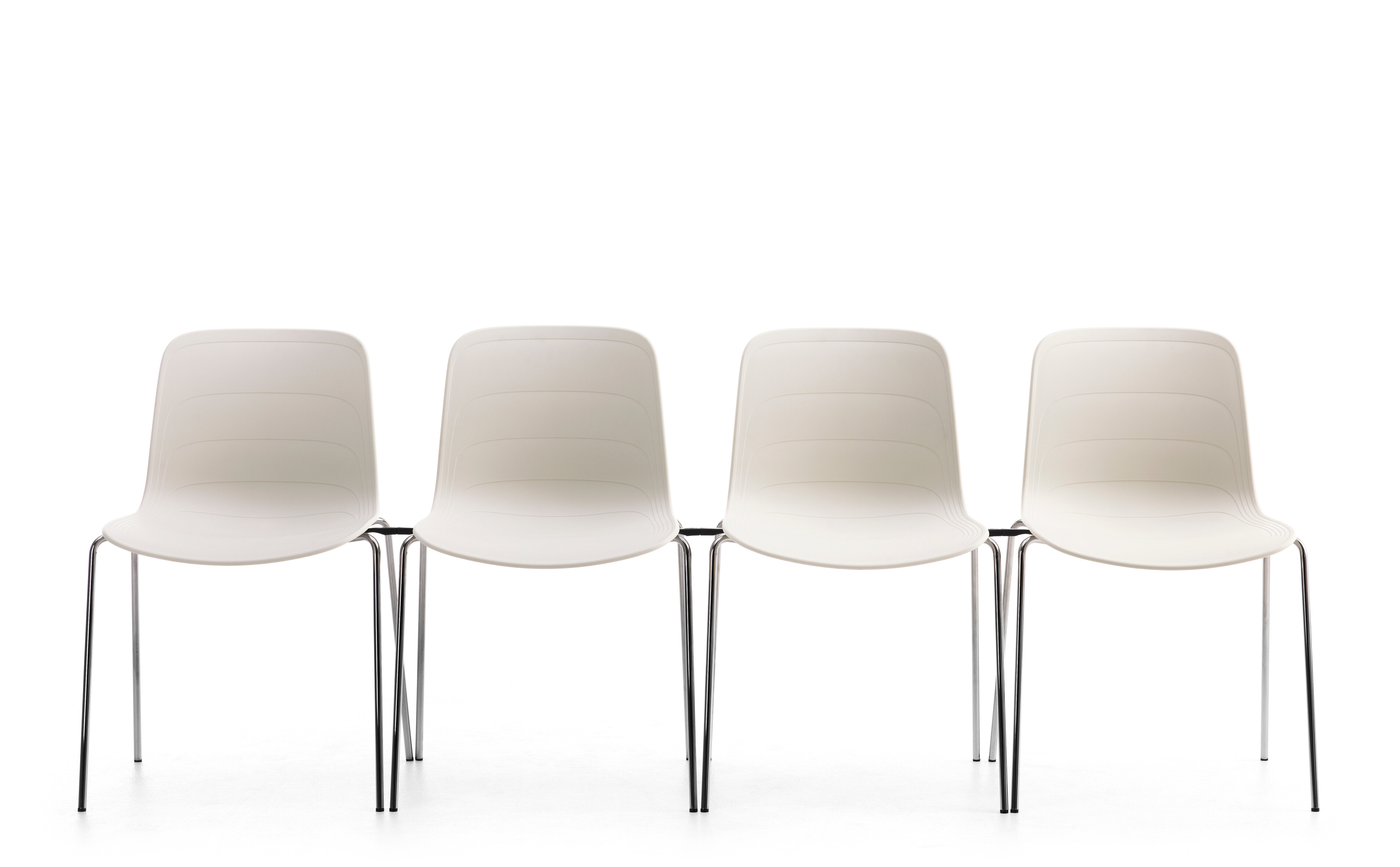

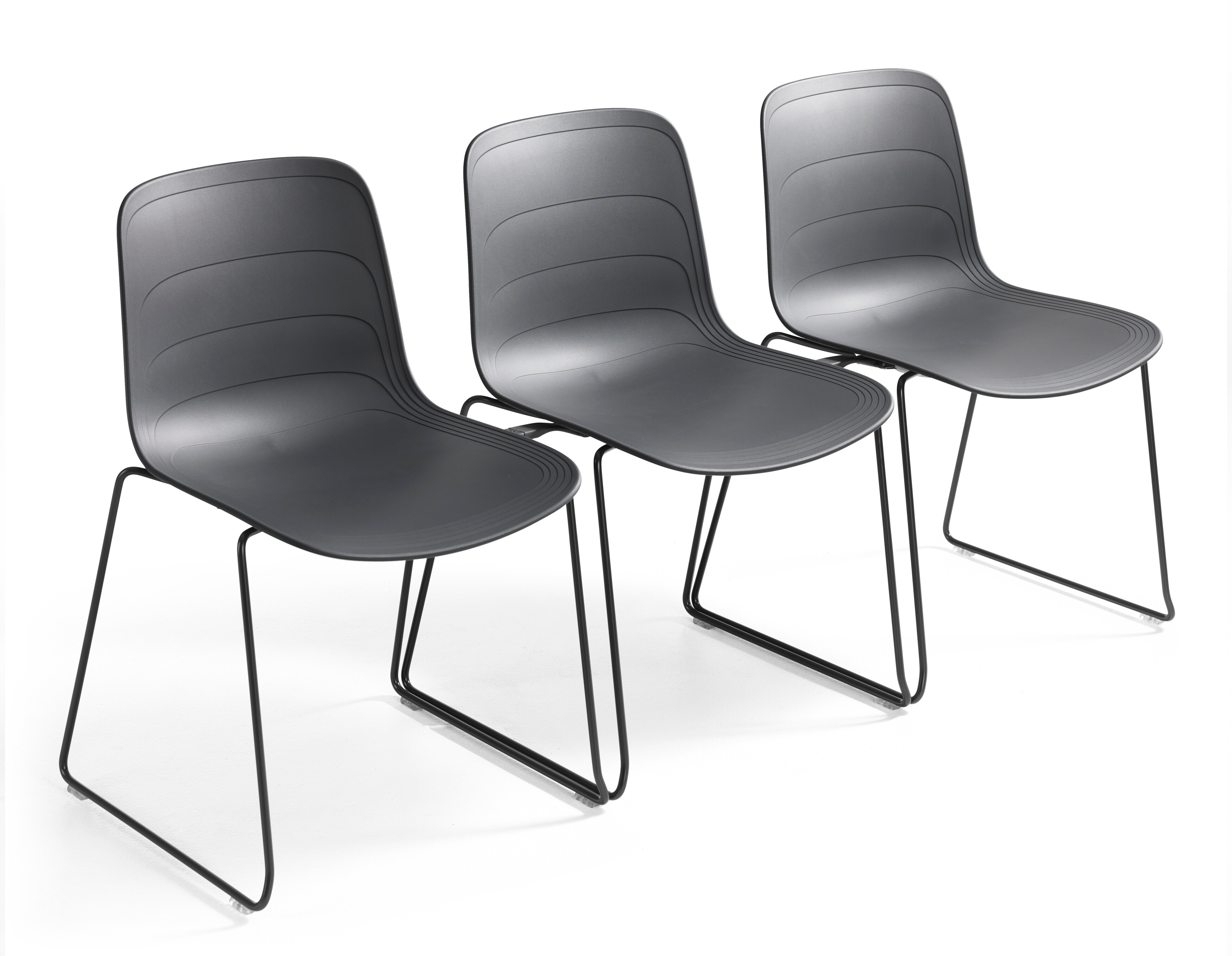

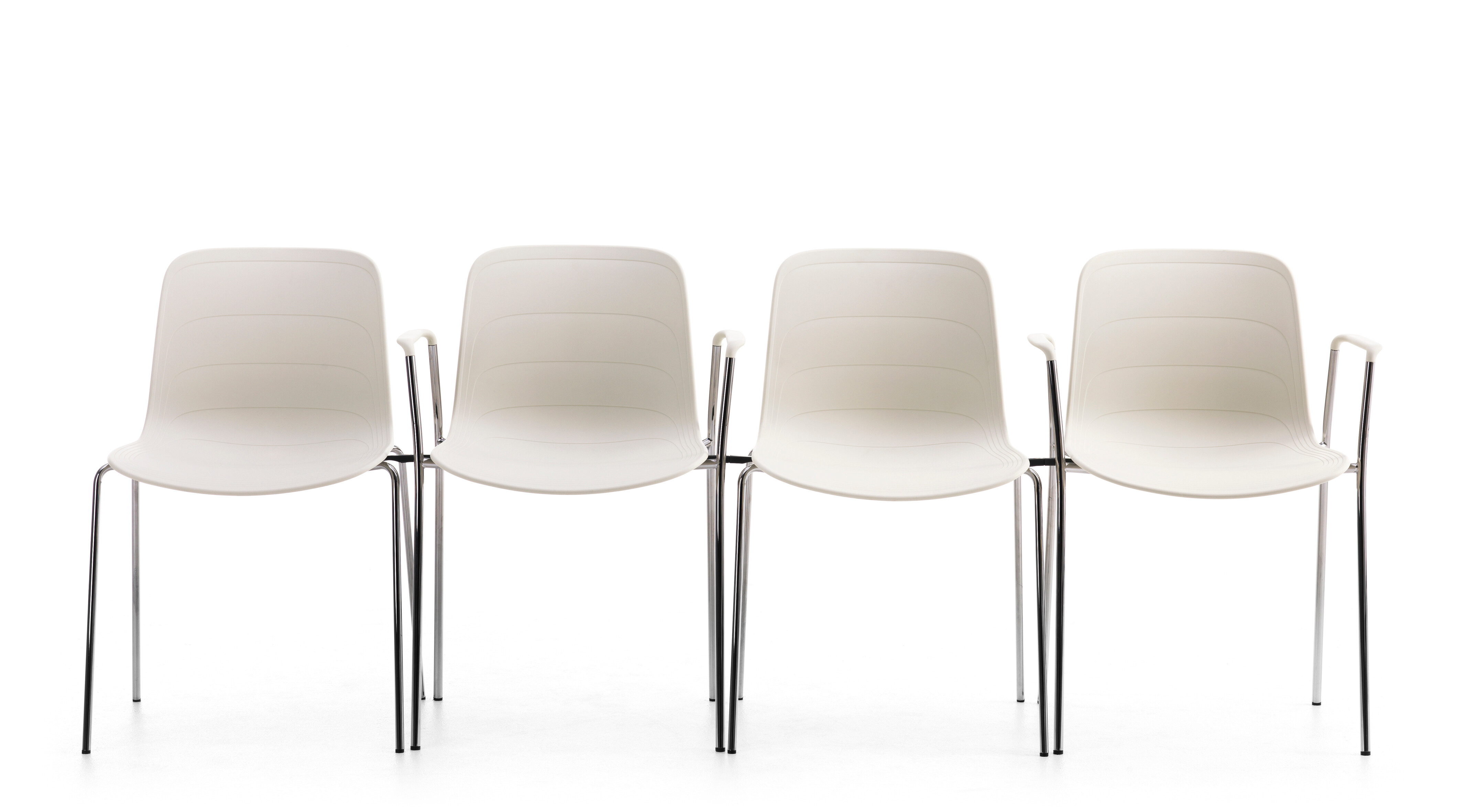

Stackable and linkable.

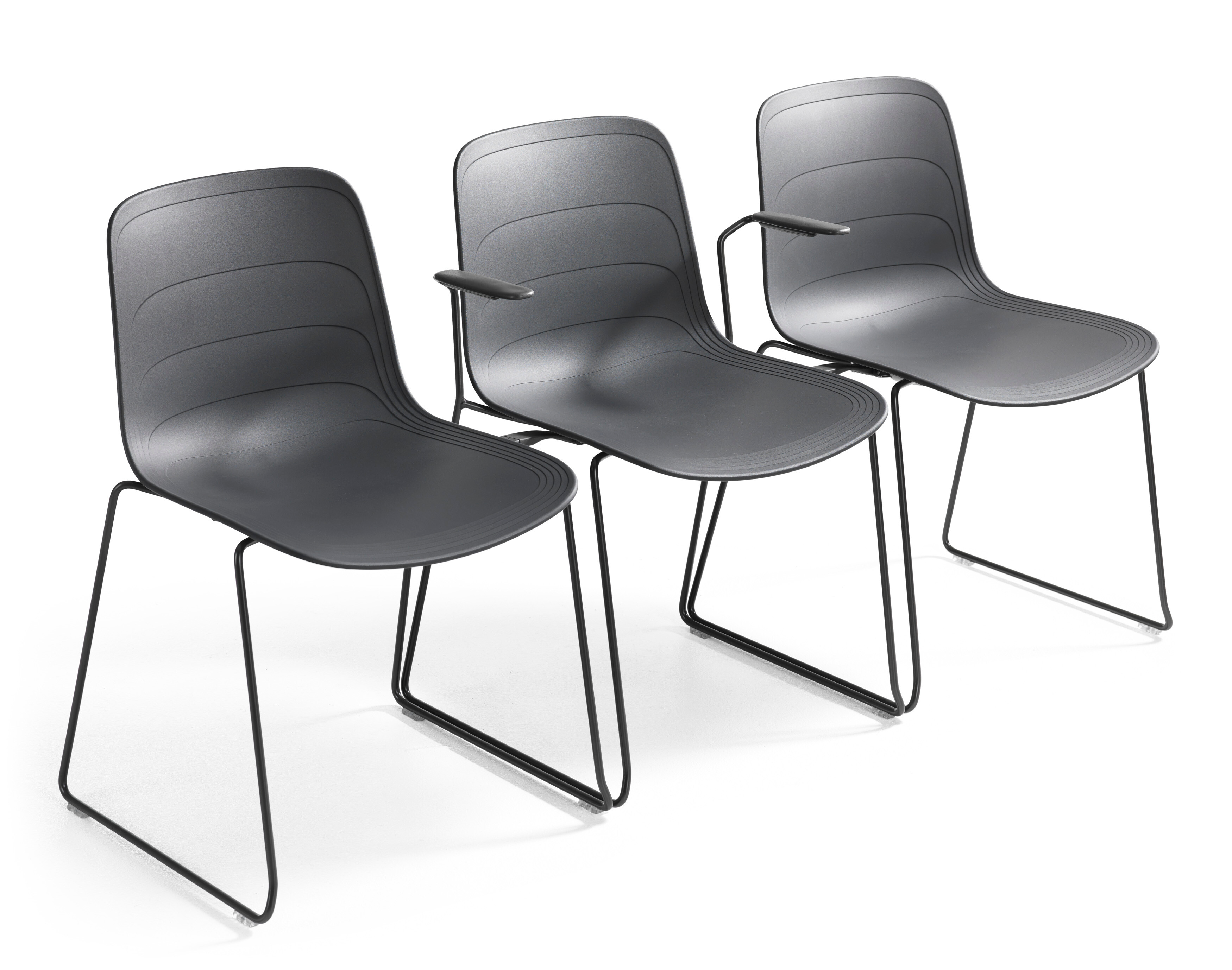

CHAIR/ARMCHAIR SLED BASE

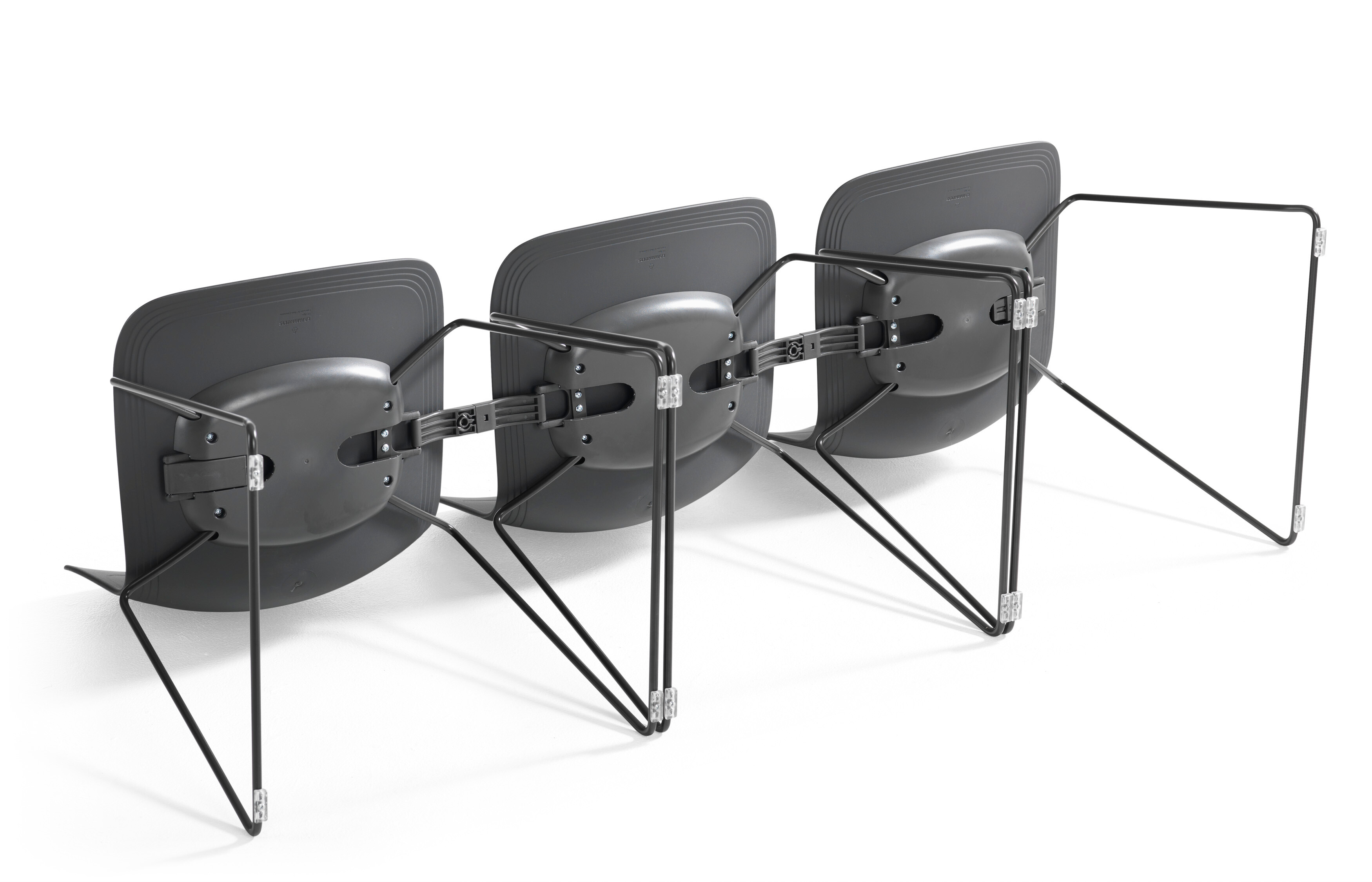

Frame and armrest of Ø11 powder coated or chromium plated solid steel. Seat shell of recycled polypropylene in white/grey, graphite, beige, blue-green or dark red. Alt. upholstered seat or fully upholstered seat shell. The armrests upper part is in polyamide matching the color of the seat shell. The armchair is suspendable with built-in slide protection. Stackable. Linkable chair-chair or chair-armchair.

Stackable and linkable.

Möbelfakta

Möbelfakta applies on Grade with powder coated armrest on swivel base, without casters and black stained wooden legs.

Options/Accessories:
Felt glides
Teflon glides (not for wooden frame)

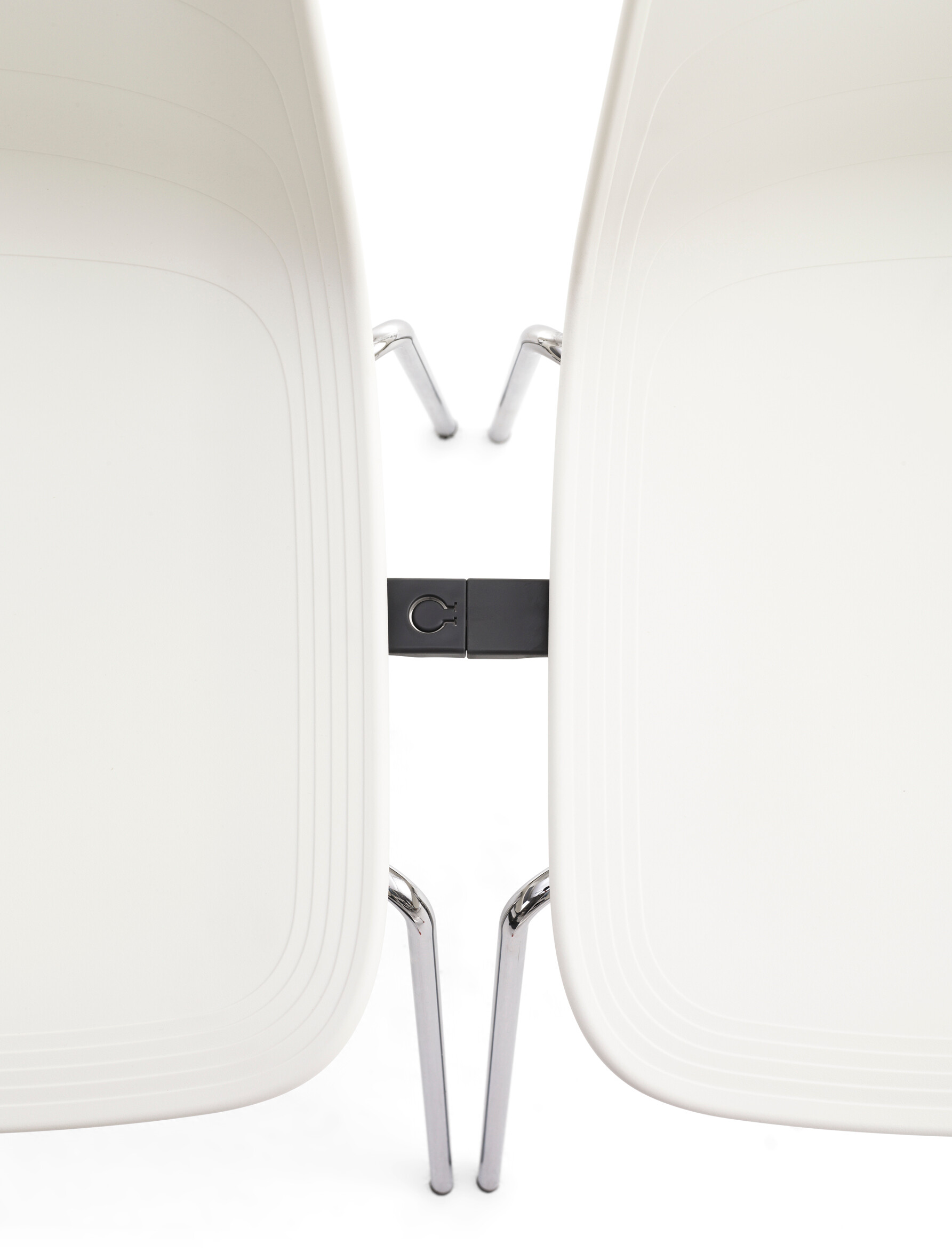

Linking device
Trolley
Casters for 4-feet

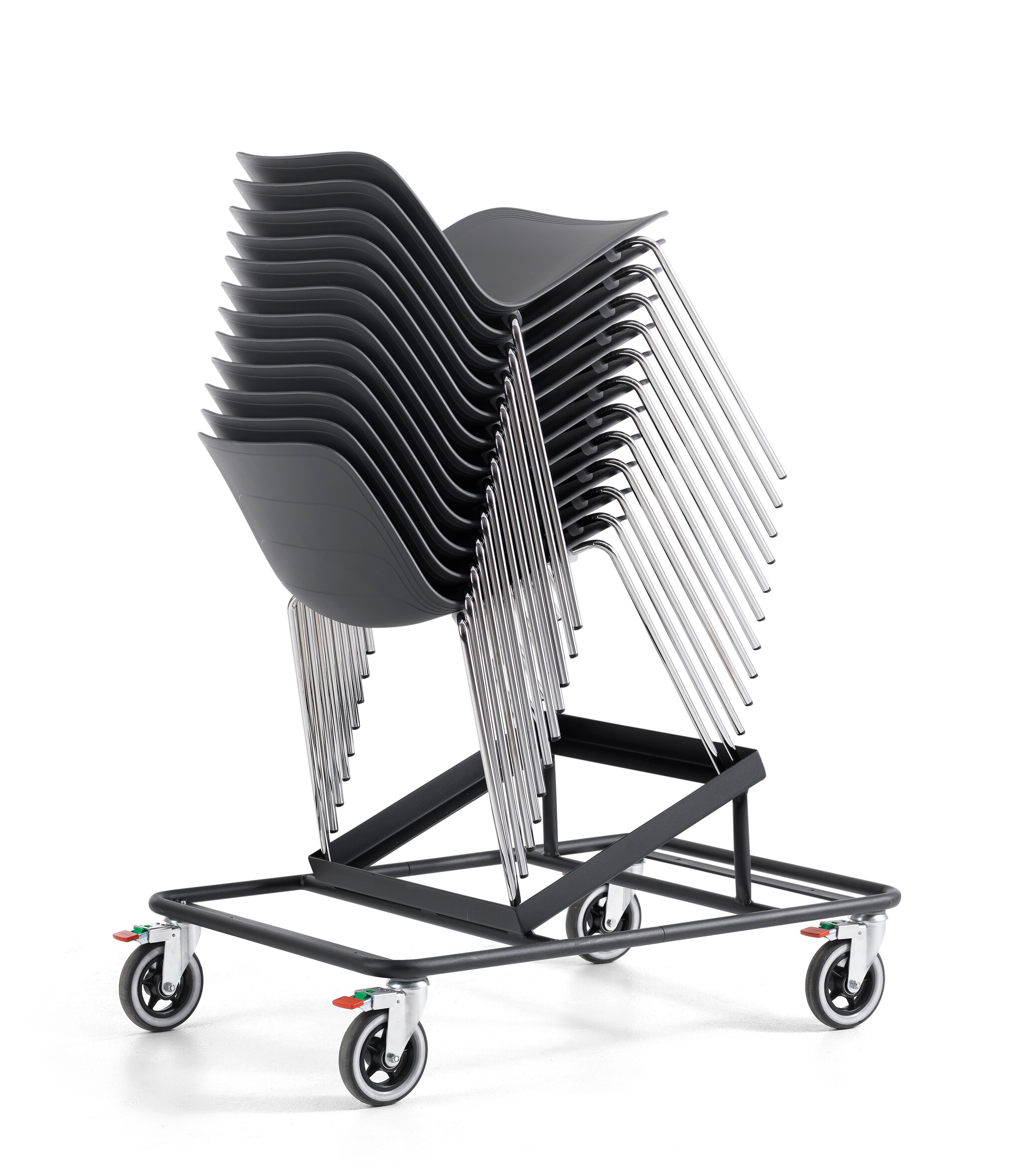

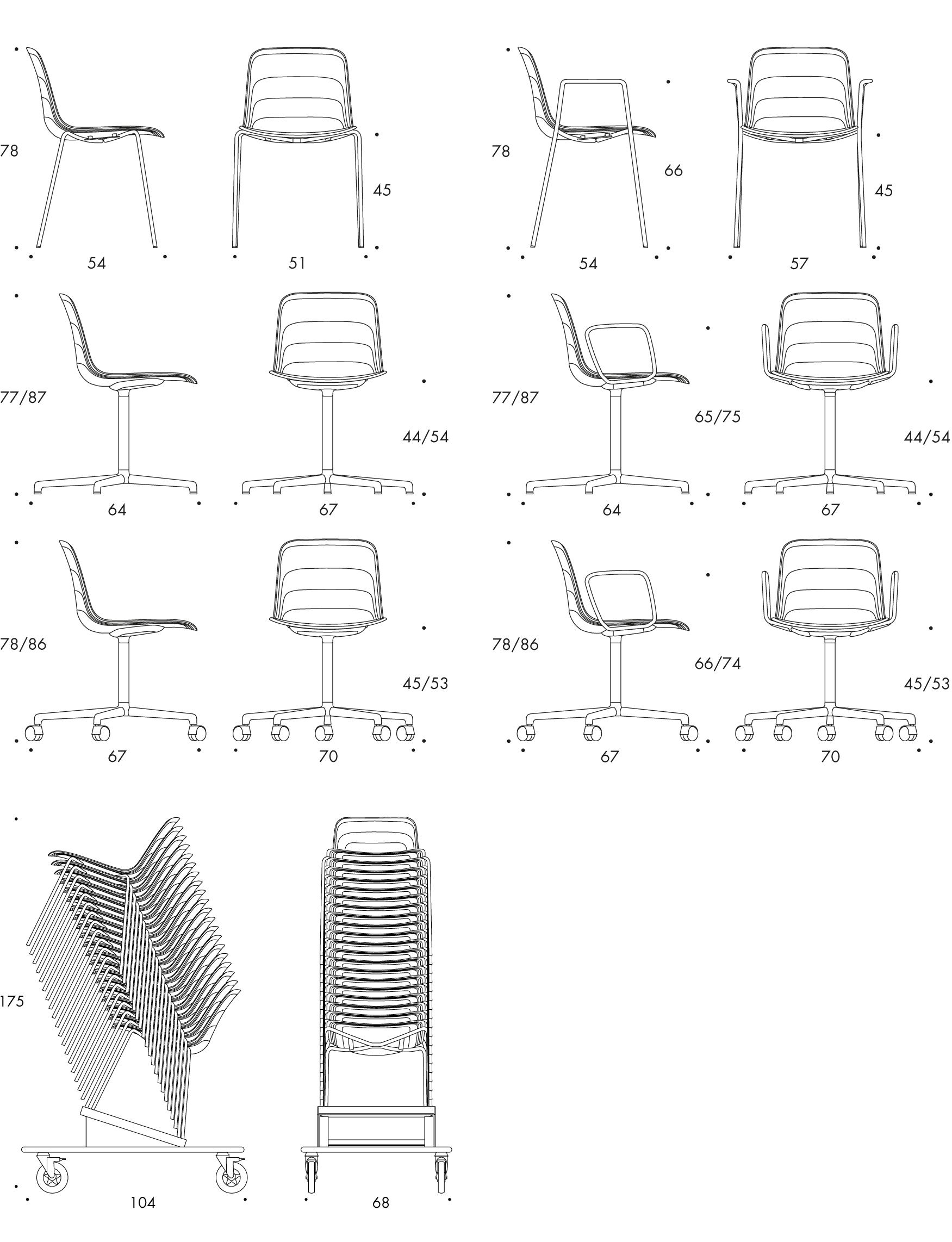

The height measure of 20 unupholstered chairs on a trolley: 175 cm. Width of trolley = width of chair



4-FEET SWIVEL CHAIR/ARMCHAIR
Swivel base, 360°, with foot of cast aluminum and pillar with 40 mm aluminum cover pipe. Optional: casters. Armrest of Ø 16 mm powder coated or chromium plated steel tubing. Seat shell of recycled polypropylene in white/grey, graphite, beige, blue-green or dark red. Alt. upholstered seat, or fully upholstered seat shell. Armrests with the upper part in polypropylene matching the color of the seat shell.

Optional
Casters



CHAIR/ARMCHAIR SLED BASE

Options/Accessories:
Felt glides
Linking device
Transport trolley



5-FEET SWIVEL CHAIR/ARMCHAIR
Height adjustable swivel base, 360°, with foot of cast recycled aluminium incl. casters. Pillar with Ø40 mm recycled aluminium cover pipe. Optional: casters. Armrest of Ø 16 mm powder coated or chromium-plated steel tubing. Seat shell of recycled polypropylene in white/grey, graphite, beige, blue-green or dark red. Alt. upholstered seat, or fully upholstered seat shell. Armrests with the upper part in polypropylene matching the color of the seat shell.



Weight
Chair wooden frame: 4.7 kg
Chair/Armchair 4.5/5.0 kg
Chair/Armchair sled base 6.2/6.7 kg
Chair/Armchair on swivel base: 6.5/8.0 kg
Chair/Armchair on 5-feet swivel base: 7.6/9.1 kg
